Braking System

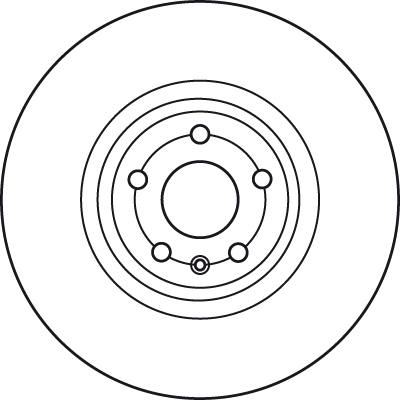

Brake Disc

Name: Brake Disc
Brand: TRW
SKU: DF6041S-TRW
Price: 25800.00 PHP
Availability: InStock

Part No. DF6041S · SKU DF6041S-TRW

Front Axle

₱25,800.00

In stock — available to order

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)	112
Brake Disc Thickness (mm)	30
Brake Disc Type Vented
Centering Diameter (mm)	65
Colour black
Height (mm)	49.6
Minimum thickness (mm)	28
Number of Holes 5
Outer Diameter (mm)	340
Surface Painted
Thread Size 15,3

Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 30, Brake Disc Type Vented, Centering Diameter [mm] 65, Colour black, Height [mm] 49,6, Minimum thickness [mm] 28, Number of Holes 5, Outer Diameter [mm] 340, Surface Painted, Thread Size 15,3
Fits: AUDI

Supplier Cross-References

TEXTAR92160503 FERODODDF1847C1 BREMBO09B03811 TRWDF6041S BOSCH986479464

Interchangeable Part Numbers

A.B.S.17859 A.P.25459 V ATE24013001871 ATE24013002191 BENDIX562508BC BLUE PRINTADV184340 BORG & BECKBBD4624 BOSCH0 986 479 464 BOSCH0 986 AB6 736 Brake ENGINEERINGDI956659S BREMBO09977111 CAR1421433 CARHPD1433 DELPHIBG9054 FEBI BILSTEIN44031 FERODODDF1847 FERODODDF1847C FIRST LINEFBD1700 FREMAXBD-6094 fri.tech.DF1275 FTE9071260 FTE9081235 FTEBS7721 FTEBS7721B GIRLING6060415 HELLA8DD 355 119-681 HELLA8DD 355 121-421 HELLA8DD 355 129-701 Hi-QSD5452 JURID562508JC JURID562508JC-1 KAWE61213 10 LPRA1047V MAGNETI MARELLI360406075000 METELLI231134C METELLI231331C METZGER6110631 MEYLE115 521 0003/PD MEYLE1155210003 MEYLE1835210003PD MGAD1841 MINTEXMDC2546 NK2047162 NK3147162 OPEN PARTSBDR2448.20 OPEN PARTSBDRS2448.25 OPTIMALBS-8970C OPTIMALBS-8970HC OPTIMALBS-8970 PAGID54605 QUINTON HAZELLBDC5707 RAICAMRD01210 REMYRAD1532C sbs18152047162 sbs18153147162 SWAG30 94 4031 TEXTAR92160505 TRISCAN8120291036 TRISCAN8120291036C VAICOV10-80105 WOKINGD61213.10 ZIMMERMANN100332720 ZIMMERMANN100332752

OE Numbers — AUDI

8J0 615 301 G 8J0 615 301

Make	Model	Type / Engine	Years	CC	kW	HP
AUDI	TT (8J3)	1.8 TFSI	2006 – 2015	1798	118	160
AUDI	TT (8J3)	45 TFSI quattro	2006 – 2015	1984	155	211
AUDI	TT (8J3)	45 TFSI	2006 – 2015	1984	155	211
AUDI	TT (8J3)	2.0 TFSI	2006 – 2015	1984	149	203
AUDI	TT (8J3)	2.5 RS quattro	2006 – 2015	2480	250	340
AUDI	TT (8J3)	2.0 TFSI quattro	2006 – 2015	1984	147	200
AUDI	TT (8J3)	2.0 TTS quattro	2006 – 2015	1984	195	265
AUDI	TT (8J3)	2.0 TDI quattro	2006 – 2015	1968	125	170
AUDI	TT (8J3)	2.0 TFSI	2006 – 2015	1984	155	211
AUDI	TT (8J3)	2.0 TTS quattro	2006 – 2015	1984	200	272
AUDI	TT (8J3)	3.2 V6 quattro	2006 – 2015	3189	184	250
AUDI	TT (8J3)	2.0 TFSI	2006 – 2015	1984	147	200
AUDI	TT (8J3)	2.5 RS quattro	2006 – 2015	2480	265	360
AUDI	TT (8J3)	2.0 TFSI quattro	2006 – 2015	1984	155	211
AUDI	TT Roadster (8J9)	3.2 V6 quattro	2007 – 2014	3189	184	250
AUDI	TT Roadster (8J9)	2.0 TTS quattro	2007 – 2014	1984	200	272
AUDI	TT Roadster (8J9)	2.0 TFSI	2007 – 2014	1984	147	200
AUDI	TT Roadster (8J9)	1.8 TFSI	2007 – 2014	1798	118	160
AUDI	TT Roadster (8J9)	2.0 TDI quattro	2007 – 2014	1968	125	170
AUDI	TT Roadster (8J9)	2.0 TTS quattro	2007 – 2014	1984	195	265
AUDI	TT Roadster (8J9)	2.0 TFSI quattro	2007 – 2014	1984	147	200
AUDI	TT Roadster (8J9)	2.5 RS quattro	2007 – 2014	2480	265	360
AUDI	TT Roadster (8J9)	2.5 RS quattro	2007 – 2014	2480	250	340
AUDI	TT Roadster (8J9)	2.0 TFSI quattro	2007 – 2014	1984	155	211
AUDI	TT Roadster (8J9)	2.0 TFSI	2007 – 2014	1984	155	211
