Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF6060S · SKU DF6060S-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

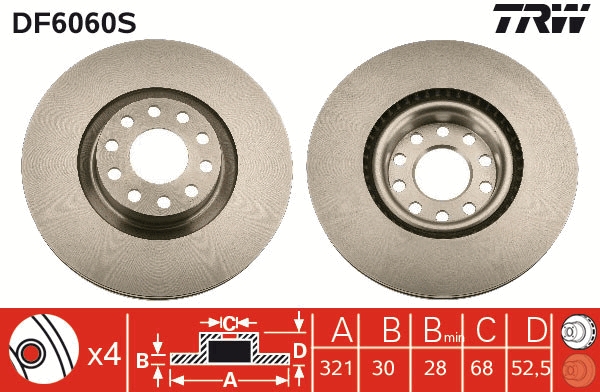

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)30
Brake Disc Type Vented
Centering Diameter (mm)68
Colour black
Height (mm)52.5
Minimum thickness (mm)28
Number of Holes 5
Outer Diameter (mm)321
Surface Painted
Test Mark E1 90R-02 C0176/0655
Thread Size 15,3
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 30, Brake Disc Type Vented, Centering Diameter [mm] 68, Colour black, Height [mm] 52,5, Minimum thickness [mm] 28, Number of Holes 5, Outer Diameter [mm] 321, Surface Painted, Test Mark E1 90R-02 C0176/0655, Thread Size 15,3
Fits: AUDI

Interchangeable Part Numbers

A.B.S.17239 AKEBONOBN-0602E AKEBONOBN-0602 APECDSK2631 ATE24013001741 BLUE PRINTADV1843101 BORG & BECKBBD4733 Brake ENGINEERINGDI956927S BREMBO09.B440.10 CAR1421286 FEBI BILSTEIN44021 FERODODDF1705 FERODODDF17051 FERODODDF1705C1 FERODODDF1983C FERODODDF1983C1 FREMAXBD-4086 fri.tech.DF1290 FTE9071357 FTE9081238 FTEBS7705 FTEBS7705B HELLA 8DD 355113-501 HELLA8DD355113501 HELLA 8DD 355122-862 HELLA8DD355122862 HELLA 8DD 355128-661 HELLA8DD355128661 ICER78BD4086-2 JURID562890JC-1 LPRA1046V MEYLE 115 5211075/PD MEYLE1155211075PD MEYLE 115 5211075 MEYLE1155211075 MINTEXMDC2282 NK2047107 NK2047140 NK3147140 NK3447107 OPTIMALBS-7540C OPTIMALBS-7540 PAGID54547 PAGID54547PRO PAGID65003 PILENGAV237 RAICAMRD01190 REMSA61987.10 REMSA673010 REMYRAD1778C ROULUNDS RUBBERWD02120 sbs18152047107 sbs18152047140 sbs18153147140 sbs18153447107 SWAG 30 944021 SWAG30944021 TEXTAR92154703 TEXTAR92154705 TEXTAR92154710 TRISCAN8120291023 TRISCAN8120291023C WOKINGD61987.10 ZIMMERMANN100.3324.52 ZIMMERMANN100332420 ZIMMERMANN100332450

OE Numbers — AUDI 4B3 615

301

OE Numbers — AUDI

4B3615301
MakeModelType / Engine YearsCCkWHP
AUDI A6 C5 (4B2, 4B4) 2.7 T quattro 1997 – 2005 2671 184 250
AUDI A6 C5 (4B2, 4B4) 1.8 T 1997 – 2005 1781 132 180
AUDI A6 C5 (4B2, 4B4) S6 quattro 1997 – 2005 4172 250 340
AUDI A6 C5 (4B2, 4B4) 2.5 TDI 1997 – 2005 2496 132 180
AUDI A6 C5 (4B2, 4B4) 2.5 TDI quattro 1997 – 2005 2496 132 180
AUDI A6 C5 (4B2, 4B4) 1.9 TDI 1997 – 2005 1896 85 115
AUDI A6 C5 (4B2, 4B4) 1.8 1997 – 2005 1781 85 116
AUDI A6 C5 (4B2, 4B4) 2.8 1997 – 2005 2771 132 180
AUDI A6 C5 (4B2, 4B4) 2.8 1997 – 2005 2771 140 190
AUDI A6 C5 (4B2, 4B4) 2.4 1997 – 2005 2393 115 156
AUDI A6 C5 (4B2, 4B4) 2.0 1997 – 2005 1984 96 130
AUDI A6 C5 (4B2, 4B4) 3.0 1997 – 2005 2976 162 220
AUDI A6 C5 (4B2, 4B4) 3.0 quattro 1997 – 2005 2976 162 220
AUDI A6 C5 (4B2, 4B4) 2.4 1997 – 2005 2393 125 170
AUDI A6 C5 (4B2, 4B4) 2.4 quattro 1997 – 2005 2393 125 170
AUDI A6 C5 (4B2, 4B4) 2.5 TDI 1997 – 2005 2496 114 155
AUDI A6 C5 (4B2, 4B4) 1.8 T quattro 1997 – 2005 1781 110 150
AUDI A6 C5 (4B2, 4B4) 1.9 TDI 1997 – 2005 1896 96 130
AUDI A6 C5 (4B2, 4B4) RS6 quattro 1997 – 2005 4172 331 450
AUDI A6 C5 (4B2, 4B4) 2.4 1997 – 2005 2393 120 163
AUDI A6 C5 (4B2, 4B4) 2.4 quattro 1997 – 2005 2393 120 163
AUDI A6 C5 (4B2, 4B4) 2.5 TDI 1997 – 2005 2496 120 163
AUDI A6 C5 (4B2, 4B4) 2.4 quattro 1997 – 2005 2393 115 156
AUDI A6 C5 (4B2, 4B4) 2.7 1997 – 2005 2671 187 254
AUDI A6 C5 (4B2, 4B4) 2.7 quattro 1997 – 2005 2671 187 254
AUDI A6 C5 (4B2, 4B4) 2.7 quattro 1997 – 2005 2671 195 265
AUDI A6 C5 (4B2, 4B4) 2.8 quattro 1997 – 2005 2771 132 180
AUDI A6 C5 (4B2, 4B4) 3.0 quattro 1997 – 2005 2976 160 218
AUDI A6 C5 (4B2, 4B4) 2.8 quattro 1997 – 2005 2771 140 190
AUDI A6 C5 (4B2, 4B4) 3.0 1997 – 2005 2976 160 218
AUDI A6 C5 (4B2, 4B4) 3.0 quattro 1997 – 2005 2976 164 223
AUDI A6 C5 (4B2, 4B4) 2.4 quattro 1997 – 2005 2393 121 165
AUDI A6 C5 (4B2, 4B4) 2.7 T 1997 – 2005 2671 169 230
AUDI A6 C5 (4B2, 4B4) 2.5 TDI quattro 1997 – 2005 2496 110 150
AUDI A6 C5 (4B2, 4B4) 2.8 quattro 1997 – 2005 2771 142 193
AUDI A6 C5 (4B2, 4B4) 2.8 1997 – 2005 2771 142 193
AUDI A6 C5 (4B2, 4B4) 2.7 T quattro 1997 – 2005 2671 169 230
AUDI A6 C5 (4B2, 4B4) 1.8 T quattro 1997 – 2005 1781 132 180
AUDI A6 C5 (4B2, 4B4) 2.4 1997 – 2005 2393 100 136
AUDI A6 C5 (4B2, 4B4) 2.5 TDI 1997 – 2005 2496 110 150
AUDI A6 C5 (4B2, 4B4) 1.9 TDI 1997 – 2005 1896 81 110
AUDI A6 C5 (4B2, 4B4) 3.7 1997 – 2005 3697 191 260
AUDI A6 C5 (4B2, 4B4) 4.2 quattro 1997 – 2005 4172 220 299
AUDI A6 C5 (4B2, 4B4) 2.4 1997 – 2005 2393 121 165
AUDI A6 C5 (4B2, 4B4) 1.8 1997 – 2005 1781 92 125
AUDI A6 C5 (4B2, 4B4) 3.7 quattro 1997 – 2005 3697 191 260
AUDI A6 C5 (4B2, 4B4) 1.8 T 1997 – 2005 1781 110 150
AUDI A6 C5 Avant (4B5, 4B6) 2.4 1997 – 2006 2393 120 163
AUDI A6 C5 Avant (4B5, 4B6) 2.8 quattro 1997 – 2006 2771 142 193
AUDI A6 C5 Avant (4B5, 4B6) 1.8 1997 – 2006 1781 92 125
AUDI A6 C5 Avant (4B5, 4B6) 3.0 1997 – 2006 2976 162 220
AUDI A6 C5 Avant (4B5, 4B6) RS6 quattro 1997 – 2006 4172 331 450
AUDI A6 C5 Avant (4B5, 4B6) 1.8 T 1997 – 2006 1781 110 150
AUDI A6 C5 Avant (4B5, 4B6) 1.9 TDI 1997 – 2006 1896 96 130
AUDI A6 C5 Avant (4B5, 4B6) 3.0 quattro 1997 – 2006 2976 162 220
AUDI A6 C5 Avant (4B5, 4B6) 2.4 1997 – 2006 2393 125 170
AUDI A6 C5 Avant (4B5, 4B6) 2.4 quattro 1997 – 2006 2393 120 163
AUDI A6 C5 Avant (4B5, 4B6) 1.9 TDI 1997 – 2006 1896 81 110
AUDI A6 C5 Avant (4B5, 4B6) 2.5 TDI 1997 – 2006 2496 120 163
AUDI A6 C5 Avant (4B5, 4B6) 2.4 quattro 1997 – 2006 2393 115 156
AUDI A6 C5 Avant (4B5, 4B6) RS6 plus quattro 1997 – 2006 4172 353 480
AUDI A6 C5 Avant (4B5, 4B6) 3.0 quattro 1997 – 2006 2976 164 223
AUDI A6 C5 Avant (4B5, 4B6) 3.0 1997 – 2006 2976 160 218
AUDI A6 C5 Avant (4B5, 4B6) 3.0 quattro 1997 – 2006 2976 160 218
AUDI A6 C5 Avant (4B5, 4B6) 2.8 quattro 1997 – 2006 2771 140 190
AUDI A6 C5 Avant (4B5, 4B6) 2.4 1997 – 2006 2393 115 156
AUDI A6 C5 Avant (4B5, 4B6) 3.7 1997 – 2006 3697 191 260
AUDI A6 C5 Avant (4B5, 4B6) 4.2 quattro 1997 – 2006 4172 220 299
AUDI A6 C5 Avant (4B5, 4B6) 1.8 T 1997 – 2006 1781 132 180
AUDI A6 C5 Avant (4B5, 4B6) 1.8 T quattro 1997 – 2006 1781 132 180
AUDI A6 C5 Avant (4B5, 4B6) S6 quattro 1997 – 2006 4172 250 340
AUDI A6 C5 Avant (4B5, 4B6) 2.5 TDI 1997 – 2006 2496 132 180
AUDI A6 C5 Avant (4B5, 4B6) 2.5 TDI quattro 1997 – 2006 2496 132 180
AUDI A6 C5 Avant (4B5, 4B6) 2.4 1997 – 2006 2393 100 136
AUDI A6 C5 Avant (4B5, 4B6) 1.9 TDI 1997 – 2006 1896 85 115
AUDI A6 C5 Avant (4B5, 4B6) 1.8 1997 – 2006 1781 85 116
AUDI A6 C5 Avant (4B5, 4B6) 2.8 1997 – 2006 2771 132 180
AUDI A6 C5 Avant (4B5, 4B6) 2.8 1997 – 2006 2771 140 190
AUDI A6 C5 Avant (4B5, 4B6) 2.7 T quattro 1997 – 2006 2671 184 250
AUDI A6 C5 Avant (4B5, 4B6) 2.7 T quattro 1997 – 2006 2671 169 230
AUDI A6 C5 Avant (4B5, 4B6) 2.7 T 1997 – 2006 2671 169 230
AUDI A6 C5 Avant (4B5, 4B6) 2.5 TDI quattro 1997 – 2006 2496 110 150
AUDI A6 C5 Avant (4B5, 4B6) 2.5 TDI 1997 – 2006 2496 110 150
AUDI A6 C5 Avant (4B5, 4B6) 2.4 quattro 1997 – 2006 2393 121 165
AUDI A6 C5 Avant (4B5, 4B6) 1.8 T quattro 1997 – 2006 1781 110 150
AUDI A6 C5 Avant (4B5, 4B6) 2.8 1997 – 2006 2771 142 193
AUDI A6 C5 Avant (4B5, 4B6) 2.4 1997 – 2006 2393 121 165
AUDI A6 C5 Avant (4B5, 4B6) 2.0 1997 – 2006 1984 96 130
AUDI A6 C5 Avant (4B5, 4B6) 3.7 quattro 1997 – 2006 3697 191 260
AUDI A6 C5 Avant (4B5, 4B6) 2.4 quattro 1997 – 2006 2393 125 170
AUDI A6 C5 Avant (4B5, 4B6) 2.5 TDI 1997 – 2006 2496 114 155
