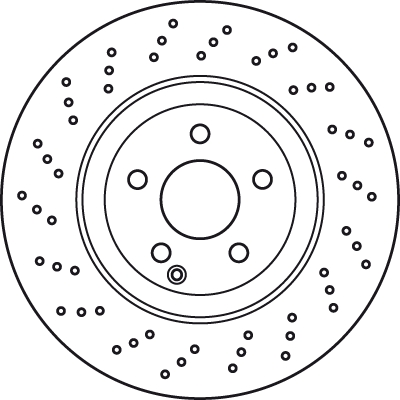

Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF6077S · SKU DF6077S-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)32
Brake Disc Type slotted/perforated
Centering Diameter (mm)67
Colour black
Height (mm)64.5
Minimum thickness (mm)30
Number of Holes 5
Outer Diameter (mm)335
Surface Painted
Thread Size 15,2
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 32, Brake Disc Type slotted/perforated, Centering Diameter [mm] 67, Colour black, Height [mm] 64,5, Minimum thickness [mm] 30, Number of Holes 5, Outer Diameter [mm] 335, Surface Painted, Thread Size 15,2
Fits: MERCEDES-BENZ

Interchangeable Part Numbers

A.B.S.17796 ATE24013201371 BENDIX562567BC BORG & BECKBBD6049S BOSCH0 986 479 413 BOSCH0 986 AB5 897 BOSCH0 986 AB6 142 Brake ENGINEERINGDI956662S BREMBO09A73211 CAR1421374 DELPHIBG9093 DELPHIBG9093C DELPHIBG9093C-18B1 FEBI BILSTEIN26407 FERODODDF1769 FERODODDF1769C FERODODDF1769C-D FERODODDF1769C1 FIRST LINEFBD1704 FTE9071214 FTE9081199 FTEBS7297 HELLA8DD 355 115-011 HELLA8DD 355 122-972 HELLA8DD 355 128-871 JURID562567JC LEMFÖRDER30847 01 LEMFÖRDER35870 01 LPRM2075V METELLI23-1733FC METZGER6103210 MEYLE015 521 2105/PD MEYLE0155212105 MEYLE0835212105PD MINTEXMDC1862 NK2033119 NK3133119 OPTIMALBS-8206HC OPTIMALBS-8206 PAGID54719 PAGID54719PRO PILENGAV942 QUINTON HAZELLBDC5638 ROULUNDS RUBBERWD01284 SWAG10926407 TEXTAR92171900 TEXTAR92171903 TEXTAR92171905 TRISCAN812023193 TRISCAN812023193C TRUCKTEC AUTOMOTIVE0235209 TRUSTINGDF1365 VALEO197479 ZIMMERMANN400365920

OE Numbers — MERCEDES-BENZ

221 421 06 12 221 421 10 12 221 421 17 12 221421171207 A2214210612 A2214211012 A2214211712 A221421171207
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ S-CLASS (W221, V221) S 300 (221.054, 221.154) 2005 – 2013 2996 170 231
MERCEDES-BENZ S-CLASS (W221, V221) S 420 CDI (221.028, 221.128) 2005 – 2013 3996 235 320
MERCEDES-BENZ S-CLASS (W221, V221) S 500 4-matic (221.086, 221.186) 2005 – 2013 5461 285 388
MERCEDES-BENZ S-CLASS (W221, V221) S 63 AMG (221.077, 221.177) 2005 – 2013 6208 386 525
MERCEDES-BENZ S-CLASS (W221, V221) S 350 4-matic (221.087, 221.187) 2005 – 2013 3498 200 272
MERCEDES-BENZ S-CLASS (W221, V221) S 400 Hybrid 2005 – 2013 3498 220 299
MERCEDES-BENZ S-CLASS (W221, V221) S 400 4-matic 2005 – 2013 4663 250 340
MERCEDES-BENZ S-CLASS (W221, V221) S 320 CDI 2005 – 2013 2987 155 211
MERCEDES-BENZ S-CLASS (W221, V221) S 350 CDI 2005 – 2013 2987 155 211
MERCEDES-BENZ S-CLASS (W221, V221) S 280 (221.054) 2005 – 2013 2996 170 231
MERCEDES-BENZ S-CLASS (W221, V221) S 320 CDI 4-matic (221.080, 221.180) 2005 – 2013 2987 173 235
MERCEDES-BENZ S-CLASS (W221, V221) S 320 CDI 4-matic (221.080, 221.180) 2005 – 2013 2987 155 211
MERCEDES-BENZ S-CLASS (W221, V221) S 350 CDI 4-matic 2005 – 2013 2987 179 243
MERCEDES-BENZ S-CLASS (W221, V221) S 430 2005 – 2013 4266 205 279
MERCEDES-BENZ S-CLASS (W221, V221) S 350 CDI 4-matic (221.080, 221.081) 2005 – 2013 2987 155 211
MERCEDES-BENZ S-CLASS (W221, V221) S 300 (221.154) 2005 – 2013 2996 180 245
MERCEDES-BENZ S-CLASS (W221, V221) S 450 CDI (221.028, 221.128) 2005 – 2013 3996 235 320
MERCEDES-BENZ S-CLASS (W221, V221) S 350 CDI 4-matic (221.080, 221.180) 2005 – 2013 2987 173 235
MERCEDES-BENZ S-CLASS (W221, V221) S 550 (221.073, 221.173) 2005 – 2013 4663 320 435
MERCEDES-BENZ S-CLASS (W221, V221) S 550 4-matic (221.094, 221.194) 2005 – 2013 4663 320 435
MERCEDES-BENZ S-CLASS (W221, V221) S 65 AMG (221.179) 2005 – 2013 5980 463 630
MERCEDES-BENZ S-CLASS (W221, V221) S 63 AMG (221.074, 221.174) 2005 – 2013 5461 420 571
MERCEDES-BENZ S-CLASS (W221, V221) S 250 CDI (221.003, 221.103) 2005 – 2013 2143 150 204
MERCEDES-BENZ S-CLASS (W221, V221) S 350 BlueTec (221.026, 221.126) 2005 – 2013 2987 190 258
MERCEDES-BENZ S-CLASS (W221, V221) S 350 BlueTEC 4-matic (221.083, 221.183) 2005 – 2013 2987 190 258
MERCEDES-BENZ S-CLASS (W221, V221) S 350 CGI (221.057, 221.157) 2005 – 2013 3498 225 306
MERCEDES-BENZ S-CLASS (W221, V221) S 350 CGI 4-matic (221.082, 221.182) 2005 – 2013 3498 225 306
MERCEDES-BENZ S-CLASS (W221, V221) S 500 CGI (221.073, 221.173) 2005 – 2013 4663 320 435
MERCEDES-BENZ S-CLASS (W221, V221) S 500 CGI 4-matic (221.094, 221.194) 2005 – 2013 4663 320 435
MERCEDES-BENZ S-CLASS (W221, V221) S 63 AMG (221.074, 221.174) 2005 – 2013 5461 400 544
MERCEDES-BENZ S-CLASS (W221, V221) S 400 Hybrid (221.095, 221.195) 2005 – 2013 3498 205 279
MERCEDES-BENZ S-CLASS (W221, V221) S 500 2005 – 2013 5461 271 369
MERCEDES-BENZ S-CLASS (W221, V221) S 350 CDI (221.022, 221.122) 2005 – 2013 2987 173 235
MERCEDES-BENZ S-CLASS (W221, V221) S 350 (221.056, 221.156) 2005 – 2013 3498 200 272
MERCEDES-BENZ S-CLASS (W221, V221) S 500 (221.071, 221.171) 2005 – 2013 5461 285 388
MERCEDES-BENZ S-CLASS (W221, V221) S 320 CDI (221.022, 221.122) 2005 – 2013 2987 173 235
MERCEDES-BENZ S-CLASS (W221, V221) S 450, S 450 L (221.070, 221.170) 2005 – 2013 4663 250 340
MERCEDES-BENZ S-CLASS (W221, V221) S 450 4-matic (221.084, 221.184) 2005 – 2013 4663 250 340
MERCEDES-BENZ S-CLASS (W221, V221) S 600 (221.176) 2005 – 2013 5513 380 517
MERCEDES-BENZ S-CLASS (W221, V221) S 65 AMG (221.179) 2005 – 2013 5980 450 612
