Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF6106 · SKU DF6106-TRW
Rear Axle
₱14,700.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

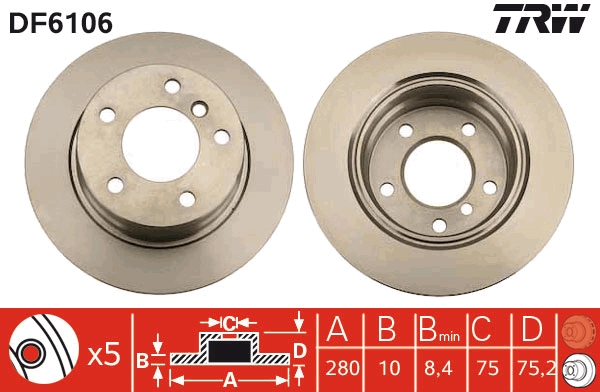

Specifications

Bolt Hole Circle Ø (mm)120
Brake Disc Thickness (mm)10
Brake Disc Type solid
Centering Diameter (mm)75
Colour black
Drum diameter (mm)161
Height (mm)75
Minimum thickness (mm)8.4
Number of Holes 5
Outer Diameter (mm)280
Surface Painted
Test Mark E1 90R-02 C0204/0525
Thread Size 14,5
Bolt Hole Circle Ø [mm] 120, Brake Disc Thickness [mm] 10, Brake Disc Type solid, Centering Diameter [mm] 75, Colour black, Drum diameter [mm] 161, Height [mm] 75, Minimum thickness [mm] 8,4, Number of Holes 5, Outer Diameter [mm] 280, Surface Painted, Test Mark E1 90R-02 C0204/0525, Thread Size 14,5
Fits: BMW

Supplier Cross-References

TEXTAR92146003 FERODODDF249C ATE24011002871 HELLA PAGID8DD355112641 BREMBO8985981 TRWDF6106

Interchangeable Part Numbers

A.B.S.17801 ATE24111002871 BENDIX561552BC BORG & BECKBBD4707 BOSCH 0 986 479494 BOSCH0986479494 BOSCH F 026 A06380 BOSCHF026A06380 BREMBO08985980 BREMBO08985981 CAR1421328 CARHPD1328 CIFAM800951C DELPHIBG3940 FEBI BILSTEIN28162 FERODODDF1284 FERODODDF12841 FIRST LINEFBD1791 FTE9072576 FTE9082271 FTEBS7183 FTEBS7183B FTEBS7183HB HELLA 8DD 355112-631 HELLA8DD355112631 HELLA 8DD 355112-641 HELLA 8DD 355112-642 HELLA8DD355112642 JURID561552J JURID561552JC METELLI230951C METZGER14860 METZGER14860V MEYLE 315 5230013/PD MEYLE3155230013PD MEYLE3155230013 MEYLE3155230027PD MINTEXMDC1814 NK201586 NK311586 PAGID54460 PAGID54460PRO PEX140873 PILENGA5138 REMSA6114400 REMYRAD2007C ROULUNDS RUBBERWD01935 sbs1815201586 ST-TEMPLIN0311012360 ST-TEMPLIN0311012365 SWAG20928162 TEXTAR92146000 TEXTAR92146005 TEXTAR98200146001 TRISCAN812011178 TRUCKTEC AUTOMOTIVE0834189 TRUSTINGDF128 VALEO186295 ZIMMERMANN150343520

OE Numbers — BMW 34 21 6 752

545

OE Numbers — BMW

34216752545 34216766225 34216794306 6752545 6766225 6794306

OE Numbers — BMW 34 21 6 766

225

OE Numbers — BMW 34 21 6 794

306
MakeModelType / Engine YearsCCkWHP
BMW Z4 Roadster (E85) 3.0 si 2002 – 2009 2996 190 258
BMW Z4 Roadster (E85) 3.2 2002 – 2009 3246 235 320
BMW Z4 Roadster (E85) 3.0 i 2002 – 2009 2979 170 231
BMW Z4 Roadster (E85) 2.5 i 2002 – 2009 2494 141 192
BMW Z4 Roadster (E85) 2.2 i 2002 – 2009 2171 125 170
BMW Z4 Roadster (E85) 2.0 i 2002 – 2009 1995 110 150
BMW Z4 Roadster (E85) 2.5 i 2002 – 2009 2497 130 177
BMW Z4 Roadster (E85) 2.5 si 2002 – 2009 2497 160 218
BMW Z4 Roadster (E85) 3.0 si 2002 – 2009 2996 195 265
BMW Z4 Roadster (E85) M 2002 – 2009 3246 252 343
BMW Z4 Roadster (E85) 3.0 si 2002 – 2009 2996 160 218
BMW Z4 Roadster (E85) 2.5 si 2002 – 2009 2497 155 211
