Brake Disc

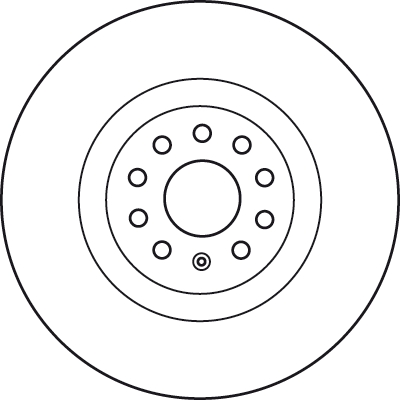

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF6133S · SKU DF6133S-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)30
Brake Disc Type Vented
Centering Diameter (mm)65
Colour black
Height (mm)49.7
Minimum thickness (mm)27
Number of Holes 5
Outer Diameter (mm)340
Surface Painted
Test Mark E190R-02C0176/0601
Thread Size 15,3
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 30, Brake Disc Type Vented, Centering Diameter [mm] 65, Colour black, Height [mm] 49,7, Minimum thickness [mm] 27, Number of Holes 5, Outer Diameter [mm] 340, Surface Painted, Test Mark E190R-02C0176/0601, Thread Size 15,3
Fits: AUDI, CUPRA, SEAT, SKODA, SKODA (SVW), VW, VW (FAW)

Interchangeable Part Numbers

ATE24013002251 BENDIX562663BC BORG & BECKBBD5963S BOSCH0 986 479 734 Brake ENGINEERINGDI956959S BREMBO09.C306.11 BREMBO09.C306.1X CAR1421612 DELPHIBG9109 FEBI BILSTEIN39129 FERODODDF2000C HELLA8DD 355 117-201 HELLA8DD 355 129-241 Hi-QSD5701 JURID562663JC LPRV2010V LPRV2010VR METELLI231243C MEYLE115 521 0008/PD MEYLE1835210008PD MINTEXMDC2253 NK2047141 NK3147141 OPTIMALBS-8712HC PAGID55298 REMSA6148510 REMSA6148610 REMYRAD1964C sbs18152047141 SWAG30 93 9129 TEXTAR92229803 TEXTAR92229805 TRISCAN8120291061C TRUSTINGDF1456 VALEO197677

OE Numbers — AUDI

1K0 615 301 AD 5Q0 615 301 G 8S0 615 301 D 8S0 615 301
MakeModelType / Engine YearsCCkWHP
AUDI A3 (8V1, 8VK) 1.6 TDI 2012 – 2020 1598 85 115
AUDI A3 (8V1, 8VK) 1.5 TFSI 2012 – 2020 1498 110 150
AUDI A3 (8V1, 8VK) 1.4 TFSI 2012 – 2020 1395 90 122
AUDI A3 (8V1, 8VK) 1.8 TFSI 2012 – 2020 1798 132 180
AUDI A3 (8V1, 8VK) 2.0 TDI 2012 – 2020 1968 105 143
AUDI A3 (8V1, 8VK) 2.0 TDI 2012 – 2020 1968 110 150
AUDI A3 (8V1, 8VK) 1.8 TFSI quattro 2012 – 2020 1798 132 180
AUDI A3 (8V1, 8VK) 1.6 TDI 2012 – 2020 1598 77 105
AUDI A3 (8V1, 8VK) 2.0 TDI 2012 – 2020 1968 81 110
AUDI A3 (8V1, 8VK) 2.0 TDI quattro 2012 – 2020 1968 110 150
AUDI A3 (8V1, 8VK) 2.0 TDI 2012 – 2020 1968 135 184
AUDI A3 (8V1, 8VK) 2.0 TDI quattro 2012 – 2020 1968 135 184
AUDI A3 (8V1, 8VK) 1.4 TFSI 2012 – 2020 1395 103 140
AUDI A3 (8V1, 8VK) 1.2 TFSI 2012 – 2020 1197 77 105
AUDI A3 (8V1, 8VK) S3 quattro 2012 – 2020 1984 206 280
AUDI A3 (8V1, 8VK) S3 quattro 2012 – 2020 1984 221 300
AUDI A3 (8V1, 8VK) 2.0 TDI 2012 – 2020 1968 100 136
AUDI A3 (8V1, 8VK) 1.6 TDI 2012 – 2020 1598 81 110
AUDI A3 (8V1, 8VK) 1.2 TFSI 2012 – 2020 1197 81 110
AUDI A3 (8V1, 8VK) 1.4 TFSI 2012 – 2020 1395 92 125
AUDI A3 (8V1, 8VK) 1.4 TSI 2012 – 2020 1395 110 150
AUDI A3 (8V1, 8VK) S3 quattro 2012 – 2020 1984 210 286
AUDI A3 (8V1, 8VK) 1.0 TFSI 2012 – 2020 999 85 115
AUDI A3 (8V1, 8VK) S3 quattro 2012 – 2020 1984 228 310
AUDI A3 (8V1, 8VK) 2.0 TFSI quattro 2012 – 2020 1984 140 190
AUDI A3 (8V1, 8VK) 2.0 TFSI 2012 – 2020 1984 140 190
AUDI A3 (8V1, 8VK) S3 quattro 2012 – 2020 1984 213 290
AUDI A3 Convertible (8V7, 8VE) 1.4 TFSI 2013 – 2021 1395 103 140
AUDI A3 Convertible (8V7, 8VE) 1.8 TFSI 2013 – 2021 1798 132 180
AUDI A3 Convertible (8V7, 8VE) 2.0 TDI 2013 – 2021 1968 110 150
AUDI A3 Convertible (8V7, 8VE) 1.6 TDI 2013 – 2021 1598 81 110
AUDI A3 Convertible (8V7, 8VE) 1.8 TFSI quattro 2013 – 2021 1798 132 180
AUDI A3 Convertible (8V7, 8VE) 2.0 TDI quattro 2013 – 2021 1968 110 150
AUDI A3 Convertible (8V7, 8VE) 1.4 TFSI 2013 – 2021 1395 92 125
AUDI A3 Convertible (8V7, 8VE) S3 quattro 2013 – 2021 1984 221 300
AUDI A3 Convertible (8V7, 8VE) 2.0 TDI 2013 – 2021 1968 135 184
AUDI A3 Convertible (8V7, 8VE) 2.0 TDI quattro 2013 – 2021 1968 135 184
AUDI A3 Convertible (8V7, 8VE) 1.8 TFSI 2013 – 2021 1798 125 170
AUDI A3 Convertible (8V7, 8VE) 1.4 TSI 2013 – 2021 1395 110 150
AUDI A3 Convertible (8V7, 8VE) 2.0 TDI 2013 – 2021 1968 100 136
AUDI A3 Convertible (8V7, 8VE) S3 quattro 2013 – 2021 1984 210 286
AUDI A3 Convertible (8V7, 8VE) 2.0 TFSI quattro 2013 – 2021 1984 162 220
AUDI A3 Convertible (8V7, 8VE) 1.4 TFSI 2013 – 2021 1395 85 115
AUDI A3 Convertible (8V7, 8VE) S3 quattro 2013 – 2021 1984 228 310
AUDI A3 Convertible (8V7, 8VE) 2.0 TFSI quattro 2013 – 2021 1984 140 190
AUDI A3 Convertible (8V7, 8VE) 2.0 TFSI 2013 – 2021 1984 140 190
AUDI A3 Convertible (8V7, 8VE) S3 quattro 2013 – 2021 1984 213 290
AUDI A3 Convertible (8V7, 8VE) 40 TFSI quattro 2013 – 2021 1984 140 190
AUDI A3 Convertible (8V7, 8VE) 2.0 TFSI quattro 2013 – 2021 1984 170 231
AUDI A3 Convertible (8V7, 8VE) 35 TFSI 2013 – 2021 1498 110 150
AUDI A3 Convertible (8V7, 8VE) 2.0 TFSI 2013 – 2021 1984 137 186
AUDI A3 Convertible (8V7, 8VE) 1.5 TFSI 2013 – 2021 1498 110 150
AUDI A3 Convertible (8V7, 8VE) 40 TFSI 2013 – 2021 1984 140 190
AUDI A3 Convertible (8V7, 8VE) 1.8 40 TFSI 2013 – 2021 1798 132 180
AUDI A3 Convertible (8V7, 8VE) 1.6 TDI 2013 – 2021 1598 85 115
AUDI A3 Limousine (8VS, 8VM) S3 quattro 2013 – 2021 1984 213 290
AUDI A3 Limousine (8VS, 8VM) 40 TDI quattro 2013 – 2021 1968 135 184
AUDI A3 Limousine (8VS, 8VM) 40 TFSI quattro 2013 – 2021 1984 140 190
AUDI A3 Limousine (8VS, 8VM) 30 TDI 2013 – 2021 1598 85 115
AUDI A3 Limousine (8VS, 8VM) 40 TFSI 2013 – 2021 1984 140 190
AUDI A3 Limousine (8VS, 8VM) 35 TDI 2013 – 2021 1968 110 150
AUDI A3 Limousine (8VS, 8VM) 2.0 TFSI quattro 2013 – 2021 1984 170 231
AUDI A3 Limousine (8VS, 8VM) 35 TFSI 2013 – 2021 1498 110 150
AUDI A3 Limousine (8VS, 8VM) 30 TFSI 2013 – 2021 999 85 115
AUDI A3 Limousine (8VS, 8VM) 2.0 TFSI 2013 – 2021 1984 137 186
AUDI A3 Limousine (8VS, 8VM) 1.5 TFSI 2013 – 2021 1498 110 150
AUDI A3 Limousine (8VS, 8VM) RS3 quattro 2013 – 2021 2480 294 400
AUDI A3 Limousine (8VS, 8VM) 1.6 TDI 2013 – 2021 1598 85 115
AUDI A3 Limousine (8VS, 8VM) 1.4 TFSI Flex 2013 – 2021 1395 110 150
AUDI A3 Limousine (8VS, 8VM) 1.4 TFSI 2013 – 2021 1395 90 122
AUDI A3 Limousine (8VS, 8VM) S3 quattro 2013 – 2021 1984 221 300
AUDI A3 Limousine (8VS, 8VM) 2.0 TDI 2013 – 2021 1968 105 143
AUDI A3 Limousine (8VS, 8VM) 1.2 TFSI 2013 – 2021 1197 77 105
AUDI A3 Limousine (8VS, 8VM) 1.6 TDI 2013 – 2021 1598 77 105
AUDI A3 Limousine (8VS, 8VM) 1.4 TFSI 2013 – 2021 1395 92 125
AUDI A3 Limousine (8VS, 8VM) 1.8 TFSI quattro 2013 – 2021 1798 132 180
AUDI A3 Limousine (8VS, 8VM) S3 quattro 2013 – 2021 1984 206 280
AUDI A3 Limousine (8VS, 8VM) 1.4 TFSI 2013 – 2021 1395 103 140
AUDI A3 Limousine (8VS, 8VM) 1.8 TFSI 2013 – 2021 1798 132 180
AUDI A3 Limousine (8VS, 8VM) 2.0 TDI 2013 – 2021 1968 81 110
AUDI A3 Limousine (8VS, 8VM) 2.0 TDI 2013 – 2021 1968 110 150
AUDI A3 Limousine (8VS, 8VM) 2.0 TDI 2013 – 2021 1968 100 136
AUDI A3 Limousine (8VS, 8VM) 2.0 TDI quattro 2013 – 2021 1968 110 150
AUDI A3 Limousine (8VS, 8VM) 1.8 TFSI 2013 – 2021 1798 125 170
AUDI A3 Limousine (8VS, 8VM) 2.0 TDI 2013 – 2021 1968 135 184
AUDI A3 Limousine (8VS, 8VM) 2.0 TDI quattro 2013 – 2021 1968 135 184
AUDI A3 Limousine (8VS, 8VM) 1.2 TFSI 2013 – 2021 1197 81 110
AUDI A3 Limousine (8VS, 8VM) 1.4 TSI 2013 – 2021 1395 110 150
AUDI A3 Limousine (8VS, 8VM) 1.6 TDI 2013 – 2021 1598 81 110
AUDI A3 Limousine (8VS, 8VM) S3 quattro 2013 – 2021 1984 210 286
AUDI A3 Limousine (8VS, 8VM) 2.0 TFSI quattro 2013 – 2021 1984 162 220
AUDI A3 Limousine (8VS, 8VM) S3 quattro 2013 – 2021 1984 215 292
AUDI A3 Limousine (8VS, 8VM) 1.6 TDI quattro 2013 – 2021 1598 81 110
AUDI A3 Limousine (8VS, 8VM) 2.0 TFSI 2013 – 2021 1984 162 220
AUDI A3 Limousine (8VS, 8VM) 1.0 TFSI 2013 – 2021 999 85 115
AUDI A3 Limousine (8VS, 8VM) S3 quattro 2013 – 2021 1984 228 310
AUDI A3 Limousine (8VS, 8VM) 2.0 TFSI quattro 2013 – 2021 1984 140 190
AUDI A3 Limousine (8VS, 8VM) 2.0 TFSI 2013 – 2021 1984 140 190
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI 2012 – 2021 1968 81 110
AUDI A3 Sportback (8VA, 8VF) 1.4 TFSI 2012 – 2021 1395 90 122
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI 2012 – 2021 1968 110 150
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI quattro 2012 – 2021 1968 135 184
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI 2012 – 2021 1968 105 143
AUDI A3 Sportback (8VA, 8VF) 1.8 TFSI 2012 – 2021 1798 132 180
AUDI A3 Sportback (8VA, 8VF) 1.6 TDI 2012 – 2021 1598 77 105
AUDI A3 Sportback (8VA, 8VF) 1.4 TFSI 2012 – 2021 1395 103 140
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI quattro 2012 – 2021 1968 110 150
AUDI A3 Sportback (8VA, 8VF) S3 quattro 2012 – 2021 1984 221 300
AUDI A3 Sportback (8VA, 8VF) 1.8 TFSI quattro 2012 – 2021 1798 132 180
AUDI A3 Sportback (8VA, 8VF) 1.2 TFSI 2012 – 2021 1197 77 105
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI 2012 – 2021 1968 135 184
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI 2012 – 2021 1968 100 136
AUDI A3 Sportback (8VA, 8VF) S3 quattro 2012 – 2021 1984 206 280
AUDI A3 Sportback (8VA, 8VF) 1.6 TDI 2012 – 2021 1598 81 110
AUDI A3 Sportback (8VA, 8VF) 1.4 TFSI g-tron 2012 – 2021 1395 81 110
AUDI A3 Sportback (8VA, 8VF) 1.2 TFSI 2012 – 2021 1197 81 110
AUDI A3 Sportback (8VA, 8VF) 1.4 TFSI 2012 – 2021 1395 92 125
AUDI A3 Sportback (8VA, 8VF) 1.4 TSI 2012 – 2021 1395 110 150
AUDI A3 Sportback (8VA, 8VF) S3 quattro 2012 – 2021 1984 210 286
AUDI A3 Sportback (8VA, 8VF) 2.0 45 TFSI 2012 – 2021 1984 162 220
AUDI A3 Sportback (8VA, 8VF) RS3 quattro 2012 – 2021 2480 270 367
AUDI A3 Sportback (8VA, 8VF) 1.6 TDI quattro 2012 – 2021 1598 81 110
AUDI A3 Sportback (8VA, 8VF) 1.4 TFSI e-tron 2012 – 2021 1395 150 204
AUDI A3 Sportback (8VA, 8VF) 1.0 TFSI 2012 – 2021 999 85 115
AUDI A3 Sportback (8VA, 8VF) S3 quattro 2012 – 2021 1984 228 310
AUDI A3 Sportback (8VA, 8VF) 2.0 TFSI quattro 2012 – 2021 1984 140 190
AUDI A3 Sportback (8VA, 8VF) 2.0 TFSI 2012 – 2021 1984 140 190
AUDI A3 Sportback (8VA, 8VF) S3 quattro 2012 – 2021 1984 213 290
AUDI A3 Sportback (8VA, 8VF) 40 TDI quattro 2012 – 2021 1968 135 184
AUDI A3 Sportback (8VA, 8VF) 40 e-tron 2012 – 2021 1395 150 204
AUDI A3 Sportback (8VA, 8VF) 40 TFSI quattro 2012 – 2021 1984 140 190
AUDI A3 Sportback (8VA, 8VF) 1.8 40 TFSI 2012 – 2021 1798 132 180
AUDI A3 Sportback (8VA, 8VF) 35 TDI 2012 – 2021 1968 110 150
AUDI A3 Sportback (8VA, 8VF) 30 g-tron 2012 – 2021 1498 96 131
AUDI A3 Sportback (8VA, 8VF) 30 TFSI 2012 – 2021 999 85 116
AUDI A3 Sportback (8VA, 8VF) 35 TFSI 2012 – 2021 1498 110 150
AUDI A3 Sportback (8VA, 8VF) 30 TDI 2012 – 2021 1598 85 115
AUDI A3 Sportback (8VA, 8VF) 1.5 TFSI 2012 – 2021 1498 110 150
AUDI A3 Sportback (8VA, 8VF) 40 TFSI 2012 – 2021 1984 140 190
AUDI A3 Sportback (8VA, 8VF) RS3 quattro 2012 – 2021 2480 294 400
AUDI A3 Sportback (8VA, 8VF) 1.6 TDI 2012 – 2021 1598 85 115
AUDI Q3 (F3B) 45 TFSI e 2018 – present 1395 180 245
AUDI Q3 (F3B) 40 TFSI quattro 2018 – present 1984 132 180
AUDI Q3 (F3B) 45 TFSI quattro 2018 – present 1984 180 245
AUDI Q3 (F3B) 40 TDI quattro 2018 – present 1968 147 200
AUDI Q3 (F3B) 40 TFSI quattro 2018 – present 1984 137 186
AUDI Q3 (F3B) 45 TFSI quattro 2018 – present 1984 170 231
AUDI Q3 (F3B) 35 TFSI Mild Hybrid 2018 – present 1498 110 150
AUDI Q3 (F3B) 40 TDI quattro 2018 – present 1968 142 193
AUDI Q3 (F3B) 40 TFSI quattro 2018 – present 1984 140 190
AUDI Q3 (F3B) 2.5 RS quattro 2018 – present 2480 294 400
AUDI Q3 (F3B) 35 TFSI 2018 – present 1395 110 150
AUDI Q3 (F3B) 35 TFSI 2018 – present 1498 110 150
AUDI Q3 (F3B) 35 TDI 2018 – present 1968 110 150
AUDI Q3 (F3B) 35 TDI quattro 2018 – present 1968 110 150
AUDI Q3 (F3B) 40 TDI quattro 2018 – present 1968 140 190
AUDI Q3 (F3B) 45 TFSI quattro 2018 – present 1984 169 230
AUDI Q3 (F3B) 40 TFSI quattro 2018 – present 1984 140 190
AUDI Q3 Sportback (F3N) 40 TDI quattro 2019 – present 1968 142 193
AUDI Q3 Sportback (F3N) 2.0 45 TFSI quattro 2019 – present 1984 170 231
AUDI Q3 Sportback (F3N) 45 TFSI e 2019 – present 1395 180 245
AUDI Q3 Sportback (F3N) 40 TFSI quattro 2019 – present 1984 140 190
AUDI Q3 Sportback (F3N) 45 TFSI quattro 2019 – present 1984 180 245
AUDI Q3 Sportback (F3N) 40 TDI quattro 2019 – present 1968 147 200
AUDI Q3 Sportback (F3N) 40 TFSI quattro 2019 – present 1984 132 179
AUDI Q3 Sportback (F3N) 35 TFSI 2019 – present 1395 110 150
AUDI Q3 Sportback (F3N) 40 TFSI quattro 2019 – present 1984 140 190
AUDI Q3 Sportback (F3N) 35 TFSI Mild Hybrid 2019 – present 1498 110 150
AUDI Q3 Sportback (F3N) 2.5 RS quattro 2019 – present 2480 294 400
AUDI Q3 Sportback (F3N) 40 TDI quattro 2019 – present 1968 140 190
AUDI Q3 Sportback (F3N) 35 TDI quattro 2019 – present 1968 110 150
AUDI Q3 Sportback (F3N) 35 TDI 2019 – present 1968 110 150
AUDI Q3 Sportback (F3N) 45 TFSI quattro 2019 – present 1984 169 230
AUDI Q3 Sportback (F3N) 35 TFSI 2019 – present 1498 110 150
Talk to Expert
