Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

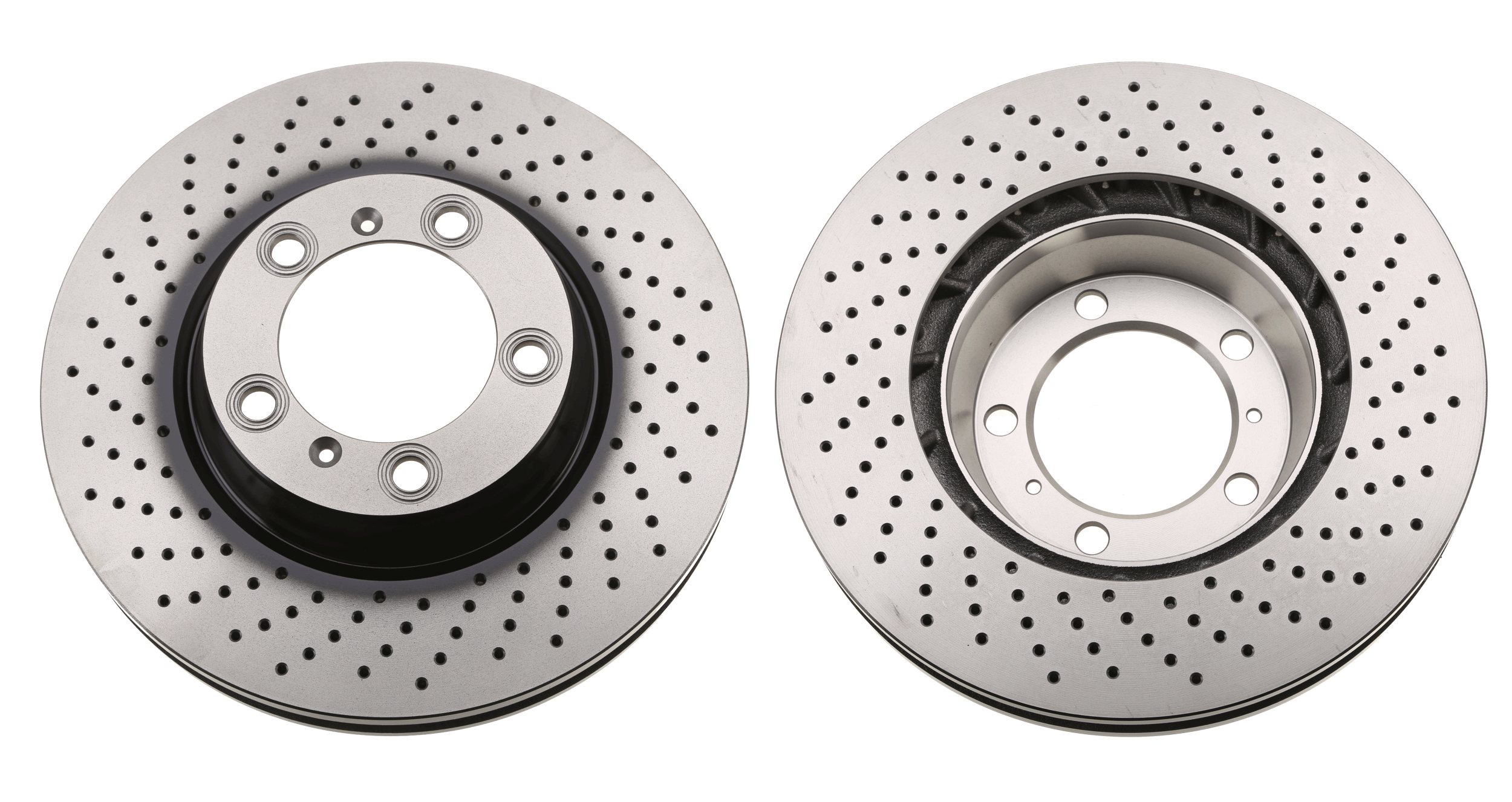

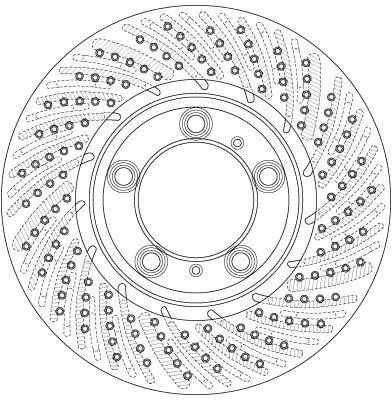

Brake Disc

Part No. DF6267S · SKU DF6267S-TRW
Front Axle Left
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)130
Brake Disc Thickness (mm)34
Brake Disc Type Perforated
Brake Disc Type Vented
Centering Diameter (mm)98
Colour black
Height (mm)69.4
Minimum thickness (mm)32
Number of Holes 5
Outer Diameter (mm)330. paired article number DF6266S
Surface Painted
Thread Size 15.4
Bolt Hole Circle Ø [mm] 130, Brake Disc Thickness [mm] 34, Brake Disc Type Perforated, Brake Disc Type Vented, Centering Diameter [mm] 98, Colour black, Height [mm] 69,4, Minimum thickness [mm] 32, Number of Holes 5, Outer Diameter [mm] 330, paired article number DF6266S, Surface Painted, Thread Size 15.4
Fits: PORSCHE

Interchangeable Part Numbers

A.B.S.17700 ATE24013401011 ATE24113401011 BENDIX562586BC BEWEKO6119610 BORG & BECKBBD6044S BOSCH0 986 479 579 Brake ENGINEERINGDI956817S BREMBO09C09211 CAR1421252 DELPHIBG9094 DELPHIBG9094C GIRLING6062675 HELLA8DD 355 113-111 JURID562586JC LPRP2005V MINTEXMDC2354L OPTIMALBS-8958C OPTIMALBS-8958HC OPTIMALBS-8958 PILENGAV904L TEXTAR92149900 TEXTAR92149905 TEXTAR92149907 TEXTAR92149910 TRISCAN8120101075C WOKINGD6119610 ZIMMERMANN460156020

OE Numbers — PORSCHE

996 351 409 02
MakeModelType / Engine YearsCCkWHP
PORSCHE 911 (996) 3.6 S 1997 – 2005 3600 331 450
PORSCHE 911 (996) 3.6 Carrera 4 1997 – 2005 3596 235 320
PORSCHE 911 (996) 3.6 Carrera 1997 – 2005 3596 235 320
PORSCHE 911 (996) 3.6 GT2 1997 – 2005 3600 340 462
PORSCHE 911 (996) 3.6 GT3 1997 – 2005 3600 280 381
PORSCHE 911 (996) 3.6 GT2 1997 – 2005 3600 355 483
PORSCHE 911 (996) 3.4 Carrera 1997 – 2005 3387 221 301
PORSCHE 911 (996) 3.4 Carrera 4 1997 – 2005 3387 235 320
PORSCHE 911 (996) 3.4 Carrera 4 1997 – 2005 3387 221 301
PORSCHE 911 (996) 3.6 GT3 1997 – 2005 3600 265 360
PORSCHE 911 (996) 3.6 Turbo 4S 1997 – 2005 3600 331 450
PORSCHE 911 (996) 3.6 Carrera 4S 1997 – 2005 3596 254 345
PORSCHE 911 (996) 3.6 Carrera S 1997 – 2005 3596 254 345
PORSCHE 911 (996) 3.6 Turbo 4 1997 – 2005 3600 309 420
PORSCHE 911 (996) 3.4 Carrera 1997 – 2005 3387 235 320
PORSCHE 911 (997) 3.6 GT3 2004 – 2013 3600 305 415
PORSCHE 911 (997) 3.8 Carrera S 2004 – 2013 3824 280 381
PORSCHE 911 (997) 3.6 Turbo 2004 – 2013 3600 353 480
PORSCHE 911 (997) 3.8 Turbo 2004 – 2013 3800 368 500
PORSCHE 911 (997) 3.6 Carrera 4 2004 – 2013 3596 242 329
PORSCHE 911 (997) 3.8 Carrera 4S 2004 – 2013 3824 261 355
PORSCHE 911 (997) 3.6 Carrera 4 2004 – 2013 3596 239 325
PORSCHE 911 (997) 3.8 Carrera 4S 2004 – 2013 3824 264 359
PORSCHE 911 (997) 3.8 GT3 RS 2004 – 2013 3800 335 456
PORSCHE 911 (997) 3.8 Carrera S / GTS 2004 – 2013 3800 300 408
PORSCHE 911 (997) 3.8 Carrera 4S 2004 – 2013 3824 280 381
PORSCHE 911 (997) 3.8 Turbo 2004 – 2013 3800 373 507
PORSCHE 911 (997) 3.6 GT 2 2004 – 2013 3600 390 530
PORSCHE 911 (997) 3.6 Carrera 2004 – 2013 3614 254 345
PORSCHE 911 (997) 3.8 Carrera S 2004 – 2013 3800 283 385
PORSCHE 911 (997) 3.6 Turbo 2004 – 2013 3600 309 420
PORSCHE 911 (997) 3.8 GT3 RS 2004 – 2013 3797 331 450
PORSCHE 911 (997) 3.8 Carrera 4S 2004 – 2013 3800 283 385
PORSCHE 911 (997) 3.6 Carrera 4 2004 – 2013 3614 254 345
PORSCHE 911 (997) 3.6 Carrera 2004 – 2013 3596 235 320
PORSCHE 911 (997) 3.8 GT3 2004 – 2013 3797 320 435
PORSCHE 911 (997) 3.8 Carrera S 2004 – 2013 3824 261 355
PORSCHE 911 (997) 3.6 Carrera 2004 – 2013 3596 239 325
PORSCHE 911 (997) 3.8 Carrera 4S / 4 GTS 2004 – 2013 3800 300 408
PORSCHE 911 (997) 3.6 GT2 RS 2004 – 2013 3600 456 620
PORSCHE 911 (997) 3.6 GT2 RS 2004 – 2013 3600 462 628
PORSCHE 911 (997) 3.8 Turbo S 2004 – 2013 3800 395 537
PORSCHE 911 (997) 4.0 GT3 RS 2004 – 2013 3996 368 500
PORSCHE 911 (997) 3.8 Turbo S 2004 – 2013 3800 390 530
PORSCHE 911 Convertible (996) 3.4 Carrera 1997 – 2005 3387 235 320
PORSCHE 911 Convertible (996) 3.4 Carrera 1997 – 2005 3387 221 301
PORSCHE 911 Convertible (996) 3.4 Carrera 4 1997 – 2005 3387 235 320
PORSCHE 911 Convertible (996) 3.6 Carrera 1997 – 2005 3596 235 320
PORSCHE 911 Convertible (996) 3.6 Carrera 4 1997 – 2005 3596 235 320
PORSCHE 911 Convertible (996) 3.6 S 1997 – 2005 3600 331 450
PORSCHE 911 Convertible (996) 3.6 Carrera S 1997 – 2005 3596 254 345
PORSCHE 911 Convertible (996) 3.6 Carrera 4S 1997 – 2005 3596 254 345
PORSCHE 911 Convertible (996) 3.6 Turbo 4 1997 – 2005 3600 309 420
PORSCHE 911 Convertible (996) 3.6 Turbo 4S 1997 – 2005 3600 331 450
PORSCHE 911 Convertible (996) 3.4 Carrera 4 1997 – 2005 3387 221 301
PORSCHE 911 Convertible (997) 3.8 Carrera 2005 – 2013 3800 298 405
PORSCHE 911 Convertible (997) 3.8 Carrera 4S 2005 – 2013 3824 264 359
PORSCHE 911 Convertible (997) 3.8 Turbo S 2005 – 2013 3800 395 537
PORSCHE 911 Convertible (997) 3.8 Carrera GTS 2005 – 2013 3800 304 413
PORSCHE 911 Convertible (997) 3.8 Carrera 4 GTS 2005 – 2013 3800 304 413
PORSCHE 911 Convertible (997) 3.6 Carrera 2005 – 2013 3596 235 320
PORSCHE 911 Convertible (997) 3.8 Carrera 4S 2005 – 2013 3824 261 355
PORSCHE 911 Convertible (997) 3.6 Turbo 2005 – 2013 3600 353 480
PORSCHE 911 Convertible (997) 3.8 Carrera S / GTS 2005 – 2013 3800 300 408
PORSCHE 911 Convertible (997) 3.8 Carrera 4S / 4 GTS 2005 – 2013 3800 300 408
PORSCHE 911 Convertible (997) 3.8 Turbo S 2005 – 2013 3800 390 530
PORSCHE 911 Convertible (997) 3.6 Carrera 2005 – 2013 3596 239 325
PORSCHE 911 Convertible (997) 3.8 Carrera S 2005 – 2013 3824 261 355
PORSCHE 911 Convertible (997) 3.6 Carrera 4 2005 – 2013 3596 239 325
PORSCHE 911 Convertible (997) 3.8 Carrera 4S 2005 – 2013 3824 280 381
PORSCHE 911 Convertible (997) 3.8 Carrera S 2005 – 2013 3824 280 381
PORSCHE 911 Convertible (997) 3.6 Carrera 2005 – 2013 3614 254 345
PORSCHE 911 Convertible (997) 3.8 Carrera S 2005 – 2013 3800 283 385
PORSCHE 911 Convertible (997) 3.8 Turbo 2005 – 2013 3800 368 500
PORSCHE 911 Convertible (997) 3.6 Carrera 4 2005 – 2013 3614 254 345
PORSCHE 911 Convertible (997) 3.8 Carrera 4S 2005 – 2013 3800 283 385
PORSCHE 911 Targa (997) 3.8 Carrera 4S 2006 – 2012 3800 300 408
PORSCHE 911 Targa (997) 3.8 Carrera 4S 2006 – 2012 3824 280 381
PORSCHE 911 Targa (997) 3.6 Carrera 4 2006 – 2012 3596 239 325
PORSCHE 911 Targa (997) 3.6 Carrera 4 2006 – 2012 3614 254 345
PORSCHE 911 Targa (997) 3.8 Carrera 4S 2006 – 2012 3800 283 385
PORSCHE 911 Targa (997) 3.8 Carrera 4S 2006 – 2012 3824 261 355
