Brake Disc

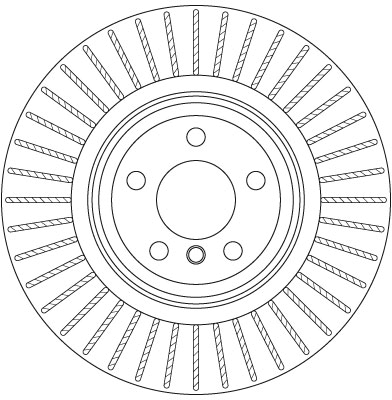

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF6311S · SKU DF6311S-TRW
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)120
Brake Disc Thickness (mm)24
Brake Disc Type Vented
Centering Diameter (mm)75
Colour black
Height (mm)64
Minimum thickness (mm)22.4
Number of Holes 5
Outer Diameter (mm)370
Surface Painted
Thread Size 16.6
Bolt Hole Circle Ø [mm] 120, Brake Disc Thickness [mm] 24, Brake Disc Type Vented, Centering Diameter [mm] 75, Colour black, Height [mm] 64, Minimum thickness [mm] 22,4, Number of Holes 5, Outer Diameter [mm] 370, Surface Painted, Thread Size 16.6
Fits: BMW

Interchangeable Part Numbers

A.B.S.18257 ATE24012402411 BORG & BECKBBD6089S BOSCH 0 986 479730 BOSCH0986479730 Brake ENGINEERINGDI956902S BREMBO09.C314.11 CAR1421595 DBA AustraliaDBA3425E DELPHIBG9078 DELPHIBG9078C FEBI BILSTEIN44028 FERODODDF2036C-1-D FERODODDF2036C-1 HELLA 8DD 355125-091 HELLA8DD355125091 MEYLE 315 5233082/PD MEYLE3155233082PD MEYLE3155230057PD OPTIMALBS-9202C OPTIMALBS-9202 PILENGAV470 REMSA61599.10 REMYRAD2526C SWAG 20 944028 SWAG20944028 TEXTAR92270003 TEXTAR92270005 TRISCAN8120111021 TRISCAN8120111021C TRUCKTEC AUTOMOTIVE0834145 ZIMMERMANN150291620

OE Numbers — BMW 34 21 6 775

291

OE Numbers — BMW

34216775291 6775291
MakeModelType / Engine YearsCCkWHP
BMW 5 Gran Turismo (F07) 535 i xDrive 2009 – 2017 2979 225 306
BMW 5 Gran Turismo (F07) 520 d 2009 – 2017 1995 135 184
BMW 5 Gran Turismo (F07) 550 i 2009 – 2017 4395 330 449
BMW 5 Gran Turismo (F07) 550 i xDrive 2009 – 2017 4395 330 449
BMW 5 Gran Turismo (F07) 530 d 2009 – 2017 2993 190 258
BMW 5 Gran Turismo (F07) 530 d xDrive 2009 – 2017 2993 190 258
BMW 5 Gran Turismo (F07) 535 d xDrive 2009 – 2017 2993 230 313
BMW 5 Gran Turismo (F07) 535 d 2009 – 2017 2993 230 313
BMW 5 Gran Turismo (F07) 535 d 2009 – 2017 2993 220 299
BMW 5 Gran Turismo (F07) 530 d xDrive 2009 – 2017 2993 180 245
BMW 5 Gran Turismo (F07) 550 i xDrive 2009 – 2017 4395 300 408
BMW 5 Gran Turismo (F07) 535 d xDrive 2009 – 2017 2993 220 299
BMW 5 Gran Turismo (F07) 530 d 2009 – 2017 2993 180 245
BMW 5 Gran Turismo (F07) 550 i 2009 – 2017 4395 300 408
BMW 5 Gran Turismo (F07) 535 i 2009 – 2017 2979 225 306
BMW 5 Gran Turismo (F07) 528 i 2009 – 2017 1997 180 245
BMW 5 Gran Turismo (F07) 550 i xDrive 2009 – 2017 3982 300 408
BMW 5 Gran Turismo (F07) 520 d 2009 – 2017 1995 120 163
BMW 5 Gran Turismo (F07) 520 d 2009 – 2017 1995 100 136
BMW 5 Gran Turismo (F07) 530 d 2009 – 2017 2993 155 211
BMW 5 Gran Turismo (F07) 535 i xDrive 2009 – 2017 2979 224 305
BMW 7 (F01, F02, F03, F04) 740 d 2008 – 2015 2993 230 313
BMW 7 (F01, F02, F03, F04) 750 i 2008 – 2015 4395 331 450
BMW 7 (F01, F02, F03, F04) 740 i, Li xDrive 2008 – 2015 2979 235 320
BMW 7 (F01, F02, F03, F04) 730 d xDrive 2008 – 2015 2993 155 211
BMW 7 (F01, F02, F03, F04) 750 i, Li xDrive 2008 – 2015 4395 330 449
BMW 7 (F01, F02, F03, F04) 750 i, Li 2008 – 2015 4395 330 449
BMW 7 (F01, F02, F03, F04) 750 Li xDrive 2008 – 2015 3982 300 408
BMW 7 (F01, F02, F03, F04) 740 i, Li 2008 – 2015 2979 224 305
BMW 7 (F01, F02, F03, F04) 740 d xDrive 2008 – 2015 2993 225 306
BMW 7 (F01, F02, F03, F04) 730 i, Li 2008 – 2015 2996 190 258
BMW 7 (F01, F02, F03, F04) 740 i, Li 2008 – 2015 2979 240 326
BMW 7 (F01, F02, F03, F04) 750 i, Li 2008 – 2015 4395 300 408
BMW 7 (F01, F02, F03, F04) 730 d 2008 – 2015 2993 180 245
BMW 7 (F01, F02, F03, F04) 750 i, Li xDrive 2008 – 2015 4395 300 408
BMW 7 (F01, F02, F03, F04) 760 i, Li 2008 – 2015 5972 400 544
BMW 7 (F01, F02, F03, F04) 740 d 2008 – 2015 2993 225 306
BMW 7 (F01, F02, F03, F04) 750 Li 2008 – 2015 4395 298 405
BMW 7 (F01, F02, F03, F04) 730 d 2008 – 2015 2993 155 211
BMW 7 (F01, F02, F03, F04) 740 i, Li 2008 – 2015 2979 235 320
BMW 7 (F01, F02, F03, F04) 730 d 2008 – 2015 2993 190 258
BMW 7 (F01, F02, F03, F04) 730 d xDrive 2008 – 2015 2993 190 258
BMW 7 (F01, F02, F03, F04) ActiveHybrid 7 2008 – 2015 4395 342 465
BMW 7 (F01, F02, F03, F04) 740 d xDrive 2008 – 2015 2993 230 313
BMW 7 (F01, F02, F03, F04) 750 d xDrive 2008 – 2015 2993 280 381
BMW 7 (F01, F02, F03, F04) ActiveHybrid 7 2008 – 2015 2979 260 354
