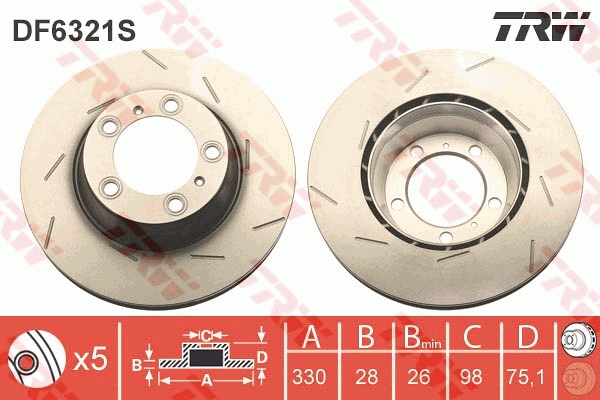

Specifications
| Bolt Hole Circle Ø (mm) | 130 |
| Bore Diameter 1 (mm) | 15.4 |
| Bore Diameter 2 (mm) | 6.6 |
| Brake Disc Thickness (mm) | 28 |
| Brake Disc Type slotted/perforated | |
| Centering Diameter (mm) | 98 |
| Colour black | |
| Height (mm) | 75.1 |
| Machining High-carbon | |
| Minimum thickness (mm) | 26 |
| Number of Holes 5 | |
| Outer Diameter (mm) | 330. paired article number DF6320S |
| Surface Painted | |
Bolt Hole Circle Ø [mm] 130, Bore Diameter 1 [mm] 15,4, Bore Diameter 2 [mm] 6,6, Brake Disc Thickness [mm] 28, Brake Disc Type slotted/perforated, Centering Diameter [mm] 98, Colour black, Height [mm] 75,1, Machining High-carbon, Minimum thickness [mm] 26, Number of Holes 5, Outer Diameter [mm] 330, paired article number DF6320S, Surface Painted
Fits: PORSCHE
Fits: PORSCHE
Interchangeable Part Numbers
OE Numbers — PORSCHE
| Make | Model | Type / Engine | Years | CC | kW | HP |
|---|---|---|---|---|---|---|
| PORSCHE | PANAMERA (970) | 3.0 D | 2009 – 2017 | 2967 | 184 | 250 |
| PORSCHE | PANAMERA (970) | 4.8 GTS | 2009 – 2017 | 4806 | 328 | 446 |
| PORSCHE | PANAMERA (970) | 4.8 Turbo S | 2009 – 2017 | 4806 | 425 | 578 |
| PORSCHE | PANAMERA (970) | 4.8 Turbo S | 2009 – 2017 | 4806 | 404 | 550 |
| PORSCHE | PANAMERA (970) | 4.8 Turbo S | 2009 – 2017 | 4806 | 419 | 570 |
| PORSCHE | PANAMERA (970) | 3.0 D | 2009 – 2017 | 2967 | 221 | 300 |
| PORSCHE | PANAMERA (970) | 3.0 4S | 2009 – 2017 | 2997 | 235 | 320 |
| PORSCHE | PANAMERA (970) | 3.0 S | 2009 – 2017 | 2997 | 235 | 320 |
| PORSCHE | PANAMERA (970) | 4.8 GTS | 2009 – 2017 | 4806 | 324 | 440 |
| PORSCHE | PANAMERA (970) | 4.8 Turbo | 2009 – 2017 | 4806 | 382 | 520 |
| PORSCHE | PANAMERA (970) | 3.6 4 | 2009 – 2017 | 3605 | 228 | 310 |
| PORSCHE | PANAMERA (970) | 3.6 | 2009 – 2017 | 3605 | 228 | 310 |
| PORSCHE | PANAMERA (970) | 3.0 4S | 2009 – 2017 | 2997 | 309 | 420 |
| PORSCHE | PANAMERA (970) | 3.0 S | 2009 – 2017 | 2997 | 309 | 420 |
| PORSCHE | PANAMERA (970) | 3.0 S E-Hybrid | 2009 – 2017 | 2995 | 279 | 380 |
| PORSCHE | PANAMERA (970) | 4.8 4S | 2009 – 2017 | 4806 | 302 | 411 |
| PORSCHE | PANAMERA (970) | 4.8 | 2009 – 2017 | 4806 | 302 | 411 |
| PORSCHE | PANAMERA (970) | 3.6 4 | 2009 – 2017 | 3605 | 220 | 300 |
| PORSCHE | PANAMERA (970) | 3.6 | 2009 – 2017 | 3605 | 220 | 300 |
| PORSCHE | PANAMERA (970) | 4.8 Turbo | 2009 – 2017 | 4806 | 368 | 500 |
| PORSCHE | PANAMERA (970) | 4.8 4S | 2009 – 2017 | 4806 | 294 | 400 |
| PORSCHE | PANAMERA (970) | 4.8 S | 2009 – 2017 | 4806 | 294 | 400 |
| PORSCHE | PANAMERA (970) | 4.8 GTS | 2009 – 2017 | 4806 | 316 | 430 |
| PORSCHE | PANAMERA (970) | 3.0 S E-Hybrid | 2009 – 2017 | 2995 | 306 | 416 |
| PORSCHE | PANAMERA (970) | 3.0 D | 2009 – 2017 | 2967 | 155 | 211 |
| PORSCHE | PANAMERA (970) | 4.8 Turbo | 2009 – 2017 | 4806 | 397 | 540 |
| PORSCHE | PANAMERA (971) | 4.0 Turbo S E-Hybrid (97AFH1, 97BFH1) | 2016 – 2023 | 3996 | 500 | 680 |
| PORSCHE | PANAMERA (971) | 4.0 GTS (97ADG1) | 2016 – 2023 | 3996 | 338 | 460 |
| PORSCHE | PANAMERA (971) | 2.9 4 (97ABY1, 97BBY1, 97BBI1, 97BBM1, 97ABI1) | 2016 – 2023 | 2894 | 243 | 330 |
| PORSCHE | PANAMERA (971) | 4.0 S 4 Diesel (97ADD1) | 2016 – 2023 | 3956 | 310 | 422 |
| PORSCHE | PANAMERA (971) | 2.9 (97AAY1, 97BAY1, 97AGY1, 97AAI1, 97BAI1, 97BAM1) | 2016 – 2023 | 2894 | 243 | 330 |
| PORSCHE | PANAMERA (971) | 4.0 GTS (97ADS1) | 2016 – 2023 | 3996 | 353 | 480 |
| PORSCHE | PANAMERA (971) | 4.0 Turbo S (97BFR1) | 2016 – 2023 | 3996 | 463 | 630 |
| PORSCHE | PANAMERA (971) | 2.9 4S E-Hybrid | 2016 – 2023 | 2894 | 412 | 560 |
| PORSCHE | PANAMERA (971) | 4.0 Turbo S E-Hybrid (97AFT1) | 2016 – 2023 | 3996 | 515 | 700 |
| PORSCHE | PANAMERA (971) | 2.9 4S (97ADB1, 97BDB1, 97ADN1) | 2016 – 2023 | 2894 | 324 | 440 |
| PORSCHE | PANAMERA (971) | 4.0 Turbo (97AFF1, 97BFF1) | 2016 – 2023 | 3996 | 404 | 550 |
| PORSCHE | PANAMERA (971) | 2.9 4 E-Hybrid (97ABE1, 97BBE1, 97ABX1) | 2016 – 2023 | 2894 | 340 | 462 |
| PORSCHE | PANAMERA (971) | 3.0 4 (97ABA1, 97BBA1) | 2016 – 2023 | 2995 | 243 | 330 |
| PORSCHE | PANAMERA (971) | 3.0 (97AAA1, 97BAA1) | 2016 – 2023 | 2995 | 243 | 330 |
| PORSCHE | PANAMERA Sport Turismo (971) | 4.0 Turbo S E-Hybrid (97CFT1) | 2017 – 2023 | 3996 | 515 | 700 |
| PORSCHE | PANAMERA Sport Turismo (971) | 4.0 S 4 Diesel (97CDD1) | 2017 – 2023 | 3956 | 310 | 422 |
| PORSCHE | PANAMERA Sport Turismo (971) | 2.9 4S E-Hybrid (97CDZ1, 97ADZ1) | 2017 – 2023 | 2894 | 412 | 560 |
| PORSCHE | PANAMERA Sport Turismo (971) | 4.0 Turbo S | 2017 – 2023 | 3996 | 463 | 630 |
| PORSCHE | PANAMERA Sport Turismo (971) | 4.0 GTS (97CDG1) | 2017 – 2023 | 3996 | 353 | 480 |
| PORSCHE | PANAMERA Sport Turismo (971) | 3.0 4 (97CBA1) | 2017 – 2023 | 2995 | 243 | 330 |
| PORSCHE | PANAMERA Sport Turismo (971) | 2.9 4 E-Hybrid (97CBE1) | 2017 – 2023 | 2894 | 340 | 462 |
| PORSCHE | PANAMERA Sport Turismo (971) | 2.9 4 (97CBY1, 97CBI1, 97CNI1) | 2017 – 2023 | 2894 | 243 | 330 |
| PORSCHE | PANAMERA Sport Turismo (971) | 2.9 4S (97CDB1) | 2017 – 2023 | 2894 | 324 | 440 |
| PORSCHE | PANAMERA Sport Turismo (971) | 4.0 GTS (97CDG1) | 2017 – 2023 | 3996 | 338 | 460 |
| PORSCHE | PANAMERA Sport Turismo (971) | 4.0 Turbo (97CFF1) | 2017 – 2023 | 3996 | 404 | 550 |
| PORSCHE | PANAMERA Sport Turismo (971) | 4.0 Turbo S E-Hybrid (97CFH1) | 2017 – 2023 | 3996 | 500 | 680 |
