Brake Disc

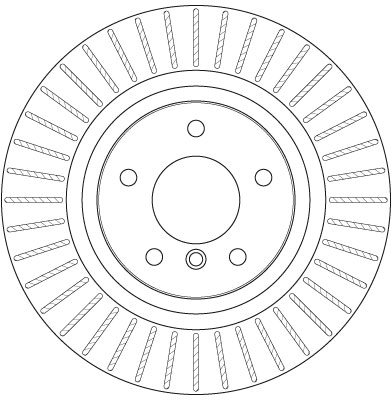

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF6352S · SKU DF6352S-TRW
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)120
Brake Disc Thickness (mm)20
Brake Disc Type Vented
Centering Diameter (mm)75
Colour black
Height (mm)71
Minimum thickness (mm)18.4
Number of Holes 5
Outer Diameter (mm)330
Surface Painted
Thread Size 16.6
Bolt Hole Circle Ø [mm] 120, Brake Disc Thickness [mm] 20, Brake Disc Type Vented, Centering Diameter [mm] 75, Colour black, Height [mm] 71, Minimum thickness [mm] 18,4, Number of Holes 5, Outer Diameter [mm] 330, Surface Painted, Thread Size 16.6
Fits: BMW

Interchangeable Part Numbers

A.B.S.18207 ATE24012002341 ATE24032002341 BENDIX562793BC BORG & BECKBBD5300 BOSCH0 986 479 727 Brake ENGINEERINGDI956989 BREMBO09.B569.1X BREMBO09B56911 CAR1421662 CIFAM8001261C DBA AustraliaDBA2885 DELPHIBG4644C FEBI BILSTEIN38577 FERODODDF2038C FERODODDF2315C-D FERODODDF2315DSL-1-D FERODODDF2315DSR-1-D FTE9071051 FTE9081101 FTEBS7346 FTEBS7346B GIRLING6063525 HELLA8DD 355 119-541 HELLA8DD 355 119-542 HELLA8DD 355 121-801 HELLA8DD 355 124-071 HELLA8DD 355 129-811 Hi-QSD5227 K27 49121371 KAWE6145510 LPRB2068V LPRB2068VR METELLI231261C MEYLE315 523 0015/PD MEYLE3155230029PD NK2015105 NK3115105 OPTIMALBS-9050C OPTIMALBS-9050 PAGID55563 PILENGAV543 sbs18152015105 SWAG20938577 TEXTAR92256303 TEXTAR92256305 TRISCAN8120111047C VALEO197576 WOKINGD6145510 ZIMMERMANN150349520 ZIMMERMANN150349552

OE Numbers — BMW

34 20 6 790 362 34 20 6 868 936 6 790 362 6 868 936
MakeModelType / Engine YearsCCkWHP
BMW X3 (F25) xDrive 30 d 2010 – 2017 2993 190 258
BMW X3 (F25) xDrive 30 d 2010 – 2017 2993 155 211
BMW X3 (F25) sDrive 28 i 2010 – 2017 1997 180 245
BMW X3 (F25) sDrive 20 i 2010 – 2017 1592 125 170
BMW X3 (F25) xDrive 28 d 2010 – 2017 1995 134 182
BMW X3 (F25) xDrive 30 d 2010 – 2017 2993 210 286
BMW X3 (F25) xDrive 30 d 2010 – 2017 2993 183 249
BMW X3 (F25) xDrive 30 d 2010 – 2017 2993 204 277
BMW X3 (F25) xDrive 28 i 2010 – 2017 2996 190 258
BMW X3 (F25) sDrive 20 i 2010 – 2017 1997 135 184
BMW X3 (F25) xDrive 20 d 2010 – 2017 1995 140 190
BMW X3 (F25) sDrive 18 d 2010 – 2017 1995 110 150
BMW X3 (F25) xDrive 20 d 2010 – 2017 1995 120 163
BMW X3 (F25) sDrive 18 d 2010 – 2017 1995 105 143
BMW X3 (F25) sDrive 18 d 2010 – 2017 1995 100 136
BMW X3 (F25) xDrive 28 i 2010 – 2017 1997 180 245
BMW X3 (F25) xDrive 20 d 2010 – 2017 1995 135 184
BMW X3 (F25) xDrive 35 i 2010 – 2017 2979 225 306
BMW X3 (F25) xDrive 20 i 2010 – 2017 1997 135 184
BMW X3 (F25) xDrive 35 d 2010 – 2017 2993 230 313
BMW X4 (F26) xDrive 28 i 2013 – 2018 1997 179 243
BMW X4 (F26) xDrive 30 d 2013 – 2018 2993 204 277
BMW X4 (F26) xDrive 30 d 2013 – 2018 2993 183 249
BMW X4 (F26) xDrive 35 i 2013 – 2018 2979 224 305
BMW X4 (F26) xDrive 30 d 2013 – 2018 2993 210 286
BMW X4 (F26) M 40 i 2013 – 2018 2979 265 360
BMW X4 (F26) xDrive 30 d 2013 – 2018 2993 155 211
BMW X4 (F26) xDrive 20 d 2013 – 2018 1995 120 163
BMW X4 (F26) xDrive 35 d 2013 – 2018 2993 230 313
BMW X4 (F26) xDrive 30 d 2013 – 2018 2993 190 258
BMW X4 (F26) xDrive 20 d 2013 – 2018 1995 140 190
BMW X4 (F26) xDrive 35 i 2013 – 2018 2979 225 306
BMW X4 (F26) xDrive 28 i 2013 – 2018 1997 180 245
BMW X4 (F26) xDrive 20 i 2013 – 2018 1997 135 184
