Brake Disc

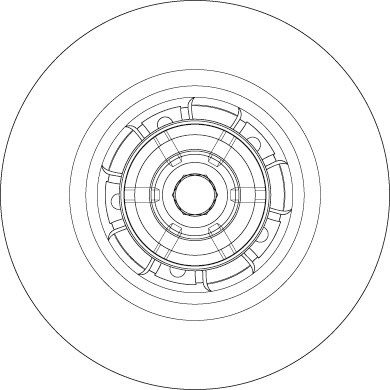

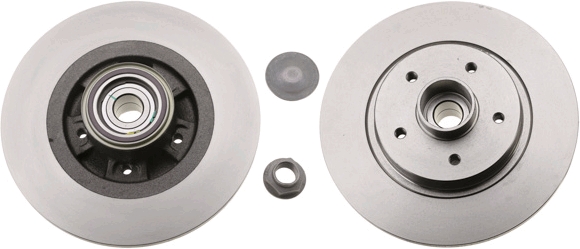

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF6355BS · SKU DF6355BS-TRW
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)108
Brake Disc Thickness (mm)11
Brake Disc Type solid
Centering Diameter (mm)30
Height (mm)90.8
Minimum thickness (mm)9.5
Number of Holes 5
Outer Diameter (mm)274
Stub Axle Diameter (mm)30
Supplementary Article/Info 2 with ABS sensor ring
Supplementary Article/Info 2 with wheel bearing
Bolt Hole Circle Ø [mm] 108, Brake Disc Thickness [mm] 11, Brake Disc Type solid, Centering Diameter [mm] 30, Height [mm] 90,8, Minimum thickness [mm] 9,5, Number of Holes 5, Outer Diameter [mm] 274, Stub Axle Diameter [mm] 30, Supplementary Article/Info 2 with ABS sensor ring, Supplementary Article/Info 2 with wheel bearing
Fits: MERCEDES-BENZ

Interchangeable Part Numbers

ATE24011101822 BORG & BECKBBD6069S BOSCH0 986 479 695 FEBI BILSTEIN38304 GIRLING6063556 METELLI231196 METZGER6110027 MEYLE0155230041 REMSA61591.20 ST-TEMPLIN0311025811 ST-TEMPLIN0311025816 SWAG60938304 TEXTAR92196200 TRUCKTEC AUTOMOTIVE0235471 ZIMMERMANN400363800 ZIMMERMANN470244120

OE Numbers — MERCEDES-BENZ

415 420 01 02 415 421 01 00 A4154200102 A4154210100
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ CITAN Box Body/MPV (W415) 108 CDI (415.601, 415.603) 2012 – 2021 1461 55 75
MERCEDES-BENZ CITAN Box Body/MPV (W415) 109 CDI (415.601, 415.603, 415.605) 2012 – 2021 1461 66 90
MERCEDES-BENZ CITAN Box Body/MPV (W415) 112 (415.603) 2012 – 2021 1197 84 114
MERCEDES-BENZ CITAN Box Body/MPV (W415) 111 CDI (415.603, 415.605) 2012 – 2021 1461 81 110
MERCEDES-BENZ CITAN Box Body/MPV (W415) 108 CDI (415.603) 2012 – 2021 1461 59 80
MERCEDES-BENZ CITAN Box Body/MPV (W415) 109 CDI (415.603, 415.605) 2012 – 2021 1461 70 95
MERCEDES-BENZ CITAN Box Body/MPV (W415) 111 CDI (415.603, 415.605) 2012 – 2021 1461 85 116
MERCEDES-BENZ CITAN Mixto (Double Cabin) (W415) 109 CDI (415.603, 415.605) 2012 – 2021 1461 66 90
MERCEDES-BENZ CITAN Mixto (Double Cabin) (W415) 111 CDI (415.603, 415.605) 2012 – 2021 1461 81 110
MERCEDES-BENZ CITAN MPV (W415) 108 CDI (415.703) 2012 – 2021 1461 55 75
MERCEDES-BENZ CITAN MPV (W415) 109 CDI (415.703) 2012 – 2021 1461 66 90
MERCEDES-BENZ CITAN MPV (W415) 111 CDI (415.703, 415.705) 2012 – 2021 1461 81 110
MERCEDES-BENZ CITAN MPV (W415) 112 (415.703) 2012 – 2021 1197 84 114
MERCEDES-BENZ CITAN MPV (W415) 108 CDI (415.703) 2012 – 2021 1461 59 80
MERCEDES-BENZ CITAN MPV (W415) 109 CDI (415.703) 2012 – 2021 1461 70 95
MERCEDES-BENZ CITAN MPV (W415) 111 CDI (415.703) 2012 – 2021 1461 85 116
