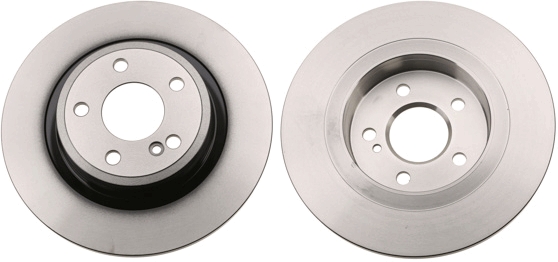

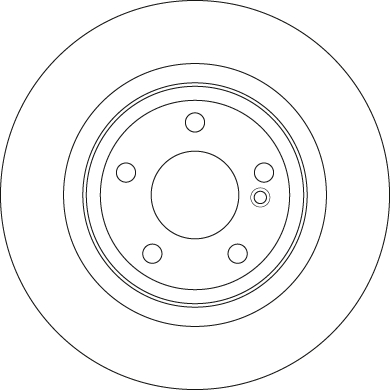

Specifications
| Bolt Hole Circle Ø (mm) | 112 |
| Brake Disc Thickness (mm) | 10 |
| Brake Disc Type solid | |
| Centering Diameter (mm) | 67 |
| Colour black | |
| Height (mm) | 41.5 |
| Minimum thickness (mm) | 8.3 |
| Number of Holes 5 | |
| Outer Diameter (mm) | 300 |
| Surface Painted | |
| Test Mark E1 90R-02 C0190/0741 | |
| Thread Size 15.2 | |
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 10, Brake Disc Type solid, Centering Diameter [mm] 67, Colour black, Height [mm] 41,5, Minimum thickness [mm] 8,3, Number of Holes 5, Outer Diameter [mm] 300, Surface Painted, Test Mark E1 90R-02 C0190/0741, Thread Size 15.2
Fits: MERCEDES-BENZ
Fits: MERCEDES-BENZ
Interchangeable Part Numbers
OE Numbers — MERCEDES-BENZ 000 423 16
OE Numbers — MERCEDES-BENZ
| Make | Model | Type / Engine | Years | CC | kW | HP |
|---|---|---|---|---|---|---|
| MERCEDES-BENZ | SLC (R172) | 250 d (172.404) | 2016 – present | 2143 | 150 | 204 |
| MERCEDES-BENZ | SLC (R172) | 180 (172.431) | 2016 – present | 1595 | 115 | 156 |
| MERCEDES-BENZ | SLC (R172) | 200 (172.434) | 2016 – present | 1991 | 135 | 184 |
| MERCEDES-BENZ | SLC (R172) | 300 (172.438) | 2016 – present | 1991 | 180 | 245 |
| MERCEDES-BENZ | SLC (R172) | AMG SLC 43 (172.466) | 2016 – present | 2996 | 270 | 367 |
| MERCEDES-BENZ | SLC (R172) | AMG SLC 43 (172.466) | 2016 – present | 2996 | 287 | 390 |
| MERCEDES-BENZ | SLC (R172) | 260 (172.435) | 2016 – present | 1991 | 155 | 211 |
