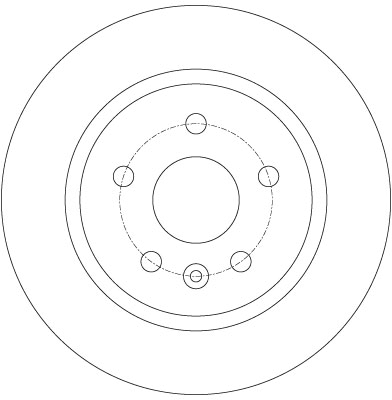

Specifications
| Bolt Hole Circle Ø (mm) | 105 |
| Brake Disc Thickness (mm) | 12 |
| Brake Disc Type solid | |
| Centering Diameter (mm) | 60 |
| Height (mm) | 45.1 |
| Minimum thickness (mm) | 10 |
| Number of Holes 5 | |
| Outer Diameter (mm) | 268 |
| Thread Size 14,3 | |
Bolt Hole Circle Ø [mm] 105, Brake Disc Thickness [mm] 12, Brake Disc Type solid, Centering Diameter [mm] 60, Height [mm] 45,1, Minimum thickness [mm] 10, Number of Holes 5, Outer Diameter [mm] 268, Thread Size 14,3
