Brake Disc

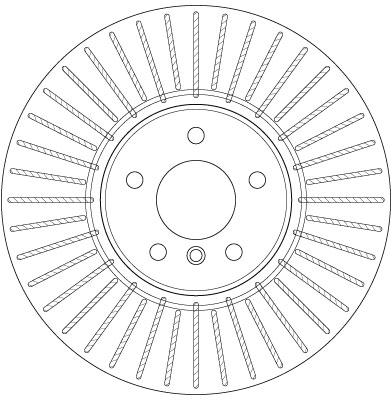

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF6408S · SKU DF6408S-TRW
Front Axle
₱30,800.00
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)120
Brake Disc Thickness (mm)36
Brake Disc Type Vented
Centering Diameter (mm)75
Colour black
Height (mm)62.1
Minimum thickness (mm)34.4
Number of Holes 5
Outer Diameter (mm)365
Surface Painted
Thread Size 16.6
Bolt Hole Circle Ø [mm] 120, Brake Disc Thickness [mm] 36, Brake Disc Type Vented, Centering Diameter [mm] 75, Colour black, Height [mm] 62,1, Minimum thickness [mm] 34,4, Number of Holes 5, Outer Diameter [mm] 365, Surface Painted, Thread Size 16.6
Fits: BMW

Supplier Cross-References

TEXTAR92161005 ZIMMERMANN150344920 FERODODDF1746 BREMBO9992111 TRWDF6408S BOSCH986479635

Interchangeable Part Numbers

A.B.S.17869 A.B.S.17869OE A.P.25119V ACDelcoAC3602D ATE24013601091 BENDIX562522BC BEWEKO6133310 BLUE PRINTADB114301 BORG & BECKBBD5824S BOSCH 0 986 479635 BOSCH0986479635 Brake ENGINEERINGDI956594S BRECOBV8728 BREMBO09992111 CAR1421561 CARHPD1561 CIFAM8001030C COMLINEADC1754V DELPHIBG9092 DJ PARTSBD2129 FEBI BILSTEIN36394 FERODODDF17461 FERODODDF1746C-1-D FREMAXBD1982 fri.tech.DF1339 FTE9071112 FTE9081187 FTEBS7353 FTEBS7353B HELLA 8DD 355117-751 HELLA8DD355117751 HELLA 8DD 355121-451 HELLA8DD355121451 HELLA 8DD 355122-912 HELLA8DD355122912 HELLA 8DD 355129-311 HELLA8DD355129311 JURID562522JC LPRB2052V MAGNETI MARELLI360406068500 METELLI231030C MEYLE 315 5210006/PD MEYLE3155210006PD MEYLE3835210006PD MINTEXMDC2330 NationalNBD1526 NK201589 NK311589 OPEN PARTSBDR254320 OPTIMALBS-8352C OPTIMALBS-8352HC OPTIMALBS-8352 PAGID54610PRO PILENGAV725 QUINTON HAZELLBDC5809 sbs1815201589 SWAG20936394 TEXTAR92161000 TEXTAR92161003 TRISCAN812011193 TRISCAN812011193C TRUCKTEC AUTOMOTIVE0834139 VAICOV2080080 VALEO197577 WOKINGD6133310

OE Numbers — BMW 34 11 6 771

982

OE Numbers — BMW

34116771982 34116793243 6771982 6793243

OE Numbers — BMW 34 11 6 793

243
MakeModelType / Engine YearsCCkWHP
BMW X5 (E70) xDrive 40 d 2006 – 2013 2993 225 306
BMW X5 (E70) 3.0 3.0d 2006 – 2013 2993 160 218
BMW X5 (E70) M 2006 – 2013 4395 414 563
BMW X5 (E70) xDrive 30 i 2006 – 2013 2996 194 264
BMW X5 (E70) xDrive 30 i 2006 – 2013 2996 172 234
BMW X5 (E70) xDrive 40 i 2006 – 2013 2979 225 306
BMW X5 (E70) xDrive 50 i 2006 – 2013 4395 298 405
BMW X5 (E70) xDrive 30 d 2006 – 2013 2993 155 211
BMW X5 (E70) M 50 d 2006 – 2013 2993 280 381
BMW X5 (E70) xDrive 35 i 2006 – 2013 2979 235 320
BMW X5 (E70) 3.0 3.0d 2006 – 2013 2993 155 211
BMW X5 (E70) M 2006 – 2013 4395 408 555
BMW X5 (E70) xDrive 35 d 2006 – 2013 2993 210 286
BMW X5 (E70) xDrive 30 d 2006 – 2013 2993 173 235
BMW X5 (E70) xDrive 48 i 2006 – 2013 4799 261 355
BMW X5 (E70) xDrive 30 i 2006 – 2013 2996 200 272
BMW X5 (E70) 3.0 sd 2006 – 2013 2993 210 286
BMW X5 (E70) xDrive 30 d 2006 – 2013 2993 180 245
BMW X5 (E70) xDrive 35 i 2006 – 2013 2979 225 306
BMW X5 (E70) xDrive 50 i 2006 – 2013 4395 300 408
BMW X5 (E70) 3.0 si 2006 – 2013 2996 200 272
BMW X5 (E70) 3.0 d 2006 – 2013 2993 173 235
BMW X5 (E70) 4.8 i xDrive 2006 – 2013 4799 261 355
BMW X5 (F15, F85) xDrive 25 d 2013 – 2018 1995 160 218
BMW X5 (F15, F85) sDrive 35 i 2013 – 2018 2979 225 306
BMW X5 (F15, F85) M 2013 – 2018 4395 423 575
BMW X5 (F15, F85) xDrive 30 d 2013 – 2018 2993 204 277
BMW X5 (F15, F85) sDrive 25 d 2013 – 2018 1995 170 231
BMW X5 (F15, F85) xDrive 25 d 2013 – 2018 1995 170 231
BMW X5 (F15, F85) xDrive 40e 2013 – 2018 1997 230 313
BMW X5 (F15, F85) xDrive 35 i 2013 – 2018 2979 240 326
BMW X5 (F15, F85) xDrive 40e 2013 – 2018 1997 205 279
BMW X5 (F15, F85) xDrive 50 i 2013 – 2018 4395 332 452
BMW X5 (F15, F85) sDrive 25 d 2013 – 2018 1995 155 211
BMW X5 (F15, F85) xDrive 25 d 2013 – 2018 1995 155 211
BMW X5 (F15, F85) xDrive 28 i 2013 – 2018 1997 180 245
BMW X5 (F15, F85) xDrive 50 i 2013 – 2018 3982 300 408
BMW X5 (F15, F85) xDrive 40 d 2013 – 2018 2993 230 313
BMW X5 (F15, F85) sDrive 25 d 2013 – 2018 1995 160 218
BMW X5 (F15, F85) xDrive 35 i 2013 – 2018 2979 225 306
BMW X5 (F15, F85) xDrive 25 d 2013 – 2018 2993 160 218
BMW X5 (F15, F85) xDrive 30 d 2013 – 2018 2993 183 249
BMW X5 (F15, F85) xDrive 50 i 2013 – 2018 4395 330 449
BMW X5 (F15, F85) xDrive 30 d 2013 – 2018 2993 210 286
BMW X5 (F15, F85) M 50 d 2013 – 2018 2993 280 381
BMW X5 (F15, F85) xDrive 30 d 2013 – 2018 2993 190 258
BMW X6 (E71, E72) xDrive 30 d 2007 – 2015 2993 173 235
BMW X6 (E71, E72) ActiveHybrid 2007 – 2015 4395 357 485
BMW X6 (E71, E72) xDrive 40 d 2007 – 2015 2993 225 306
BMW X6 (E71, E72) xDrive 30 d 2007 – 2015 2993 180 245
BMW X6 (E71, E72) xDrive 35 i 2007 – 2015 2979 224 305
BMW X6 (E71, E72) M 2007 – 2015 4395 414 563
BMW X6 (E71, E72) xDrive 50 i 2007 – 2015 4395 300 408
BMW X6 (E71, E72) xDrive 35 d 2007 – 2015 2993 210 286
BMW X6 (E71, E72) xDrive 35 i 2007 – 2015 2979 225 306
BMW X6 (E71, E72) M 2007 – 2015 4395 408 555
BMW X6 (E71, E72) xDrive 50 i 2007 – 2015 4395 330 449
BMW X6 (E71, E72) xDrive 35 i 2007 – 2015 2979 240 326
BMW X6 (E71, E72) xDrive 35 i 2007 – 2015 2979 235 320
BMW X6 (E71, E72) M 50 d 2007 – 2015 2993 280 381
BMW X6 (E71, E72) xDrive 30 d 2007 – 2015 2993 155 211
BMW X6 (F16, F86) xDrive 28 i 2014 – 2019 1997 180 245
BMW X6 (F16, F86) xDrive 30 d 2014 – 2019 2993 160 218
BMW X6 (F16, F86) xDrive 30 d 2014 – 2019 2993 183 249
BMW X6 (F16, F86) M 2014 – 2019 4395 423 575
BMW X6 (F16, F86) xDrive 30 d 2014 – 2019 2993 190 258
BMW X6 (F16, F86) xDrive 50 i 2014 – 2019 4395 330 449
BMW X6 (F16, F86) M 50 d 2014 – 2019 2993 280 381
BMW X6 (F16, F86) xDrive 30 d 2014 – 2019 2993 155 211
BMW X6 (F16, F86) xDrive 50 i 2014 – 2019 3982 300 408
BMW X6 (F16, F86) xDrive 35 i 2014 – 2019 2979 225 306
BMW X6 (F16, F86) xDrive 40 d 2014 – 2019 2993 230 313
BMW X6 (F16, F86) sDrive 35 i 2014 – 2019 2979 225 306
BMW X6 (F16, F86) xDrive 35 i 2014 – 2019 2979 240 326
BMW X6 (F16, F86) xDrive 30 d 2014 – 2019 2993 204 277
