Braking System

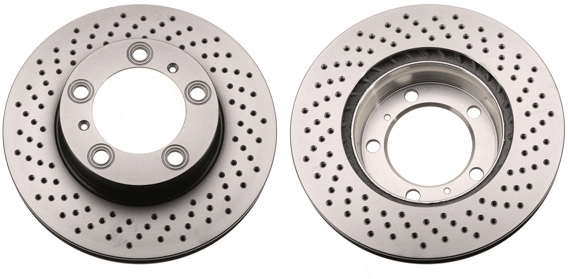

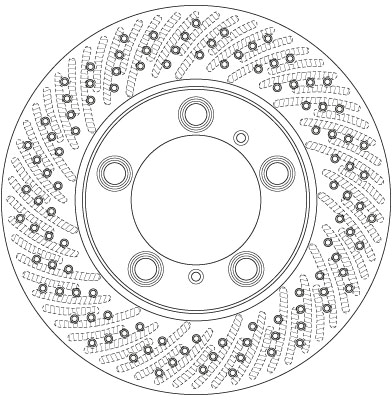

Brake Disc

Name: Brake Disc
Brand: TRW
SKU: DF6413S-TRW
Availability: OutOfStock

Part No. DF6413S · SKU DF6413S-TRW

Front Axle Left

Price on request

Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)	130
Brake Disc Thickness (mm)	24
Brake Disc Type Perforated
Brake Disc Type Vented
Centering Diameter (mm)	98
Colour black
Height (mm)	67.1
Minimum thickness (mm)	22
Number of Holes 5
Outer Diameter (mm)	298
Surface Painted
Thread Size 15.4

Bolt Hole Circle Ø [mm] 130, Brake Disc Thickness [mm] 24, Brake Disc Type Perforated, Brake Disc Type Vented, Centering Diameter [mm] 98, Colour black, Height [mm] 67,1, Minimum thickness [mm] 22, Number of Holes 5, Outer Diameter [mm] 298, Surface Painted, Thread Size 15.4
Fits: PORSCHE

Interchangeable Part Numbers

A.B.S.17875 A.P.25407 V ACDelcoAC3732D ATE24012402111 BORG & BECKBBD6001S BOSCH0 986 479 674 Brake ENGINEERINGDI956704S BREMBO09.C879.11 BREMBO09C09011 CAR1421673 DELPHIBG4769C FERODODDF2027LC-1 FERODODDF2027LDC-1-D GIRLING6064135 HELLA8DD 355 126-891 JURID562850JC-1 LPRP2016V OPEN PARTSBDR250025 OPTIMALBS-8234HC OPTIMALBS-8234 PAGID54651 PAGID54651HC PILENGAV906L REMSA61863.11 REMYRAD2226C TEXTAR92165105 TEXTAR92165110 TRISCAN8120101051C ZIMMERMANN460156820

OE Numbers — PORSCHE

987 351 401 01

Make	Model	Type / Engine	Years	CC	kW	HP
PORSCHE	BOXSTER (987)	S 3.4	2004 – 2013	3436	228	310
PORSCHE	BOXSTER (987)	S 3.4 (987.760, 987.761)	2004 – 2013	3436	235	320
PORSCHE	BOXSTER (987)	3.2	2004 – 2013	3179	191	260
PORSCHE	BOXSTER (987)	2.9	2004 – 2013	2893	155	211
PORSCHE	BOXSTER (987)	2.7	2004 – 2013	2687	162	220
PORSCHE	BOXSTER (987)	2.9	2004 – 2013	2893	188	255
PORSCHE	BOXSTER (987)	S 3.4	2004 – 2013	3387	223	303
PORSCHE	BOXSTER (987)	S 3.4	2004 – 2013	3387	217	295
PORSCHE	BOXSTER (987)	2.7	2004 – 2013	2687	180	245
PORSCHE	BOXSTER (987)	S 3.2	2004 – 2013	3179	206	280
PORSCHE	BOXSTER (987)	2.7	2004 – 2013	2687	176	240
PORSCHE	CAYMAN (987)	S 3,4 Sport	2005 – 2013	3387	223	303
PORSCHE	CAYMAN (987)	R 3.4	2005 – 2013	3436	243	330
PORSCHE	CAYMAN (987)	2.9	2005 – 2013	2893	195	265
PORSCHE	CAYMAN (987)	S 3.4	2005 – 2013	3436	235	320
PORSCHE	CAYMAN (987)	2.7	2005 – 2013	2687	180	245
PORSCHE	CAYMAN (987)	S 3.4	2005 – 2013	3387	217	295
PORSCHE	CAYMAN (987)	2.9	2005 – 2013	2893	155	211
