Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

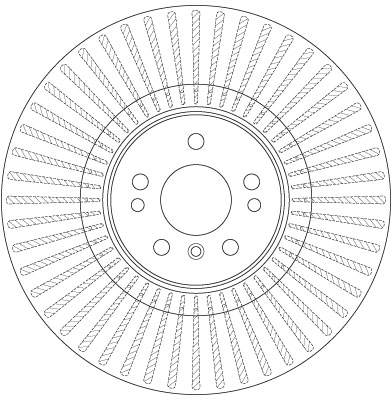

Brake Disc

Part No. DF6456S · SKU DF6456S-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)32
Brake Disc Type Vented
Centering Diameter (mm)67
Colour black
Height (mm)54.6
Minimum thickness (mm)29.1
Number of Holes 5
Outer Diameter (mm)375
Surface Painted
Thread Size 15.3
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 32, Brake Disc Type Vented, Centering Diameter [mm] 67, Colour black, Height [mm] 54,6, Minimum thickness [mm] 29,1, Number of Holes 5, Outer Diameter [mm] 375, Surface Painted, Thread Size 15.3
Fits: MERCEDES-BENZ

Interchangeable Part Numbers

A.B.S.09.R105.11 A.B.S.17833 A.B.S.17833OE A.P.25067V ATE24013201671 BLUE PRINTADU174338 BORG & BECKBBD5984S BOSCH0 986 479 A26 BOSCH0 986 479 R31 Brake ENGINEERINGDI956911S BRECOBV8656 CAR1421484 DELPHIBG9060 DELPHIBG9060C FEBI BILSTEIN43997 FERODODDF1534 FERODODDF15341 FERODODDF1534C-1-D FERODODDF1534C-1 FREMAXBD-3624 FTE9071331 FTE9081273 FTEBS7511 FTEBS7511B GIRLING6064565 HELLA8DD 355 115-421 HELLA8DD 355 121-511 HELLA8DD 355 123-022 HELLA8DD 355 128-941 KAWE6140610 LPRM2100V METELLI231206C METZGER6110516 MINTEXMDC1917 NK2033127 NK3133127 OPEN PARTSBDR252220 OPTIMALBS-8642HC OPTIMALBS-8642 PAGID54766 PAGID54766PRO PILENGAV955 QUINTON HAZELLBDC5626 REMYRAD2412C sbs18152033127 sbs18153133127 SWAG10 94 3997 TEXTAR92176603 TEXTAR92176605 TRISCAN8120231010C TRUCKTEC AUTOMOTIVE0235494 VAICOV3080088 WOKINGD6140610 ZIMMERMANN400367020

OE Numbers — MERCEDES-BENZ

164 421 06 12 164 421 15 12 A1644210612 A1644211512
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ GL-CLASS (X164) GL 320 CDI / 350 BlueTEC 4-matic (164.824, 164.825) 2006 – 2012 2987 155 211
MERCEDES-BENZ GL-CLASS (X164) GL 350 CDI 4-matic (164.823) 2006 – 2012 2987 195 265
MERCEDES-BENZ GL-CLASS (X164) GL 450 CDI 4-matic (164.828) 2006 – 2012 3996 225 306
MERCEDES-BENZ GL-CLASS (X164) GL 350 CDI 4-matic (164.822) 2006 – 2012 2987 165 224
MERCEDES-BENZ GL-CLASS (X164) GL 320 CDI 4-matic 2006 – 2012 2987 160 218
MERCEDES-BENZ GL-CLASS (X164) GL 350 CDI 4-matic 2006 – 2012 2987 170 231
MERCEDES-BENZ GL-CLASS (X164) GL 450 4-matic (164.871) 2006 – 2012 4663 250 340
MERCEDES-BENZ GL-CLASS (X164) GL 500 4-matic (164.886) 2006 – 2012 5461 285 388
MERCEDES-BENZ GL-CLASS (X164) GL 420 CDI 4-matic (164.828) 2006 – 2012 3996 225 306
MERCEDES-BENZ GL-CLASS (X164) GL 320 CDI 4-matic (164.822) 2006 – 2012 2987 165 224
MERCEDES-BENZ M-CLASS (W164) ML 320 CDI 4-matic 2005 – 2012 2987 160 218
MERCEDES-BENZ M-CLASS (W164) ML 350 CDI 4-matic (164.125, 164.124) 2005 – 2012 2987 170 231
MERCEDES-BENZ M-CLASS (W164) ML 500 4-matic (164.172) 2005 – 2012 5461 285 388
MERCEDES-BENZ M-CLASS (W164) ML 350 CDI 4-matic 2005 – 2012 2987 157 214
MERCEDES-BENZ M-CLASS (W164) ML 350 CDI 4-matic 2005 – 2012 2987 190 258
MERCEDES-BENZ M-CLASS (W164) ML 350 CDI 4-matic (164.125, 164.124) 2005 – 2012 2987 155 211
MERCEDES-BENZ M-CLASS (W164) ML 500 4-matic (164.175) 2005 – 2012 4966 218 296
MERCEDES-BENZ M-CLASS (W164) ML 300 CDI 4-matic (164.121) 2005 – 2012 2987 150 204
MERCEDES-BENZ M-CLASS (W164) ML 450 CDI 4-matic (164.128) 2005 – 2012 3996 225 306
MERCEDES-BENZ M-CLASS (W164) ML 300 CDI 4-matic (164.120) 2005 – 2012 2987 140 190
MERCEDES-BENZ M-CLASS (W164) ML 350 CDI 4-matic (164.122) 2005 – 2012 2987 165 224
MERCEDES-BENZ M-CLASS (W164) ML 300 4-matic (164.182) 2005 – 2012 2996 170 231
MERCEDES-BENZ M-CLASS (W164) ML 420 CDI 4-matic (164.128) 2005 – 2012 3996 225 306
MERCEDES-BENZ M-CLASS (W164) ML 320 CDI 4-matic (164.124, 164.125, 164.122) 2005 – 2012 2987 155 211
MERCEDES-BENZ M-CLASS (W164) ML 63 AMG 4-matic (164.177) 2005 – 2012 6208 375 510
MERCEDES-BENZ M-CLASS (W164) ML 350 (164.156) 2005 – 2012 3498 200 272
MERCEDES-BENZ M-CLASS (W164) ML 63 AMG 4-matic (164.177) 2005 – 2012 6208 375 510
MERCEDES-BENZ M-CLASS (W164) ML 320 CDI 4-matic (164.122) 2005 – 2012 2987 165 224
MERCEDES-BENZ M-CLASS (W164) ML 280 CDI 4-matic (164.120) 2005 – 2012 2987 140 190
MERCEDES-BENZ M-CLASS (W164) ML 500 4-matic (164.175) 2005 – 2012 4966 225 306
MERCEDES-BENZ M-CLASS (W164) ML 350 4-matic (164.186) 2005 – 2012 3498 200 272
MERCEDES-BENZ M-CLASS (W164) ML 450 Hybrid 4-matic (164.195) 2005 – 2012 3498 250 340
MERCEDES-BENZ R-CLASS (W251, V251) R 320 CDI 4-matic 2005 – 2017 2987 157 214
MERCEDES-BENZ R-CLASS (W251, V251) R 320 CDI 4-matic (251.125) 2005 – 2017 2987 155 211
MERCEDES-BENZ R-CLASS (W251, V251) R 320 CDI 4-matic 2005 – 2017 2987 160 218
MERCEDES-BENZ R-CLASS (W251, V251) R 350 CDI 4-matic 2005 – 2017 2987 157 214
MERCEDES-BENZ R-CLASS (W251, V251) R 63 AMG 4-matic (251.077, 251.177) 2005 – 2017 6208 375 510
MERCEDES-BENZ R-CLASS (W251, V251) R 400 4-matic (251.166) 2005 – 2017 2996 245 333
MERCEDES-BENZ R-CLASS (W251, V251) R 320 4-matic (251.163) 2005 – 2017 2996 200 272
MERCEDES-BENZ R-CLASS (W251, V251) R 300 (251.154) 2005 – 2017 2996 180 245
MERCEDES-BENZ R-CLASS (W251, V251) R 300 4-matic (251.062) 2005 – 2017 2996 170 231
MERCEDES-BENZ R-CLASS (W251, V251) R 350 CDI 4-matic (251.023, 251.123) 2005 – 2017 2987 195 265
MERCEDES-BENZ R-CLASS (W251, V251) R 500 4-matic (251.072, 251.172) 2005 – 2017 5461 285 388
MERCEDES-BENZ R-CLASS (W251, V251) R 350 CGI 4-matic (251.057, 251.157) 2005 – 2017 3498 225 306
MERCEDES-BENZ R-CLASS (W251, V251) R 350 4-matic (251.065, 251.165) 2005 – 2017 3498 200 272
MERCEDES-BENZ R-CLASS (W251, V251) R 500 4-matic (251.075, 251.175) 2005 – 2017 4966 225 306
MERCEDES-BENZ R-CLASS (W251, V251) R 320 CDI 4-matic (251.022, 251.122) 2005 – 2017 2987 165 224
MERCEDES-BENZ R-CLASS (W251, V251) R 280 CDI 4-matic (251.020) 2005 – 2017 2987 140 190
MERCEDES-BENZ R-CLASS (W251, V251) R 63 AMG 4-matic (251.077, 251.177) 2005 – 2017 6208 375 510
MERCEDES-BENZ R-CLASS (W251, V251) R 280 (251.054, 251.154) 2005 – 2017 2996 170 231
MERCEDES-BENZ R-CLASS (W251, V251) R 350 (251.056, 251.156) 2005 – 2017 3498 200 272
MERCEDES-BENZ R-CLASS (W251, V251) R 500 4-matic 2005 – 2017 4966 218 296
MERCEDES-BENZ R-CLASS (W251, V251) R 280 CDI (251.121, 251.026, 251.126) 2005 – 2017 2987 140 190
MERCEDES-BENZ R-CLASS (W251, V251) R 280 4-matic (251.062) 2005 – 2017 2996 170 231
MERCEDES-BENZ R-CLASS (W251, V251) R 300 CDI (251.021, 251.121, 251.026, 251.126) 2005 – 2017 2987 140 190
MERCEDES-BENZ R-CLASS (W251, V251) R 300 CDI 4-matic (251.020) 2005 – 2017 2987 140 190
MERCEDES-BENZ R-CLASS (W251, V251) R 350 CDI 4-matic (251.022, 251.122) 2005 – 2017 2987 165 224
MERCEDES-BENZ R-CLASS (W251, V251) R 350 CDI 4-matic (251.124, 251.125) 2005 – 2017 2987 155 211
MERCEDES-BENZ R-CLASS (W251, V251) R 300 (251.054, 251.154) 2005 – 2017 2996 170 231
