Brake Disc

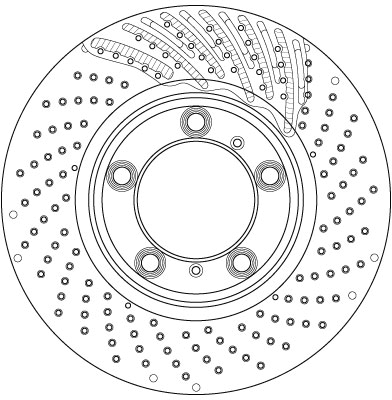

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF6464S · SKU DF6464S-TRW
Front Axle Left
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)130
Bore Diameter 1 (mm)15.4
Bore Diameter 2 (mm)6.4
Brake Disc Thickness (mm)34
Brake Disc Type slotted/perforated
Centering Diameter (mm)98
Colour black
Height (mm)69.4
Minimum thickness (mm)32
Number of Holes 5
Outer Diameter (mm)330
Surface Painted
Bolt Hole Circle Ø [mm] 130, Bore Diameter 1 [mm] 15,4, Bore Diameter 2 [mm] 6,4, Brake Disc Thickness [mm] 34, Brake Disc Type slotted/perforated, Centering Diameter [mm] 98, Colour black, Height [mm] 69,4, Minimum thickness [mm] 32, Number of Holes 5, Outer Diameter [mm] 330, Surface Painted
Fits: PORSCHE

Interchangeable Part Numbers

ATE24013401011 BENDIX562586BC BORG & BECKBBD6044S BOSCH 0 986 479579 BOSCH0986479579 BREMBO09.C877.11 BREMBO09C09211 GIRLING6064645 HELLA 8DD 355113-111 HELLA8DD355113111 JURID562586JC MINTEXMDC2354L REMYRAD2194C TEXTAR92149900 TEXTAR92149905 TEXTAR92149907 TRISCAN8120101075C ZIMMERMANN460156020

OE Numbers — PORSCHE 992 615

301

OE Numbers — PORSCHE

992615301 99635140902 99635140903 99635140904 99635140905 9P1615302A

OE Numbers — PORSCHE 996 351 409

02 03 04 05

OE Numbers — PORSCHE 9P1 615 302

A
MakeModelType / Engine YearsCCkWHP
PORSCHE 911 (997) 3.6 Turbo 2004 – 2013 3600 353 480
PORSCHE 911 (997) 3.8 GT3 2004 – 2013 3797 320 435
PORSCHE 911 (997) 3.6 Carrera 2004 – 2013 3596 235 320
PORSCHE 911 (997) 3.6 Carrera 4 2004 – 2013 3614 254 345
PORSCHE 911 (997) 3.8 Carrera 4S 2004 – 2013 3800 283 385
PORSCHE 911 (997) 3.8 GT3 RS 2004 – 2013 3797 331 450
PORSCHE 911 (997) 3.6 Turbo 2004 – 2013 3600 309 420
PORSCHE 911 (997) 3.8 Turbo 2004 – 2013 3800 368 500
PORSCHE 911 (997) 3.8 Carrera S 2004 – 2013 3800 283 385
PORSCHE 911 (997) 3.6 Carrera 2004 – 2013 3614 254 345
PORSCHE 911 (997) 3.6 GT 2 2004 – 2013 3600 390 530
PORSCHE 911 (997) 3.8 Carrera 4S 2004 – 2013 3824 280 381
PORSCHE 911 (997) 3.8 Carrera S 2004 – 2013 3824 280 381
PORSCHE 911 (997) 3.8 Turbo 2004 – 2013 3800 373 507
PORSCHE 911 (997) 3.8 GT3 RS 2004 – 2013 3800 335 456
PORSCHE 911 (997) 3.6 GT3 2004 – 2013 3600 305 415
PORSCHE 911 (997) 3.8 Carrera S / GTS 2004 – 2013 3800 300 408
PORSCHE 911 (997) 3.8 Carrera 4S / 4 GTS 2004 – 2013 3800 300 408
PORSCHE 911 (997) 3.8 Carrera 4S 2004 – 2013 3824 261 355
PORSCHE 911 (997) 3.6 Carrera 4 2004 – 2013 3596 239 325
PORSCHE 911 (997) 3.8 Carrera 4S 2004 – 2013 3824 264 359
PORSCHE 911 (997) 3.6 GT2 RS 2004 – 2013 3600 456 620
PORSCHE 911 (997) 3.8 Carrera S 2004 – 2013 3824 261 355
PORSCHE 911 (997) 3.6 GT2 RS 2004 – 2013 3600 462 628
PORSCHE 911 (997) 3.6 Carrera 2004 – 2013 3596 239 325
PORSCHE 911 (997) 3.6 Carrera 4 2004 – 2013 3596 242 329
PORSCHE 911 (997) 3.8 Turbo S 2004 – 2013 3800 390 530
PORSCHE 911 (997) 4.0 GT3 RS 2004 – 2013 3996 368 500
PORSCHE 911 (997) 3.8 Turbo S 2004 – 2013 3800 395 537
PORSCHE 911 Convertible (997) 3.8 Turbo S 2005 – 2013 3800 395 537
PORSCHE 911 Convertible (997) 3.6 Carrera 2005 – 2013 3596 235 320
PORSCHE 911 Convertible (997) 3.8 Carrera 4 GTS 2005 – 2013 3800 304 413
PORSCHE 911 Convertible (997) 3.8 Carrera GTS 2005 – 2013 3800 304 413
PORSCHE 911 Convertible (997) 3.8 Carrera 4S 2005 – 2013 3824 264 359
PORSCHE 911 Convertible (997) 3.6 Carrera 2005 – 2013 3614 254 345
PORSCHE 911 Convertible (997) 3.8 Carrera 2005 – 2013 3800 298 405
PORSCHE 911 Convertible (997) 3.8 Carrera S 2005 – 2013 3824 280 381
PORSCHE 911 Convertible (997) 3.8 Carrera S / GTS 2005 – 2013 3800 300 408
PORSCHE 911 Convertible (997) 3.8 Carrera 4S / 4 GTS 2005 – 2013 3800 300 408
PORSCHE 911 Convertible (997) 3.8 Turbo S 2005 – 2013 3800 390 530
PORSCHE 911 Convertible (997) 3.6 Carrera 2005 – 2013 3596 239 325
PORSCHE 911 Convertible (997) 3.8 Carrera S 2005 – 2013 3824 261 355
PORSCHE 911 Convertible (997) 3.6 Carrera 4 2005 – 2013 3596 239 325
PORSCHE 911 Convertible (997) 3.8 Carrera 4S 2005 – 2013 3824 261 355
PORSCHE 911 Convertible (997) 3.8 Carrera 4S 2005 – 2013 3824 280 381
PORSCHE 911 Convertible (997) 3.6 Turbo 2005 – 2013 3600 353 480
PORSCHE 911 Convertible (997) 3.8 Carrera S 2005 – 2013 3800 283 385
PORSCHE 911 Convertible (997) 3.8 Turbo 2005 – 2013 3800 368 500
PORSCHE 911 Convertible (997) 3.6 Carrera 4 2005 – 2013 3614 254 345
PORSCHE 911 Convertible (997) 3.8 Carrera 4S 2005 – 2013 3800 283 385
PORSCHE 911 Targa (997) 3.8 Carrera 4S 2006 – 2012 3800 300 408
PORSCHE 911 Targa (997) 3.8 Carrera 4S 2006 – 2012 3824 280 381
PORSCHE 911 Targa (997) 3.6 Carrera 4 2006 – 2012 3596 239 325
PORSCHE 911 Targa (997) 3.6 Carrera 4 2006 – 2012 3614 254 345
PORSCHE 911 Targa (997) 3.8 Carrera 4S 2006 – 2012 3800 283 385
PORSCHE 911 Targa (997) 3.8 Carrera 4S 2006 – 2012 3824 261 355
