Braking System

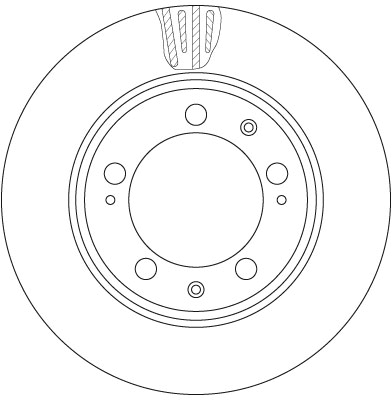

Brake Disc

Name: Brake Disc
Brand: TRW
SKU: DF6484S-TRW
Price: 33400.00 PHP
Availability: InStock

Part No. DF6484S · SKU DF6484S-TRW

Front Axle

₱33,400.00

In stock — available to order

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)	136
Brake Disc Thickness (mm)	28
Brake Disc Type Vented
Centering Diameter (mm)	103
Colour black
Height (mm)	80.1
Minimum thickness (mm)	26
Number of Holes 5
Outer Diameter (mm)	297
Surface Painted
Test Mark E1 90R-02 C0176/0492

Bolt Hole Circle Ø [mm] 136, Brake Disc Thickness [mm] 28, Brake Disc Type Vented, Centering Diameter [mm] 103, Colour black, Height [mm] 80,1, Minimum thickness [mm] 26, Number of Holes 5, Outer Diameter [mm] 297, Surface Painted, Test Mark E1 90R-02 C0176/0492
Fits: PORSCHE

Supplier Cross-References

PORSCHE96435104106 TEXTAR4019722149788 ATE24012801741 HELLA PAGID355103461 JURID561818J TRWDF6484S

Interchangeable Part Numbers

A.B.S.16115 ATE24112801741 BENDIX561818B BORG & BECKBBD5864S DELPHIBG3411 GIRLING6064845 HELLA 8DD 355103-461 HELLA8DD355103461 KAWE37721 MINTEXMDC1145 NationalNBD468 OPTIMALBS-8956C OPTIMALBS-8956 PAGID50204 PILENGAV979 REMYRAD2295C TEXTAR92064600 TEXTAR92064605 TEXTAR92064607 ZIMMERMANN460151920 ZIMMERMANN460151952

OE Numbers — PORSCHE 964 351 041

OE Numbers — PORSCHE

96435104102

Make	Model	Type / Engine	Years	CC	kW	HP
PORSCHE	911 (964)	3.6 Carrera	1988 – 1993	3600	184	250
PORSCHE	911 (964)	3.3 Turbo	1988 – 1993	3299	235	320
PORSCHE	911 (964)	3.6 Carrera 4	1988 – 1993	3600	184	250
PORSCHE	911 (964)	3.6 Carrera RS	1988 – 1993	3600	191	260
PORSCHE	911 (964)	3.6 Turbo	1988 – 1993	3600	265	360
PORSCHE	911 (964)	3.3 Turbo S	1988 – 1993	3299	261	355
PORSCHE	911 Convertible (964)	3.6 Carrera 4	1989 – 1994	3600	184	250
PORSCHE	911 Convertible (964)	3.6 Carrera	1989 – 1994	3600	184	250
PORSCHE	911 Speedster (964)	3.6 Carrera	1992 – 1994	3600	184	250
PORSCHE	911 Targa (964)	3.6 Carrera	1988 – 1993	3600	184	250
PORSCHE	911 Targa (964)	3.6 Carrera 4	1988 – 1993	3600	184	250
