Brake Disc

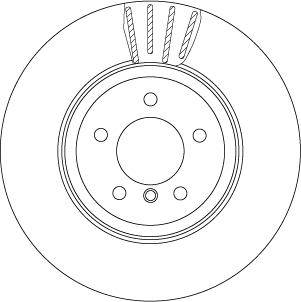

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF6625S · SKU DF6625S-TRW
Front Axle
₱28,100.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)120
Bore Diameter 1 (mm)14.5
Bore Diameter 2 (mm)12.7
Brake Disc Thickness (mm)30
Brake Disc Type two-part brake disc
Brake Disc Type Vented
Centering Diameter (mm)79
Height (mm)77.1
Machining High-carbon
Minimum thickness (mm)28.4
Number of Holes 5
Outer Diameter (mm)348
Bolt Hole Circle Ø [mm] 120, Bore Diameter 1 [mm] 14,5, Bore Diameter 2 [mm] 12,7, Brake Disc Thickness [mm] 30, Brake Disc Type two-part brake disc, Brake Disc Type Vented, Centering Diameter [mm] 79, Height [mm] 77,1, Machining High-carbon, Minimum thickness [mm] 28,4, Number of Holes 5, Outer Diameter [mm] 348
Fits: BMW

Supplier Cross-References

TEXTAR92141825 FERODODDF1701C BREMBO09C41913 TRWDF6625S BOSCH986479584

Interchangeable Part Numbers

A.B.S.18007 ABEC3B047ABE ATE24013001862 BENDIX562340B BORG & BECKBBD6031S BOSCH 0 986 479584 BOSCH0986479584 BOSCH 0 986 479E14 BOSCH0986479E14 Brake ENGINEERINGDI956483S CAR1421069 CIFAM800853C COMLINEADC1748V DBA AustraliaDBA3292E DELPHIBG9163C DENCKERMANNB130323 E.T.F.192170 FARCOM231274 FEBI BILSTEIN105719 FERODODDF1245C1 FERODODDF1701 FERODODDF1701C1 FREMAXBD3402 FTE9081323 FTEBS7226HB GIRLING6066255 HELLA 8DD 355112-281 HELLA8DD355112281 HELLA 8DD 355120-981 HELLA8DD355120981 HELLA 8DD 355133-511 HELLA8DD355133511 ICER78BD34022 JURID562401J KAGER371194 KAWE6149110 LEMFÖRDER 3080501 LEMFÖRDER3080501 LPRB2099VBR MAXTECH8730730000 METELLI230853C MEYLE 383 5211003/PD MEYLE3835211003PD MINTEXMDC2380 NationalNBD1590 NK3415103 NK3415119 OPTIMALBS-9314HC OPTIMALBS-9314 REMYRAD1661C ST-TEMPLIN0311012520 ST-TEMPLIN0311012525 SWAG 20 105719 SWAG20105719 TEXTAR92141803 TEXTAR92141805 TEXTAR92310205 TOPRAN501189 TRISCAN812011176C VAICOV2080061 WOKINGD6149110 ZIMMERMANN150343420

OE Numbers — BMW 34 11 6 763

824

OE Numbers — BMW

34116763824 6763824
MakeModelType / Engine YearsCCkWHP
BMW 5 (E60) 525 i 2001 – 2010 2996 155 211
BMW 5 (E60) 528 i 2001 – 2010 2996 172 234
BMW 5 (E60) 530 i 2001 – 2010 2979 168 228
BMW 5 (E60) 528 i xDrive 2001 – 2010 2996 172 234
BMW 5 (E60) 530 xi 2001 – 2010 2996 200 272
BMW 5 (E60) 520 d 2001 – 2010 1995 125 170
BMW 5 (E60) 525 i 2001 – 2010 2996 160 218
BMW 5 (E60) 525 i 2001 – 2010 2494 137 186
BMW 5 (E60) 530 i 2001 – 2010 2996 168 228
BMW 5 (E60) 520 i 2001 – 2010 2171 125 170
BMW 5 (E60) 530 i 2001 – 2010 2979 170 231
BMW 5 (E60) 530 d 2001 – 2010 2993 160 218
BMW 5 (E60) 525 i 2001 – 2010 2494 141 192
BMW 5 (E60) 545 i 2001 – 2010 4398 245 333
BMW 5 (E60) 525 d 2001 – 2010 2497 130 177
BMW 5 (E60) M5 2001 – 2010 4999 373 507
BMW 5 (E60) 535 d 2001 – 2010 2993 200 272
BMW 5 (E60) 530 i 2001 – 2010 2996 190 258
BMW 5 (E60) 523 i 2001 – 2010 2497 130 177
BMW 5 (E60) 525 i 2001 – 2010 2497 160 218
BMW 5 (E60) 540 i 2001 – 2010 4000 225 306
BMW 5 (E60) 550 i 2001 – 2010 4799 270 367
BMW 5 (E60) 520 d 2001 – 2010 1995 120 163
BMW 5 (E60) 530 d 2001 – 2010 2993 170 231
BMW 5 (E60) 525 xi 2001 – 2010 2497 160 218
BMW 5 (E60) 530 xi 2001 – 2010 2996 190 258
BMW 5 (E60) 530 xd 2001 – 2010 2993 170 231
BMW 5 (E60) 525 d 2001 – 2010 2497 120 163
BMW 5 (E60) 520 d 2001 – 2010 1995 110 150
BMW 5 (E60) 535 d 2001 – 2010 2993 210 286
BMW 5 (E60) 525 i 2001 – 2010 2996 160 218
BMW 5 (E60) 525 xi 2001 – 2010 2996 160 218
BMW 5 (E60) 523 i 2001 – 2010 2497 140 190
BMW 5 (E60) 525 d 2001 – 2010 2993 145 197
BMW 5 (E60) 530 d 2001 – 2010 2993 173 235
BMW 5 (E60) 530 xd 2001 – 2010 2993 173 235
BMW 5 (E60) 530 i 2001 – 2010 2996 200 272
BMW 5 (E60) 530 xi 2001 – 2010 2996 200 272
BMW 5 (E60) 530 i 2001 – 2010 2996 187 254
BMW 5 (E60) 535 i 2001 – 2010 2979 225 306
BMW 5 (E60) 525 xd 2001 – 2010 2993 145 197
BMW 5 (E60) 520 d 2001 – 2010 1995 130 177
BMW 5 (E60) 520 i 2001 – 2010 1995 125 170
BMW 5 (E60) 520 i 2001 – 2010 1995 120 163
BMW 5 (E60) 525 i xDrive 2001 – 2010 2996 160 218
BMW 5 (E60) 530 i xDrive 2001 – 2010 2996 200 272
BMW 5 (E60) 525 d xDrive 2001 – 2010 2993 145 197
BMW 5 (E60) 530 d xDrive 2001 – 2010 2993 173 235
BMW 5 (E60) 545 i 2001 – 2010 4398 242 329
BMW 5 (E60) 550 i 2001 – 2010 4799 261 355
BMW 5 (E60) 535 i xDrive 2001 – 2010 2979 224 305
BMW 5 (E60) 530 d 2001 – 2010 2993 155 211
BMW 5 (E60) 520 i 2001 – 2010 1995 115 156
BMW 5 (E60) 540 i 2001 – 2010 4000 220 299
BMW 5 (E60) 535 i 2001 – 2010 2979 224 305
BMW 5 (E60) 535 xi 2001 – 2010 2979 225 306
BMW 5 (E60) 523 i 2001 – 2010 2497 140 190
BMW 5 (E60) 530 i 2001 – 2010 2996 200 272
BMW 5 (E60) 525 i 2001 – 2010 2497 155 211
BMW 5 Touring (E61) 525 i 2004 – 2010 2494 141 192
BMW 5 Touring (E61) 545 i 2004 – 2010 4398 245 333
BMW 5 Touring (E61) 530 d 2004 – 2010 2993 160 218
BMW 5 Touring (E61) 525 d 2004 – 2010 2497 130 177
BMW 5 Touring (E61) 535 d 2004 – 2010 2993 200 272
BMW 5 Touring (E61) 530 i 2004 – 2010 2996 190 258
BMW 5 Touring (E61) 523 i 2004 – 2010 2497 130 177
BMW 5 Touring (E61) 525 i 2004 – 2010 2497 160 218
BMW 5 Touring (E61) 550 i 2004 – 2010 4799 270 367
BMW 5 Touring (E61) 530 d 2004 – 2010 2993 170 231
BMW 5 Touring (E61) 530 xd 2004 – 2010 2993 170 231
BMW 5 Touring (E61) 525 xi 2004 – 2010 2497 160 218
BMW 5 Touring (E61) 530 xi 2004 – 2010 2996 190 258
BMW 5 Touring (E61) 520 d 2004 – 2010 1995 120 163
BMW 5 Touring (E61) 525 d 2004 – 2010 2497 120 163
BMW 5 Touring (E61) 520 d 2004 – 2010 1995 110 150
BMW 5 Touring (E61) 525 d 2004 – 2010 2993 145 197
BMW 5 Touring (E61) 530 d 2004 – 2010 2993 173 235
BMW 5 Touring (E61) 530 xd 2004 – 2010 2993 173 235
BMW 5 Touring (E61) 530 i 2004 – 2010 2996 200 272
BMW 5 Touring (E61) 530 xi 2004 – 2010 2996 200 272
BMW 5 Touring (E61) 525 i 2004 – 2010 2996 160 218
BMW 5 Touring (E61) 525 xi 2004 – 2010 2996 160 218
BMW 5 Touring (E61) 535 d 2004 – 2010 2993 210 286
BMW 5 Touring (E61) 523 i 2004 – 2010 2497 140 190
BMW 5 Touring (E61) M5 2004 – 2010 4999 373 507
BMW 5 Touring (E61) 525 xd 2004 – 2010 2993 145 197
BMW 5 Touring (E61) 520 d 2004 – 2010 1995 130 177
BMW 5 Touring (E61) 520 i 2004 – 2010 1995 125 170
BMW 5 Touring (E61) 525 i xDrive 2004 – 2010 2996 160 218
BMW 5 Touring (E61) 530 i xDrive 2004 – 2010 2996 200 272
BMW 5 Touring (E61) 525 d xDrive 2004 – 2010 2993 145 197
BMW 5 Touring (E61) 530 d xDrive 2004 – 2010 2993 173 235
BMW 5 Touring (E61) 535 xi 2004 – 2010 2979 224 305
BMW 5 Touring (E61) 530 d 2004 – 2010 2993 155 211
BMW 5 Touring (E61) 520 i 2004 – 2010 1995 120 163
BMW 5 Touring (E61) 530 i 2004 – 2010 2996 200 272
BMW 5 Touring (E61) 523 i 2004 – 2010 2497 140 190
BMW 5 Touring (E61) 525 i 2004 – 2010 2996 155 211
BMW 5 Touring (E61) 525 i 2004 – 2010 2497 155 211
BMW 5 Touring (E61) 530 xi 2004 – 2010 2996 200 272
BMW 6 (E63) 630 Ci 2003 – 2010 2979 190 258
BMW 6 (E63) 645 Ci 2003 – 2010 4398 245 333
BMW 6 (E63) 630 i 2003 – 2010 2996 190 258
BMW 6 (E63) 650 i 2003 – 2010 4799 270 367
BMW 6 (E63) M 2003 – 2010 4999 373 507
BMW 6 (E63) 630 i 2003 – 2010 2996 200 272
BMW 6 (E63) 635 d 2003 – 2010 2993 210 286
BMW 6 (E63) 645 Ci 2003 – 2010 4398 242 329
BMW 6 (E63) 630 i 2003 – 2010 2996 200 272
BMW 6 Convertible (E64) 645 Ci 2004 – 2010 4398 245 333
BMW 6 Convertible (E64) 630 i 2004 – 2010 2996 190 258
BMW 6 Convertible (E64) 650 i 2004 – 2010 4799 270 367
BMW 6 Convertible (E64) M6 2004 – 2010 4999 373 507
BMW 6 Convertible (E64) 635 d 2004 – 2010 2993 210 286
BMW 6 Convertible (E64) 630 i 2004 – 2010 2996 200 272
BMW 6 Convertible (E64) 645 Ci 2004 – 2010 4398 242 329
BMW 6 Convertible (E64) 630 i 2004 – 2010 2996 200 272
