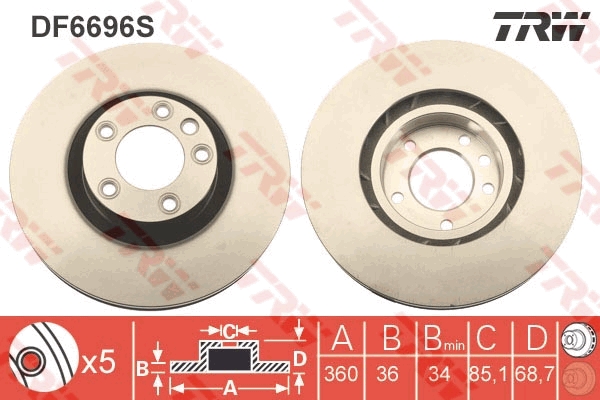

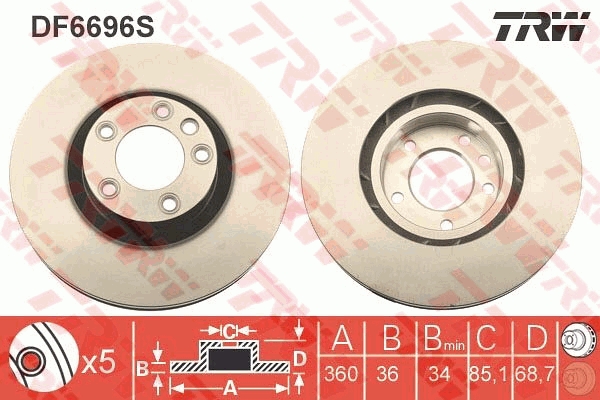

Brake Disc
Brake Disc 1 Brake Disc 2 Brake Disc 3
Braking System

Brake Disc

Part No. DF6696S · SKU DF6696S-TRW
Front Axle Right
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)130
Bore Diameter 1 (mm)15.5
Bore Diameter 2 (mm)16.5
Brake Disc Thickness (mm)36
Brake Disc Type Vented
Centering Diameter (mm)85.1
Colour black
Height (mm)68.7
Minimum thickness (mm)34
Number of Holes 5
Outer Diameter (mm)360. paired article number DF6697S
Surface Painted
Bolt Hole Circle Ø [mm] 130, Bore Diameter 1 [mm] 15,5, Bore Diameter 2 [mm] 16,5, Brake Disc Thickness [mm] 36, Brake Disc Type Vented, Centering Diameter [mm] 85,1, Colour black, Height [mm] 68,7, Minimum thickness [mm] 34, Number of Holes 5, Outer Diameter [mm] 360, paired article number DF6697S, Surface Painted
Fits: PORSCHE, VW

Interchangeable Part Numbers

ABEC3W051ABE ATE24013601241 BORG & BECKBBD5995S BOSCH0 986 479 B13 BOSCH0 986 479 V02 CAR1421705 DELPHIBG9101C DELPHIBG9101C-18B1 E.T.F.193024 FEBI BILSTEIN44080 FEBI BILSTEIN44082 FERODODDF2019RC-1 fri.tech.DF1448 FTE9071168 FTE9081157 FTEBS7796 FTEBS7796B HELLA8DD 355 123-211 HELLA8DD 355 123-221 HELLA PAGID8DD 355 133-861 KAWE6141910 LPRV2018V MEYLE1835210044PD NK2047152 NK3147152 OPEN PARTSBDR257420 OPTIMALBS-9232HC OPTIMALBS-9232 PILENGAV997R REMYRAD1657C ROADHOUSE61907.10 sbs18152047152 sbs18153147152 SWAG30 94 4080 SWAG30 94 4082 TEXTAR92219605 TEXTAR92219610 TEXTAR92262705 TRISCAN8120291064C TRISCAN9120291064 WOKINGD6141910 ZIMMERMANN600324820

OE Numbers — PORSCHE

958 351 404 00 958 351 404 01

OE Numbers — VW

7P6 615 302 A 7P6 615 302 B
MakeModelType / Engine YearsCCkWHP
PORSCHE CAYENNE (92A) 3.0 Diesel 2010 – 2018 2967 193 262
PORSCHE CAYENNE (92A) 3.0 S Hybrid 2010 – 2018 2995 279 379
PORSCHE CAYENNE (92A) 3.6 S 2010 – 2018 3604 313 426
PORSCHE CAYENNE (92A) 3.6 GTS 2010 – 2018 3604 328 446
PORSCHE CAYENNE (92A) 3.6 2010 – 2018 3598 224 305
PORSCHE CAYENNE (92A) 3.0 Diesel 2010 – 2018 2967 245 333
PORSCHE CAYENNE (92A) 4.8 Turbo S 2010 – 2018 4806 419 570
PORSCHE CAYENNE (92A) 3.6 GTS 2010 – 2018 3604 324 440
PORSCHE CAYENNE (92A) 3.0 Diesel 2010 – 2018 2967 184 250
PORSCHE CAYENNE (92A) 4.8 Turbo 2010 – 2018 4806 382 520
PORSCHE CAYENNE (92A) 3.6 S 2010 – 2018 3604 309 420
PORSCHE CAYENNE (92A) 4.2 S Diesel 2010 – 2018 4134 283 385
PORSCHE CAYENNE (92A) 4.8 Turbo 2010 – 2018 4806 368 500
PORSCHE CAYENNE (92A) 4.8 Turbo S 2010 – 2018 4806 405 550
PORSCHE CAYENNE (92A) 4.2 S Diesel 2010 – 2018 4134 281 382
PORSCHE CAYENNE (92A) 4.8 GTS 2010 – 2018 4806 309 420
PORSCHE CAYENNE (92A) 3.0 S E-Hybrid 2010 – 2018 2995 306 416
PORSCHE CAYENNE (92A) 4.8 S 2010 – 2018 4806 294 400
PORSCHE CAYENNE (92A) 3.6 2010 – 2018 3598 220 300
PORSCHE CAYENNE (92A) 3.0 Diesel 2010 – 2018 2967 155 211
PORSCHE CAYENNE (92A) 3.0 S 2010 – 2018 2995 245 333
PORSCHE CAYENNE (92A) 4.8 Turbo 2010 – 2018 4806 397 540
PORSCHE CAYENNE (92A) 3.0 Diesel 2010 – 2018 2967 180 245
PORSCHE CAYENNE (92A) 3.0 Diesel 2010 – 2018 2967 176 239
