Braking System

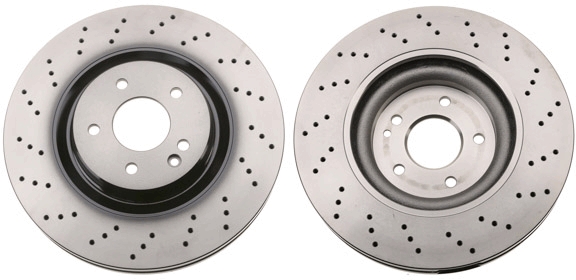

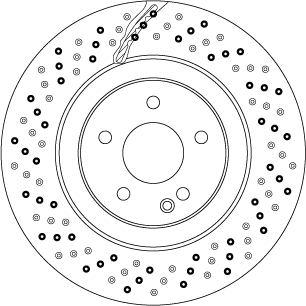

Brake Disc

Name: Brake Disc
Brand: TRW
SKU: DF6741S-TRW
Price: 16300.00 PHP
Availability: InStock

Part No. DF6741S · SKU DF6741S-TRW

Front Axle

₱16,300.00

In stock — available to order

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)	112
Bore Diameter 1 (mm)	13.3
Bore Diameter 2 (mm)	9.2
Brake Disc Thickness (mm)	32
Brake Disc Type perforated/vented
Centering Diameter (mm)	67
Colour black
Height (mm)	51.5
Minimum thickness (mm)	30
Number of Holes 5
Outer Diameter (mm)	334
Surface Painted

Bolt Hole Circle Ø [mm] 112, Bore Diameter 1 [mm] 13,3, Bore Diameter 2 [mm] 9,2, Brake Disc Thickness [mm] 32, Brake Disc Type perforated/vented, Centering Diameter [mm] 67, Colour black, Height [mm] 51,5, Minimum thickness [mm] 30, Number of Holes 5, Outer Diameter [mm] 334, Surface Painted
Fits: MERCEDES-BENZ

Supplier Cross-References

TEXTAR4019722264269 ZIMMERMANN400363000 ATE24013201471 HELLA PAGID355110141 BREMBO09D23121 TRWDF6741S

Interchangeable Part Numbers

A.B.S.17391 A.P. 25698V A.P.25698V BORG & BECKBBD5831S CAR1421103 DELPHIBG9059 GIRLING6067415 HELLA 8DD 355110-141 HELLA8DD355110141 HELLA 8DD 355122-662 HELLA8DD355122662 LPRM2008V OPTIMALBS-8998C OPTIMALBS-8998 QUINTON HAZELLBDC5861 TEXTAR92123800

OE Numbers — MERCEDES-BENZ 129 421 23

OE Numbers — MERCEDES-BENZ

1294212312 A1294212312

Make	Model	Type / Engine	Years	CC	kW	HP
MERCEDES-BENZ	SL (R129)	280 (129.059)	1989 – 2004	2799	150	204
MERCEDES-BENZ	SL (R129)	SL 320 (129.063)	1989 – 2004	3199	162	220
MERCEDES-BENZ	SL (R129)	300 SL	1989 – 2004	2962	162	220
MERCEDES-BENZ	SL (R129)	55 AMG	1989 – 2004	5439	350	476
MERCEDES-BENZ	SL (R129)	600 SL (129.076)	1989 – 2004	5987	300	408
MERCEDES-BENZ	SL (R129)	SL 73 AMG (129.076)	1989 – 2004	7291	386	525
MERCEDES-BENZ	SL (R129)	55 AMG	1989 – 2004	5439	260	354
MERCEDES-BENZ	SL (R129)	500 (129.068)	1989 – 2004	4966	225	306
MERCEDES-BENZ	SL (R129)	320 (129.064)	1989 – 2004	3199	165	224
MERCEDES-BENZ	SL (R129)	280 (129.058)	1989 – 2004	2799	142	193
MERCEDES-BENZ	SL (R129)	60 AMG (129.067)	1989 – 2004	5956	280	381
MERCEDES-BENZ	SL (R129)	600 (129.076)	1989 – 2004	5987	290	394
MERCEDES-BENZ	SL (R129)	500 SL (129.066)	1989 – 2004	4973	240	326
MERCEDES-BENZ	SL (R129)	500 (129.067)	1989 – 2004	4973	235	320
MERCEDES-BENZ	SL (R129)	320 (129.063)	1989 – 2004	3199	170	231
MERCEDES-BENZ	SL (R129)	300 SL-24 (129.061)	1989 – 2004	2960	170	231
MERCEDES-BENZ	SL (R129)	300 SL (129.060)	1989 – 2004	2960	140	190
