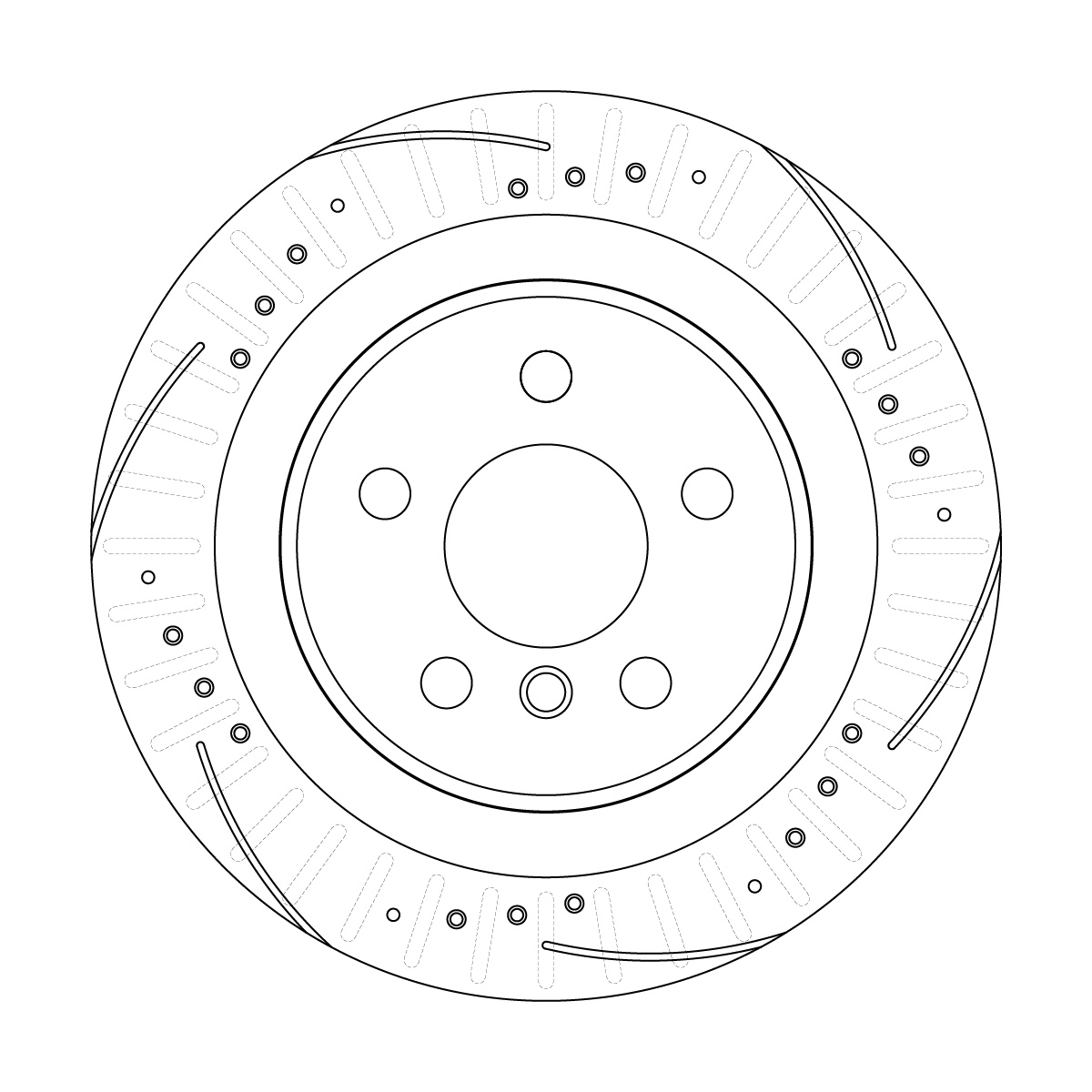

Brake Disc
Braking System

Brake Disc

Part No. DF6755SR · SKU DF6755SR-TRW
Rear Axle Right
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)20
Brake Disc Type Vented
Centering Diameter (mm)67
Height (mm)50.6
Minimum thickness (mm)18.4
Number of Holes 5
Outer Diameter (mm)300
Thread Size 16.7
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 20, Brake Disc Type Vented, Centering Diameter [mm] 67, Height [mm] 50,6, Minimum thickness [mm] 18,4, Number of Holes 5, Outer Diameter [mm] 300, Thread Size 16.7
Fits: BMW, BMW (BRILLIANCE), MINI

Interchangeable Part Numbers

ATE24.0120-0244.1 BOSCH0 986 479 C95 BREMBO09.C743.11 BREMBO09.C743.1E DELPHIBG4778C FEBI BILSTEIN171479 HELLA8DD 355 122-631 LPRB2080V MEYLE315 523 0064/PD NK2015117 NK3115117 SWAG33 10 0918 TEXTAR92274503

OE Numbers — BMW

34 21 6 799 369 34206891086 6 799 369 6 891 086
MakeModelType / Engine YearsCCkWHP
BMW 2 Active Tourer (F45) 225 i 2013 – 2021 1998 170 231
BMW 2 Active Tourer (F45) 225 xe Plug-in-Hybrid 2013 – 2021 1499 162 220
BMW 2 Active Tourer (F45) 220 i 2013 – 2021 1998 131 178
BMW 2 Active Tourer (F45) 218 i 2013 – 2021 1499 103 140
BMW 2 Active Tourer (F45) 216 i 2013 – 2021 1499 80 109
BMW 2 Active Tourer (F45) 220 i Flex 2013 – 2021 1998 141 192
BMW 2 Active Tourer (F45) 218 d xDrive 2013 – 2021 1995 100 136
BMW 2 Active Tourer (F45) 218 d xDrive 2013 – 2021 1995 110 150
BMW 2 Active Tourer (F45) 225 xe Plug-in-Hybrid 2013 – 2021 1499 165 224
BMW 2 Active Tourer (F45) 216 i 2013 – 2021 1499 75 102
BMW 2 Active Tourer (F45) 220 i 2013 – 2021 1998 120 163
BMW 2 Active Tourer (F45) 220 d xDrive 2013 – 2021 1995 120 163
BMW 2 Active Tourer (F45) 220 d 2013 – 2021 1995 120 163
BMW 2 Active Tourer (F45) 218 d 2013 – 2021 1995 100 136
BMW 2 Active Tourer (F45) 218 i 2013 – 2021 1499 100 136
BMW 2 Active Tourer (F45) 218 d 2013 – 2021 1995 110 150
BMW 2 Active Tourer (F45) 216 d 2013 – 2021 1496 85 116
BMW 2 Active Tourer (F45) 220 d 2013 – 2021 1995 140 190
BMW 2 Active Tourer (F45) 214 d 2013 – 2021 1496 70 95
BMW 2 Active Tourer (F45) 220 d xDrive 2013 – 2021 1995 140 190
BMW 2 Active Tourer (F45) 225 i xDrive 2013 – 2021 1998 170 231
BMW 2 Active Tourer (F45) 220 i 2013 – 2021 1998 141 192
BMW X1 (F48) xDrive 20 d 2014 – 2022 1995 140 190
BMW X1 (F48) xDrive 20 i 2014 – 2022 1998 131 178
BMW X1 (F48) sDrive 20 i 2014 – 2022 1998 131 178
BMW X1 (F48) sDrive 20 i ActiveFlex 2014 – 2022 1998 141 192
BMW X1 (F48) xDrive 25 i ActiveFlex 2014 – 2022 1998 170 231
BMW X1 (F48) xDrive 25 e Plug-in-Hybrid 2014 – 2022 1499 162 220
BMW X1 (F48) sDrive 18 i 2014 – 2022 1499 103 140
BMW X1 (F48) sDrive 28 i 2014 – 2022 1998 170 231
BMW X1 (F48) sDrive 20 d 2014 – 2022 1995 120 163
BMW X1 (F48) xDrive 18 d 2014 – 2022 1995 110 150
BMW X1 (F48) sDrive 18 i 2014 – 2022 1499 100 136
BMW X1 (F48) xDrive 25 d 2014 – 2022 1995 170 231
BMW X1 (F48) sDrive 18 d 2014 – 2022 1995 110 150
BMW X1 (F48) xDrive 25 i 2014 – 2022 1998 170 231
BMW X1 (F48) sDrive 20 i 2014 – 2022 1998 141 192
BMW X1 (F48) sDrive 18 d 2014 – 2022 1995 100 136
BMW X1 (F48) xDrive 20 d 2014 – 2022 1995 120 163
BMW X1 (F48) xDrive 20 i 2014 – 2022 1998 141 192
BMW X1 (F48) xDrive 18 d 2014 – 2022 1995 100 136
BMW X1 (F48) sDrive 16 d 2014 – 2022 1496 85 116
BMW X1 (F48) sDrive 20 d 2014 – 2022 1995 140 190
BMW X2 (F39) sDrive 20 d 2017 – 2023 1995 120 163
BMW X2 (F39) sDrive 20 i 2017 – 2023 1998 141 192
BMW X2 (F39) xDrive 20 i 2017 – 2023 1998 131 178
BMW X2 (F39) sDrive 20 i 2017 – 2023 1998 131 178
BMW X2 (F39) xDrive 20 d 2017 – 2023 1995 140 190
BMW X2 (F39) xDrive 25 e Plug-in-Hybrid 2017 – 2023 1499 162 220
BMW X2 (F39) sDrive 20 i ActiveFlex 2017 – 2023 1998 141 192
BMW X2 (F39) sDrive 18 i ActiveFlex 2017 – 2023 1499 100 136
BMW X2 (F39) xDrive 25 d 2017 – 2023 1995 170 231
BMW X2 (F39) xDrive 18 d 2017 – 2023 1995 110 150
BMW X2 (F39) xDrive 20 d 2017 – 2023 1995 120 163
BMW X2 (F39) sDrive 16 d 2017 – 2023 1496 85 116
BMW X2 (F39) M35 i 2017 – 2023 1998 225 306
BMW X2 (F39) sDrive 20 d 2017 – 2023 1995 140 190
BMW X2 (F39) xDrive 18 d 2017 – 2023 1995 100 136
BMW X2 (F39) sDrive 18 d 2017 – 2023 1995 100 136
BMW X2 (F39) sDrive 18 i 2017 – 2023 1499 100 136
BMW X2 (F39) sDrive 18 d 2017 – 2023 1995 110 150
BMW X2 (F39) sDrive 28 i 2017 – 2023 1998 170 231
BMW X2 (F39) xDrive 20 i 2017 – 2023 1998 141 192
BMW X2 (F39) sDrive 18 i 2017 – 2023 1499 103 140
BMW X2 (F39) xDrive 28 i 2017 – 2023 1998 170 231
