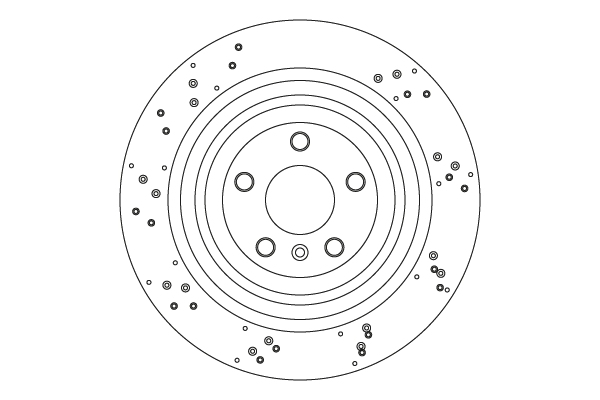

Brake Disc
Braking System

Brake Disc

Part No. DF6849S · SKU DF6849S-TRW
Rear Axle
₱63,800.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)22
Brake Disc Type perforated/vented
Centering Diameter (mm)67
Colour black
Height (mm)54
Machining High-carbon
Minimum thickness (mm)19.4
Number of Holes 5
Outer Diameter (mm)345
Surface Painted
Test Mark E1 90R-02 C0838/2509
Thread Size 15,3
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 22, Brake Disc Type perforated/vented, Centering Diameter [mm] 67, Colour black, Height [mm] 54, Machining High-carbon, Minimum thickness [mm] 19,4, Number of Holes 5, Outer Diameter [mm] 345, Surface Painted, Test Mark E1 90R-02 C0838/2509, Thread Size 15,3
Fits: MERCEDES-BENZ

Supplier Cross-References

TEXTAR92283703 FERODODDF2209C ATE24012202971 BREMBO09A96121 TRWDF6849S BOSCH0986479D62

Interchangeable Part Numbers

BOSCH 0 986 479D62 BOSCH 0 986 AB5957 BOSCH0986AB5957 DELPHIBG5207C FEBI BILSTEIN106606 FERODODDF2209DC-D FTE9081347 HELLA 8DD 355126-281 HELLA8DD355126281 NK3133142 SWAG 10 106606 SWAG10106606 TEXTAR92283705

OE Numbers — MERCEDES-BENZ 166 423 03

12

OE Numbers — MERCEDES-BENZ

1664230312 A1664230312
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ GL-CLASS (X166) GL 350 CDI / BlueTEC 4-matic (166.824) 2012 – 2015 2987 183 249
MERCEDES-BENZ GL-CLASS (X166) GL 500 4-matic (166.873) 2012 – 2015 4663 300 408
MERCEDES-BENZ GL-CLASS (X166) GL 63 AMG 4-matic (166.874) 2012 – 2015 5461 400 544
MERCEDES-BENZ GL-CLASS (X166) GL 500 4-matic (166.871) 2012 – 2015 3996 310 422
MERCEDES-BENZ GL-CLASS (X166) GL 450 4-matic 2012 – 2015 2996 270 367
MERCEDES-BENZ GL-CLASS (X166) GL 400 4-matic (166.856) 2012 – 2015 2996 245 333
MERCEDES-BENZ GL-CLASS (X166) GL 350 CDI / BlueTEC 4-matic (166.824) 2012 – 2015 2987 179 243
MERCEDES-BENZ GL-CLASS (X166) GL 450 4-matic (166.872) 2012 – 2015 4663 270 367
MERCEDES-BENZ GL-CLASS (X166) GL 63 AMG 4-matic 2012 – 2015 5461 405 551
MERCEDES-BENZ GL-CLASS (X166) GL 350 CDI / BlueTec 4-matic (166.823, 166.824) 2012 – 2015 2987 190 258
MERCEDES-BENZ GL-CLASS (X166) GL 500 4-matic (166.873) 2012 – 2015 4663 320 435
MERCEDES-BENZ GL-CLASS (X166) GL 63 AMG 4-matic (166.874) 2012 – 2015 5461 410 558
MERCEDES-BENZ M-CLASS (W166) ML 350 CDI 4-matic 2011 – 2015 2987 179 243
MERCEDES-BENZ M-CLASS (W166) ML 300 4-matic (166.055) 2011 – 2015 3498 183 249
MERCEDES-BENZ M-CLASS (W166) ML 300 4-matic (166.055) 2011 – 2015 3498 185 252
MERCEDES-BENZ M-CLASS (W166) ML 320 4-matic (166.062) 2011 – 2015 2996 200 272
MERCEDES-BENZ M-CLASS (W166) ML 500 4-matic (166.073) 2011 – 2015 4663 300 408
MERCEDES-BENZ M-CLASS (W166) ML 350 (166.058) 2011 – 2015 3498 225 306
MERCEDES-BENZ M-CLASS (W166) ML 400 4-matic (166.056) 2011 – 2015 2996 245 333
MERCEDES-BENZ M-CLASS (W166) ML 63 AMG 4-matic (166.074) 2011 – 2015 5461 386 525
MERCEDES-BENZ M-CLASS (W166) ML 63 AMG 4-matic (166.074) 2011 – 2015 5461 410 558
MERCEDES-BENZ M-CLASS (W166) ML 350 4-matic (166.057) 2011 – 2015 3498 225 306
MERCEDES-BENZ M-CLASS (W166) ML 350 BlueTEC 4-matic (166.024, 166.023) 2011 – 2015 2987 190 258
MERCEDES-BENZ M-CLASS (W166) ML 250 CDI / BlueTEC 4-matic (166.004, 166.003) 2011 – 2015 2143 150 204
