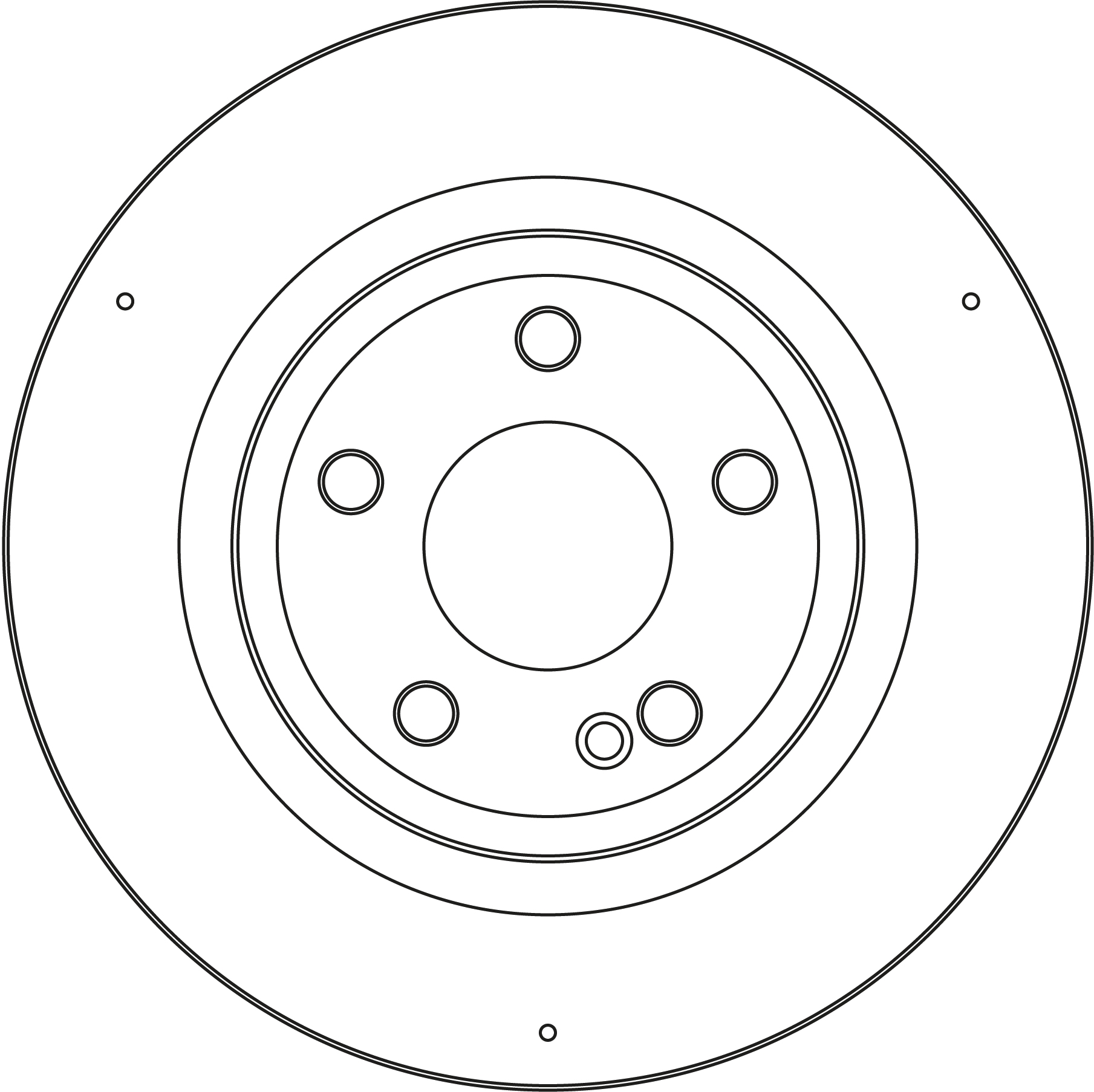

Specifications
| Bolt Hole Circle Ø (mm) | 112 |
| Brake Disc Thickness (mm) | 12 |
| Brake Disc Type solid | |
| Centering Diameter (mm) | 67 |
| Colour black | |
| Height (mm) | 42.6 |
| Machining High-carbon | |
| Minimum thickness (mm) | 10.3 |
| Outer Diameter (mm) | 295 |
| Rim Hole Number 5 | |
| Surface Painted | |
| Test Mark E190R- 02 C0190/0562 | |
| Thread Size 15,3 | |
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 12, Brake Disc Type solid, Centering Diameter [mm] 67, Colour black, Height [mm] 42,6, Machining High-carbon, Minimum thickness [mm] 10,3, Outer Diameter [mm] 295, Rim Hole Number 5, Surface Painted, Test Mark E190R- 02 C0190/0562, Thread Size 15,3
Fits: MERCEDES-BENZ
Fits: MERCEDES-BENZ
Interchangeable Part Numbers
OE Numbers — MERCEDES-BENZ 247 423 02
OE Numbers — MERCEDES-BENZ
| Make | Model | Type / Engine | Years | CC | kW | HP |
|---|---|---|---|---|---|---|
| MERCEDES-BENZ | A-CLASS (W177) | A 180 d (177.003) | 2018 – present | 1461 | 85 | 116 |
| MERCEDES-BENZ | A-CLASS (W177) | A 250 Mild-Hybrid 4-matic (177.047) | 2018 – present | 1991 | 165 | 224 |
| MERCEDES-BENZ | A-CLASS (W177) | A 220 Mild-Hybrid 4-matic (177.045) | 2018 – present | 1991 | 140 | 190 |
| MERCEDES-BENZ | A-CLASS (W177) | A 200 Mild-Hybrid (177.087) | 2018 – present | 1332 | 120 | 163 |
| MERCEDES-BENZ | A-CLASS (W177) | A 180 Mild-Hybrid (177.084) | 2018 – present | 1332 | 100 | 136 |
| MERCEDES-BENZ | A-CLASS (W177) | A 250 e (177.085) | 2018 – present | 1332 | 160 | 218 |
| MERCEDES-BENZ | A-CLASS (W177) | A 200 4-matic (177.088) | 2018 – present | 1332 | 120 | 163 |
| MERCEDES-BENZ | A-CLASS (W177) | A 180 d (177.010) | 2018 – present | 1950 | 85 | 116 |
| MERCEDES-BENZ | A-CLASS (W177) | A 250 e (177.086) | 2018 – present | 1332 | 160 | 218 |
| MERCEDES-BENZ | A-CLASS (W177) | AMG A 35 Mild-Hybrid 4-matic (177.051) | 2018 – present | 1991 | 225 | 306 |
| MERCEDES-BENZ | A-CLASS (W177) | A 220 d 4-matic (177.015) | 2018 – present | 1950 | 140 | 190 |
| MERCEDES-BENZ | A-CLASS (W177) | A 200 d 4-matic (177.013) | 2018 – present | 1950 | 110 | 150 |
| MERCEDES-BENZ | A-CLASS (W177) | AMG A 45 S 4-matic+ (177.054) | 2018 – present | 1991 | 310 | 421 |
| MERCEDES-BENZ | A-CLASS (W177) | AMG A 45 4-matic+ (177.053) | 2018 – present | 1991 | 285 | 387 |
| MERCEDES-BENZ | A-CLASS (W177) | A 160 d (177.002) | 2018 – present | 1461 | 70 | 95 |
| MERCEDES-BENZ | A-CLASS (W177) | A 200 (177.087) | 2018 – present | 1332 | 120 | 163 |
| MERCEDES-BENZ | A-CLASS (W177) | A 220 d (177.014) | 2018 – present | 1950 | 140 | 190 |
| MERCEDES-BENZ | A-CLASS (W177) | A 200 d (177.012) | 2018 – present | 1950 | 110 | 150 |
| MERCEDES-BENZ | A-CLASS (W177) | AMG A 35 4-matic (177.051) | 2018 – present | 1991 | 225 | 306 |
| MERCEDES-BENZ | A-CLASS (W177) | A 220 (177.044) | 2018 – present | 1991 | 140 | 190 |
| MERCEDES-BENZ | A-CLASS (W177) | A 250 4-matic (177.047) | 2018 – present | 1991 | 165 | 224 |
| MERCEDES-BENZ | A-CLASS (W177) | A 220 4-matic (177.045) | 2018 – present | 1991 | 140 | 190 |
| MERCEDES-BENZ | A-CLASS (W177) | A 200 (177.087) | 2018 – present | 1332 | 110 | 150 |
| MERCEDES-BENZ | A-CLASS (W177) | A 160 (177.082) | 2018 – present | 1332 | 80 | 109 |
| MERCEDES-BENZ | A-CLASS (W177) | A 180 (177.084) | 2018 – present | 1332 | 100 | 136 |
| MERCEDES-BENZ | A-CLASS (W177) | A 250 (177.046) | 2018 – present | 1991 | 165 | 224 |
| MERCEDES-BENZ | B-CLASS Sports Tourer (W247) | B 180 Mild Hybrid (247.084) | 2018 – present | 1332 | 100 | 136 |
| MERCEDES-BENZ | B-CLASS Sports Tourer (W247) | B 200 4-matic (247.088) | 2018 – present | 1332 | 120 | 163 |
| MERCEDES-BENZ | B-CLASS Sports Tourer (W247) | B 180 d (247.010) | 2018 – present | 1950 | 85 | 116 |
| MERCEDES-BENZ | B-CLASS Sports Tourer (W247) | B 250 e (247.085) | 2018 – present | 1332 | 160 | 218 |
| MERCEDES-BENZ | B-CLASS Sports Tourer (W247) | B 250 e (247.086) | 2018 – present | 1332 | 160 | 218 |
| MERCEDES-BENZ | B-CLASS Sports Tourer (W247) | B 200 Mild Hybrid (247.087) | 2018 – present | 1332 | 120 | 163 |
| MERCEDES-BENZ | B-CLASS Sports Tourer (W247) | B 220 Mild-Hybrid 4-matic (247.045) | 2018 – present | 1991 | 140 | 190 |
| MERCEDES-BENZ | B-CLASS Sports Tourer (W247) | B 200 d 4-matic (247.013) | 2018 – present | 1950 | 110 | 150 |
| MERCEDES-BENZ | B-CLASS Sports Tourer (W247) | B 220 d 4-matic (247.015) | 2018 – present | 1950 | 140 | 190 |
| MERCEDES-BENZ | B-CLASS Sports Tourer (W247) | B 220 d (247.014) | 2018 – present | 1950 | 140 | 190 |
| MERCEDES-BENZ | B-CLASS Sports Tourer (W247) | B 180 d (247.003) | 2018 – present | 1461 | 85 | 116 |
| MERCEDES-BENZ | B-CLASS Sports Tourer (W247) | B 220 4-matic (247.045) | 2018 – present | 1991 | 140 | 190 |
| MERCEDES-BENZ | B-CLASS Sports Tourer (W247) | B 250 (247.046) | 2018 – present | 1991 | 165 | 224 |
| MERCEDES-BENZ | B-CLASS Sports Tourer (W247) | B 250 4-matic (247.047) | 2018 – present | 1991 | 165 | 224 |
| MERCEDES-BENZ | B-CLASS Sports Tourer (W247) | B 220 (247.044) | 2018 – present | 1991 | 140 | 190 |
| MERCEDES-BENZ | B-CLASS Sports Tourer (W247) | B 160 (247.082) | 2018 – present | 1332 | 80 | 109 |
| MERCEDES-BENZ | B-CLASS Sports Tourer (W247) | B 200 (247.087) | 2018 – present | 1332 | 110 | 150 |
| MERCEDES-BENZ | B-CLASS Sports Tourer (W247) | B 180 (247.084) | 2018 – present | 1332 | 100 | 136 |
| MERCEDES-BENZ | B-CLASS Sports Tourer (W247) | B 160 d (247.002) | 2018 – present | 1461 | 70 | 95 |
| MERCEDES-BENZ | B-CLASS Sports Tourer (W247) | B 200 (247.087) | 2018 – present | 1332 | 120 | 163 |
| MERCEDES-BENZ | B-CLASS Sports Tourer (W247) | B 200 d (247.012) | 2018 – present | 1950 | 110 | 150 |
| MERCEDES-BENZ | B-CLASS Sports Tourer (W247) | B 250 Mid Hybrid 4-matic (247.047) | 2018 – present | 1991 | 165 | 224 |
| MERCEDES-BENZ | GLB (X247) | GLB 250 Mild-Hybrid (247.046) | 2019 – present | 1991 | 165 | 224 |
| MERCEDES-BENZ | GLB (X247) | AMG GLB 35 Mild Hybrid 4-matic (247.651) | 2019 – present | 1991 | 225 | 306 |
| MERCEDES-BENZ | GLB (X247) | GLB 250 Mild-Hybrid 4-matic (247.647) | 2019 – present | 1991 | 165 | 224 |
| MERCEDES-BENZ | GLB (X247) | GLB 220 Mild-Hybrid 4-matic (247.645) | 2019 – present | 1991 | 140 | 190 |
| MERCEDES-BENZ | GLB (X247) | GLB 200 Mild-Hybrid (247.687) | 2019 – present | 1332 | 120 | 163 |
| MERCEDES-BENZ | GLB (X247) | GLB 180 Mild-Hybrid (247.684) | 2019 – present | 1332 | 100 | 136 |
| MERCEDES-BENZ | GLB (X247) | GLB 220 | 2019 – present | 1991 | 140 | 190 |
| MERCEDES-BENZ | GLB (X247) | GLB 200 4-matic (247.688) | 2019 – present | 1332 | 120 | 163 |
| MERCEDES-BENZ | GLB (X247) | GLB 180 (247.684) | 2019 – present | 1332 | 100 | 136 |
| MERCEDES-BENZ | GLB (X247) | GLB 220 d (247.614) | 2019 – present | 1950 | 140 | 190 |
| MERCEDES-BENZ | GLB (X247) | GLB 250 (247.646) | 2019 – present | 1991 | 165 | 224 |
| MERCEDES-BENZ | GLB (X247) | AMG GLB 35 4-matic (247.651) | 2019 – present | 1991 | 225 | 306 |
| MERCEDES-BENZ | GLB (X247) | GLB 250 4-matic (247.647) | 2019 – present | 1991 | 165 | 224 |
| MERCEDES-BENZ | GLB (X247) | GLB 200 (247.687) | 2019 – present | 1332 | 120 | 163 |
| MERCEDES-BENZ | GLB (X247) | GLB 220 d 4-matic (247.615) | 2019 – present | 1950 | 140 | 190 |
| MERCEDES-BENZ | GLB (X247) | GLB 200 d 4-matic (247.613) | 2019 – present | 1950 | 110 | 150 |
| MERCEDES-BENZ | GLB (X247) | GLB 200 d (247.612) | 2019 – present | 1950 | 110 | 150 |
| MERCEDES-BENZ | GLB (X247) | GLB 180 d (247.610) | 2019 – present | 1950 | 85 | 116 |
