Brake Disc
Braking System

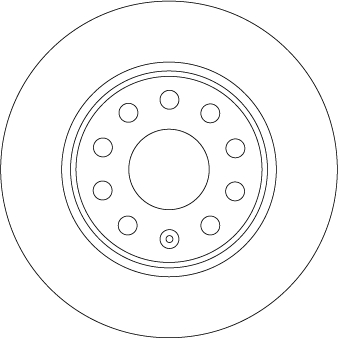

Brake Disc

Part No. DF6952 · SKU DF6952-TRW
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)10
Brake Disc Type solid
Centering Diameter (mm)65
Colour black
Height (mm)58.2
Minimum thickness (mm)8
Number of Holes 9
Outer Diameter (mm)272
Surface Painted
Test Mark E1 90R-02 C0190/0535
Thread Size 15,3
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 10, Brake Disc Type solid, Centering Diameter [mm] 65, Colour black, Height [mm] 58,2, Minimum thickness [mm] 8, Number of Holes 9, Outer Diameter [mm] 272, Surface Painted, Test Mark E1 90R-02 C0190/0535, Thread Size 15,3
Fits: AUDI, SEAT, SKODA, VW

Interchangeable Part Numbers

A.B.S.18589 A.P. 10010V A.P.10010V APECDSK3485 ASAM AUTOMOTIVE74853 ATE24.0110-0409.1 BLUE PRINTADBP430012 BORG & BECKBBD5526 BOSCH 0 986 479F23 BOSCH0986479F23 Brake ENGINEERINGDI957157 BRECO BV6178 BRECOBV6178 BREMBO08.D425.11 CAR142.1999 COMLINEAND7191 DELPHIBG5089C FEBI BILSTEIN171439 FTE9082640 GIRLING6069524 HELLA 8DD 355131-811 HELLA8DD355131811 JURATEKVAG335 KAWE 6209800 KAWE6209800 LPRS3027PR METELLI23-1863C MINTEXMDC2848C MOTAQUIPLVBD1981 NationalNBD2026 NK3147175 RAICAMRD00683 REMYRAD2673C SWAG 33 100903 SWAG33100903 TEXTAR92300003 TOPRAN 117600 TOPRAN117600 WOKINGD62098.00 ZIMMERMANN100.3381.20

OE Numbers — AUDI 5Q0 615 601

B

OE Numbers — AUDI

5Q0615601B
MakeModelType / Engine YearsCCkWHP
AUDI Q2 (GAB, GAG) 30 TFSI 2016 – present 999 85 115
AUDI Q2 (GAB, GAG) 40 TFSI quattro 2016 – present 1984 140 190
AUDI Q2 (GAB, GAG) 35 TFSI 2016 – present 1395 110 150
AUDI Q2 (GAB, GAG) 30 TDI 2016 – present 1968 85 115
AUDI Q2 (GAB, GAG) 30 TFSI 2016 – present 999 81 110
AUDI Q2 (GAB, GAG) 35 TDI 2016 – present 1968 110 150
AUDI Q2 (GAB, GAG) 35 TDI quattro 2016 – present 1968 110 150
AUDI Q2 (GAB, GAG) SQ2 TFSI quattro 2016 – present 1984 221 300
AUDI Q2 (GAB, GAG) 40 TFSI quattro 2016 – present 1984 140 190
AUDI Q2 (GAB, GAG) 35 TFSI 2016 – present 1498 110 150
AUDI Q2 (GAB, GAG) 1.4 TFSI 2016 – present 1395 110 150
AUDI Q2 (GAB, GAG) 30 TDI 2016 – present 1598 85 115
AUDI Q2 (GAB, GAG) 2.0 TDI 2016 – present 1968 105 143
AUDI Q2 (GAB, GAG) 2.0 TFSI quattro 2016 – present 1984 140 190
AUDI Q2 (GAB, GAG) 2.0 TDI quattro 2016 – present 1968 140 190
AUDI Q2 (GAB, GAG) 2.0 TDI quattro 2016 – present 1968 110 150
AUDI Q2 (GAB, GAG) 2.0 TDI 2016 – present 1968 110 150
AUDI Q2 (GAB, GAG) 1.6 TDI 2016 – present 1598 85 115
AUDI Q2 (GAB, GAG) 1.0 TFSI 2016 – present 999 85 115
