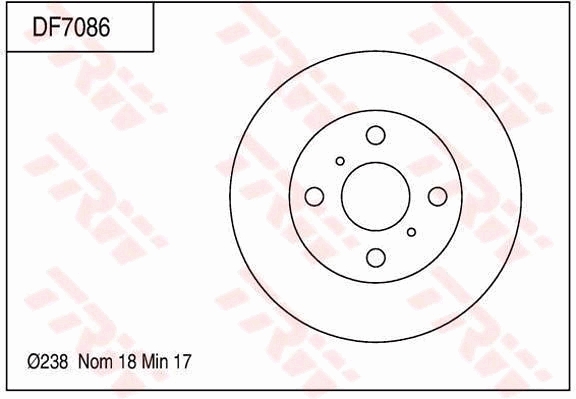

Specifications
| Bolt Hole Circle Ø (mm) | 100 |
| Brake Disc Thickness (mm) | 18 |
| Brake Disc Type Vented | |
| Centering Diameter (mm) | 55.1 |
| Height (mm) | 48.2 |
| Minimum thickness (mm) | 17 |
| Number of Holes 4 | |
| Outer Diameter (mm) | 238 |
| Thread Size 14.8 | |
Bolt Hole Circle Ø [mm] 100, Brake Disc Thickness [mm] 18, Brake Disc Type Vented, Centering Diameter [mm] 55,1, Height [mm] 48,2, Minimum thickness [mm] 17, Number of Holes 4, Outer Diameter [mm] 238, Thread Size 14.8
