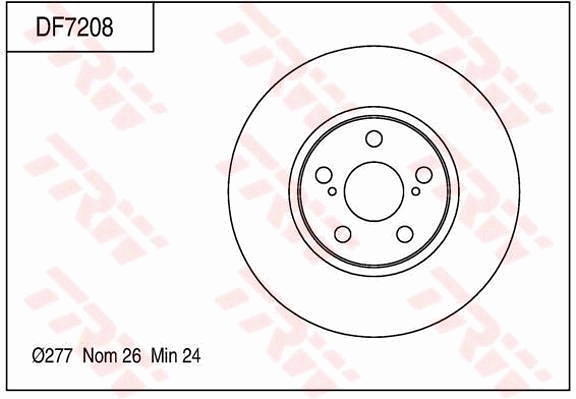

Specifications
| Bolt Hole Circle Ø (mm) | 100 |
| Brake Disc Thickness (mm) | 26 |
| Brake Disc Type Vented | |
| Centering Diameter (mm) | 55 |
| Height (mm) | 49.5 |
| Minimum thickness (mm) | 24 |
| Number of Holes 5 | |
| Outer Diameter (mm) | 277 |
| Thread Size 14.6 | |
Bolt Hole Circle Ø [mm] 100, Brake Disc Thickness [mm] 26, Brake Disc Type Vented, Centering Diameter [mm] 55, Height [mm] 49,5, Minimum thickness [mm] 24, Number of Holes 5, Outer Diameter [mm] 277, Thread Size 14.6
