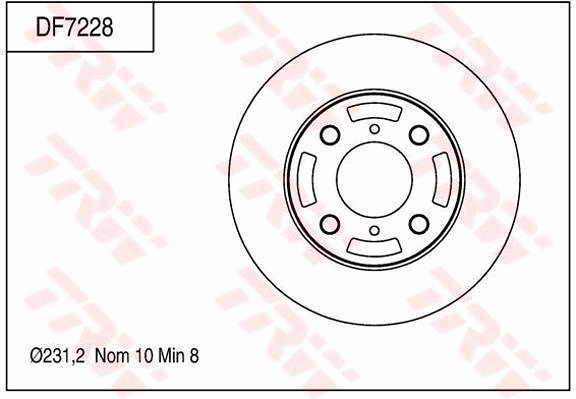

Specifications
| Bolt Hole Circle Ø (mm) | 100 |
| Brake Disc Thickness (mm) | 10 |
| Brake Disc Type solid | |
| Centering Diameter (mm) | 60 |
| Height (mm) | 49.2 |
| Minimum thickness (mm) | 8 |
| Number of Holes 4 | |
| Outer Diameter (mm) | 231 |
| Thread Size 12.7 | |
Bolt Hole Circle Ø [mm] 100, Brake Disc Thickness [mm] 10, Brake Disc Type solid, Centering Diameter [mm] 60, Height [mm] 49,2, Minimum thickness [mm] 8, Number of Holes 4, Outer Diameter [mm] 231, Thread Size 12.7
