Brake Disc
Braking System

Brake Disc

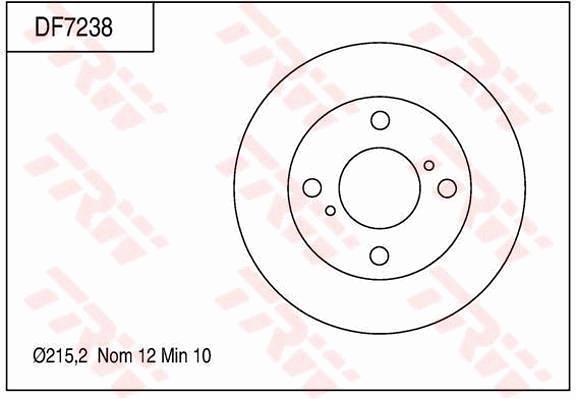

Part No. DF7238 · SKU DF7238-TRW
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)100
Brake Disc Thickness (mm)12
Brake Disc Type solid
Centering Diameter (mm)60
Height (mm)44.2
Minimum thickness (mm)10
Number of Holes 4
Outer Diameter (mm)215
Thread Size 12.7
Bolt Hole Circle Ø [mm] 100, Brake Disc Thickness [mm] 12, Brake Disc Type solid, Centering Diameter [mm] 60, Height [mm] 44,2, Minimum thickness [mm] 10, Number of Holes 4, Outer Diameter [mm] 215, Thread Size 12.7

Interchangeable Part Numbers

MOUNTAINTR124 NIPPARTSJ3312031

OE Numbers — SUZUKI

55311-67H00 55311-67H10 55311-76G00 55311-76G10
