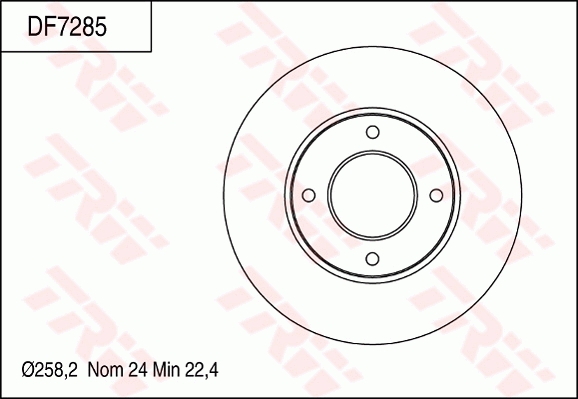

Specifications
| Bolt Hole Circle Ø (mm) | 110 |
| Brake Disc Thickness (mm) | 24 |
| Brake Disc Type Vented | |
| Centering Diameter (mm) | 73 |
| Height (mm) | 55.5 |
| Minimum thickness (mm) | 22.4 |
| Number of Holes 4 | |
| Outer Diameter (mm) | 258 |
Bolt Hole Circle Ø [mm] 110, Brake Disc Thickness [mm] 24, Brake Disc Type Vented, Centering Diameter [mm] 73, Height [mm] 55,5, Minimum thickness [mm] 22,4, Number of Holes 4, Outer Diameter [mm] 258
