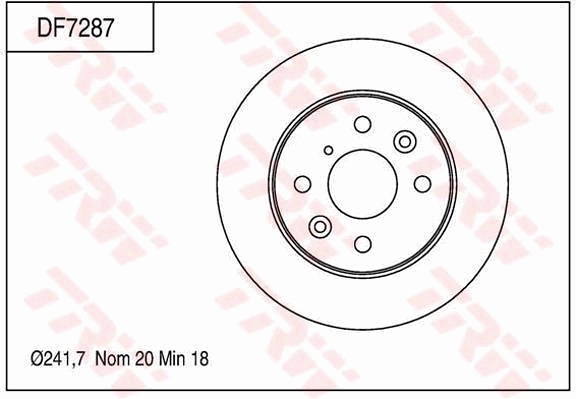

Specifications
| Bolt Hole Circle Ø (mm) | 100 |
| Brake Disc Thickness (mm) | 20 |
| Brake Disc Type Vented | |
| Centering Diameter (mm) | 57 |
| Height (mm) | 43.6 |
| Minimum thickness (mm) | 18 |
| Number of Holes 4 | |
| Outer Diameter (mm) | 242 |
Bolt Hole Circle Ø [mm] 100, Brake Disc Thickness [mm] 20, Brake Disc Type Vented, Centering Diameter [mm] 57, Height [mm] 43,6, Minimum thickness [mm] 18, Number of Holes 4, Outer Diameter [mm] 242
