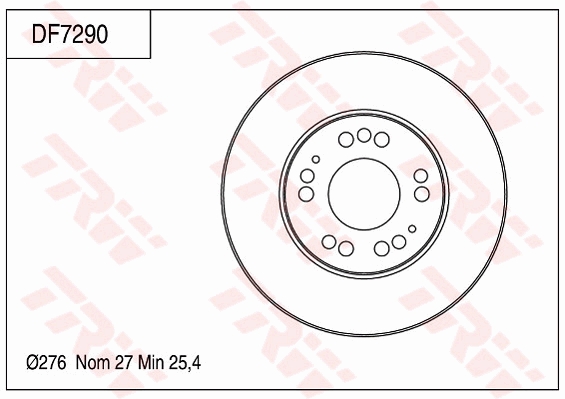

Specifications
| Bolt Hole Circle Ø (mm) | 114.3 |
| Brake Disc Thickness (mm) | 27 |
| Brake Disc Type Vented | |
| Centering Diameter (mm) | 69 |
| Height (mm) | 48.5 |
| Minimum thickness (mm) | 25.4 |
| Number of Holes 6 | |
| Outer Diameter (mm) | 276 |
Bolt Hole Circle Ø [mm] 114,3, Brake Disc Thickness [mm] 27, Brake Disc Type Vented, Centering Diameter [mm] 69, Height [mm] 48,5, Minimum thickness [mm] 25,4, Number of Holes 6, Outer Diameter [mm] 276
