Brake Disc
Braking System

Brake Disc

Part No. DF7299 · SKU DF7299-TRW
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

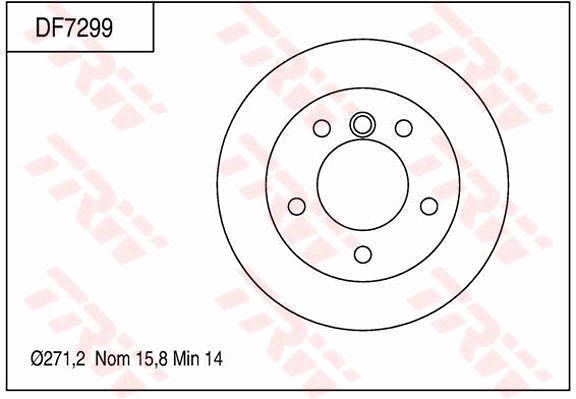

Specifications

Bolt Hole Circle Ø (mm)130
Brake Disc Thickness (mm)15.8
Brake Disc Type solid
Centering Diameter (mm)85
Height (mm)96.6
Minimum thickness (mm)14
Number of Holes 5
Outer Diameter (mm)271
Thread Size 15.4
Bolt Hole Circle Ø [mm] 130, Brake Disc Thickness [mm] 15,8, Brake Disc Type solid, Centering Diameter [mm] 85, Height [mm] 96,6, Minimum thickness [mm] 14, Number of Holes 5, Outer Diameter [mm] 271, Thread Size 15.4
Fits: MERCEDES-BENZ, VW

Interchangeable Part Numbers

A.B.S.17348 A.P.14812 ATE24111601101 BENDIX569121B FEBI BILSTEIN22858 FERODOFCR229A FIRST LINEFBD1389 FTEBS4700 JURID569121J LPRM2681P MAGNETI MARELLI353612844550 METELLI230492 MGAD1292 MGAD1465 MINTEXMDC1075 NK203378 PAGID54053 PAGID54376 PILENGA5898 REMSA656600 SWAG10922858 TEXTAR92105300 TEXTAR92137600 ZIMMERMANN400646900

OE Numbers — MERCEDES-BENZ 902 423 04

12

OE Numbers — MERCEDES-BENZ

9024230412 A9024230412
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ SPRINTER 2-t Bus (B901, B902) 212 D (902.471, 902.472) 1995 – 2006 2874 90 122
MERCEDES-BENZ SPRINTER 2-t Bus (B901, B902) 214 (902.071, 902.072, 902.671, 902.672) 1995 – 2006 2295 105 143
MERCEDES-BENZ SPRINTER 2-t Bus (B901, B902) 214 NGT (902.072, 902.671, 902.672) 1995 – 2006 2295 95 129
MERCEDES-BENZ SPRINTER 2-t Bus (B901, B902) 208 D (901.371, 902.371, 902.372) 1995 – 2006 2299 58 79
MERCEDES-BENZ SPRINTER 2-t Bus (B901, B902) 216 CDI (902.671, 902.672) 1995 – 2006 2685 115 156
MERCEDES-BENZ SPRINTER 2-t Bus (B901, B902) 213 CDI (902.671, 902.672) 1995 – 2006 2148 95 129
MERCEDES-BENZ SPRINTER 2-t Bus (B901, B902) 211 CDI (902.671, 902.672) 1995 – 2006 2148 80 109
MERCEDES-BENZ SPRINTER 2-t Bus (B901, B902) 208 CDI (901.671, 902.671, 902.672) 1995 – 2006 2148 60 82
MERCEDES-BENZ SPRINTER 2-t Bus (B901, B902) 210 D (902.471, 902.472) 1995 – 2006 2874 75 102
MERCEDES-BENZ SPRINTER 2-t Platform/Chassis (B901, B902) 213 CDI (901.621, 902.611, 902.612, 902.621, 902.622) 1995 – 2006 2148 95 129
MERCEDES-BENZ SPRINTER 2-t Platform/Chassis (B901, B902) 214 NGT (902.012, 902.611, 902.612) 1995 – 2006 2295 95 129
MERCEDES-BENZ SPRINTER 2-t Platform/Chassis (B901, B902) 216 CDI (902.611, 902.612, 902.621, 902.622) 1995 – 2006 2685 115 156
MERCEDES-BENZ SPRINTER 2-t Platform/Chassis (B901, B902) 211 CDI (901.621, 902.611, 902.612, 902.621, 902.622) 1995 – 2006 2148 80 109
MERCEDES-BENZ SPRINTER 2-t Platform/Chassis (B901, B902) 208 CDI (901.611, 901.612, 901.621, 902.611, 902.612,... 1995 – 2006 2148 60 82
MERCEDES-BENZ SPRINTER 2-t Platform/Chassis (B901, B902) 208 D (901.311, 901.312, 901.321, 902.311, 902.312,... 1995 – 2006 2299 60 82
MERCEDES-BENZ SPRINTER 2-t Platform/Chassis (B901, B902) 210 D (901.421, 902.412) 1995 – 2006 2874 75 102
MERCEDES-BENZ SPRINTER 2-t Platform/Chassis (B901, B902) 212 D (901.421, 902.412) 1995 – 2006 2874 90 122
MERCEDES-BENZ SPRINTER 2-t Platform/Chassis (B901, B902) 214 (902.011, 902.012, 902.611, 902.612) 1995 – 2006 2295 105 143
MERCEDES-BENZ SPRINTER 2-t Platform/Chassis (B901, B902) 208 D (901.311, 901.312, 901.321, 902.311, 902.312,... 1995 – 2006 2299 58 79
MERCEDES-BENZ SPRINTER 2-t Van (B901, B902) 208 D (901.361, 901.362, 902.361, 902.362) 1995 – 2006 2299 58 79
MERCEDES-BENZ SPRINTER 2-t Van (B901, B902) 216 CDI (902.661, 902.662) 1995 – 2006 2685 115 156
MERCEDES-BENZ SPRINTER 2-t Van (B901, B902) 213 CDI (901.661, 901.662, 902.661, 902.662) 1995 – 2006 2148 95 129
MERCEDES-BENZ SPRINTER 2-t Van (B901, B902) 211 CDI (901.661, 901.662, 902.661, 902.662) 1995 – 2006 2148 80 109
MERCEDES-BENZ SPRINTER 2-t Van (B901, B902) 208 CDI (901.661, 901.662, 902.661, 902.662) 1995 – 2006 2148 60 82
MERCEDES-BENZ SPRINTER 2-t Van (B901, B902) 212 D (901.461, 901.462, 902.461, 902.462) 1995 – 2006 2874 90 122
MERCEDES-BENZ SPRINTER 2-t Van (B901, B902) 214 (901.061, 901.062, 901.661, 901.662, 902.061,... 1995 – 2006 2295 105 143
MERCEDES-BENZ SPRINTER 2-t Van (B901, B902) 210 D (901.461, 901.462, 902.461, 902.462) 1995 – 2006 2874 75 102
MERCEDES-BENZ SPRINTER 2-t Van (B901, B902) 208 D (901.361, 901.362, 902.361, 902.362) 1995 – 2006 2299 60 82
MERCEDES-BENZ SPRINTER 2-t Van (B901, B902) 214 NGT (901.661, 902.061, 902.062, 902.661, 902.662) 1995 – 2006 2295 95 129
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 314 NGT (903.611, 903.612, 903.613, 903.622, 903.012,... 1995 – 2012 2295 95 129
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 313 CDI (903.611, 903.612, 903.621, 903.622) 1995 – 2012 2148 95 129
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 314 4x4 (903.612, 903.613, 903.622) 1995 – 2012 2295 105 143
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 316 CDI (903.611, 903.612, 903.613, 903.621, 903.622,... 1995 – 2012 2685 115 156
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 311 CDI 4x4 (903.612, 903.613, 903.622, 903.623) 1995 – 2012 2148 80 109
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 313 CDI 4x4 (903.612, 903.613, 903.622, 903.623) 1995 – 2012 2148 95 129
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 316 CDI 4x4 (903.612, 903.613, 903.622, 903.623) 1995 – 2012 2685 115 156
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 312 D 2.9 (903.411, 903.412, 903.413, 903.421, 903.422,... 1995 – 2012 2874 85 116
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 310 D 1995 – 2012 2495 70 95
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 310 D 2.9 4x4 (903.421, 903.422, 903.423) 1995 – 2012 2874 75 102
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 308 E (903.312, 903.322) 1995 – 2012 — 40 54
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 312 D 2.9 4x4 (903.411) 1995 – 2012 2874 90 122
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 311 CDI (903.611, 903.612, 903.613, 903.621, 903.622,... 1995 – 2012 2148 80 109
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 310 D 2.9 (903.411, 903.412, 903.413, 903.421, 903.422,... 1995 – 2012 2874 75 102
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 314 (903.011, 903.012, 903.013, 903.022, 903.612,... 1995 – 2012 2295 105 143
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 308 D 2.3 (903.311, 903.322) 1995 – 2012 2299 60 82
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 312 D 2.9 (903.411, 903.412, 903.421, 903.422, 903.423) 1995 – 2012 2874 90 122
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 308 D 2.3 (903.311, 903.312, 903.322) 1995 – 2012 2299 58 79
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 308 CDI (903.611, 903.612, 903.613, 903.621, 903.622,... 1995 – 2012 2148 60 82
MERCEDES-BENZ SPRINTER 3-t Van (B903) 308 D 2.3 (903.361) 1995 – 2012 2299 60 82
MERCEDES-BENZ SPRINTER 3-t Van (B903) 314 (903.061, 903.062, 903.063, 903.661, 903.662) 1995 – 2012 2295 105 143
MERCEDES-BENZ SPRINTER 3-t Van (B903) 312 D 2.9 (903.461, 903.462, 903.463) 1995 – 2012 2874 90 122
MERCEDES-BENZ SPRINTER 3-t Van (B903) 308 E (903.362) 1995 – 2012 — 40 54
MERCEDES-BENZ SPRINTER 3-t Van (B903) 316 CDI (903.661, 903.662, 903.663) 1995 – 2012 2685 115 156
MERCEDES-BENZ SPRINTER 3-t Van (B903) 312 D 1995 – 2012 2495 77 105
MERCEDES-BENZ SPRINTER 3-t Van (B903) 310 D 1995 – 2012 2495 70 95
MERCEDES-BENZ SPRINTER 3-t Van (B903) 310 D 2.9 (903.461, 903.462, 903.463) 1995 – 2012 2874 75 102
MERCEDES-BENZ SPRINTER 3-t Van (B903) 310 D 2.9 4x4 (903.461, 903.462) 1995 – 2012 2874 75 102
MERCEDES-BENZ SPRINTER 3-t Van (B903) 311 CDI (903.661, 903.662, 903.663) 1995 – 2012 2148 80 109
MERCEDES-BENZ SPRINTER 3-t Van (B903) 312 D 2.9 4x4 (903.461, 903.462) 1995 – 2012 2874 90 122
MERCEDES-BENZ SPRINTER 3-t Van (B903) 313 CDI (903.663, 903.662, 903.661) 1995 – 2012 2148 95 129
MERCEDES-BENZ SPRINTER 3-t Van (B903) 308 D 2.3 (903.361, 903.362, 903.363) 1995 – 2012 2299 58 79
MERCEDES-BENZ SPRINTER 3-t Van (B903) 314 NGT (903.661, 903.061, 903.062, 903.063, 903.662) 1995 – 2012 2295 95 129
MERCEDES-BENZ SPRINTER 3-t Van (B903) 308 CDI (903.661, 903.662, 903.663) 1995 – 2012 2148 60 82
MERCEDES-BENZ SPRINTER 3-t Van (B903) 316 CDI 4x4 (903.662, 903.663) 1995 – 2012 2685 115 156
MERCEDES-BENZ SPRINTER 3-t Van (B903) 313 CDI 4x4 (903.662, 903.663) 1995 – 2012 2148 95 129
MERCEDES-BENZ SPRINTER 3-t Van (B903) 311 CDI 4x4 (903.662, 903.663) 1995 – 2012 2148 80 109
MERCEDES-BENZ SPRINTER 3-t Van (B903) 314 4x4 (903.661, 903.662, 903.663) 1995 – 2012 2295 105 143
