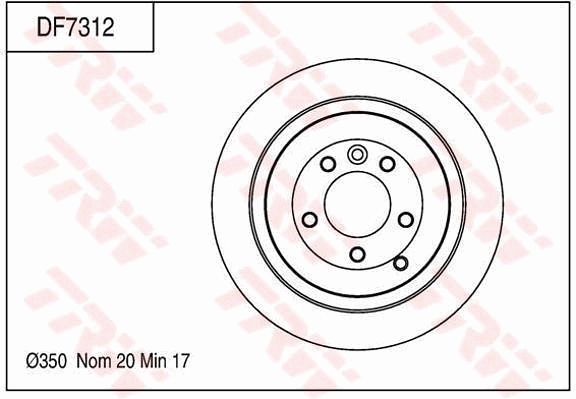

Specifications
| Bolt Hole Circle Ø (mm) | 174.5 |
| Brake Disc Thickness (mm) | 20 |
| Brake Disc Type Vented | |
| Centering Diameter (mm) | 79 |
| Height (mm) | 59.4 |
| Minimum thickness (mm) | 17 |
| Number of Holes 5 | |
| Outer Diameter (mm) | 350 |
| Thread Size 15 | |
Bolt Hole Circle Ø [mm] 174,5, Brake Disc Thickness [mm] 20, Brake Disc Type Vented, Centering Diameter [mm] 79, Height [mm] 59,4, Minimum thickness [mm] 17, Number of Holes 5, Outer Diameter [mm] 350, Thread Size 15
