Brake Disc
Braking System

Brake Disc

Part No. DF7349 · SKU DF7349-TRW
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

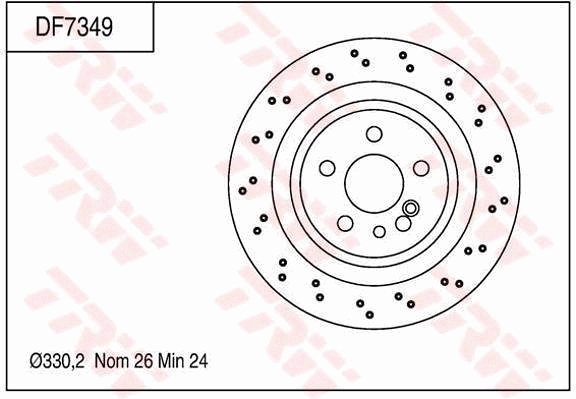

Specifications

Bolt Hole Circle Ø (mm)100
Brake Disc Thickness (mm)26
Brake Disc Type Vented
Centering Diameter (mm)67
Height (mm)61.1
Minimum thickness (mm)24
Number of Holes 5
Outer Diameter (mm)330
Thread Size 17.1
Bolt Hole Circle Ø [mm] 100, Brake Disc Thickness [mm] 26, Brake Disc Type Vented, Centering Diameter [mm] 67, Height [mm] 61,1, Minimum thickness [mm] 24, Number of Holes 5, Outer Diameter [mm] 330, Thread Size 17.1
Fits: MERCEDES-BENZ

Interchangeable Part Numbers

A.B.S.09.B842.21 A.B.S.17567 A.P. 25288V A.P.25288V APECDSK3007 ATE24.0126-0137.1 ATE24.1126-0137.1 BENDIX562337B DELPHIBG3880 FEBI BILSTEIN43943 FTE9071335 FTE9081277 FTEBS7518 FTEBS7518B HELLA 8DD 355110-191 HELLA8DD355110191 HELLA 8DD 355122-702 HELLA8DD355122702 JURID562337J MINTEXMDC1668 NationalNBD1275 NK203385 NK313385 OPTIMALBS-7840C OPTIMALBS-7840 PAGID54243 sbs1815203385 sbs1815313385 SWAG 10 943943 SWAG10943943 TEXTAR92124300 TEXTAR92124303 TEXTAR92124305 TRISCAN 8120231045C TRISCAN8120231045C ZIMMERMANN400363500

OE Numbers — MERCEDES-BENZ 220 423 09

12

OE Numbers — MERCEDES-BENZ

2204230912 A2204230912
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ S-CLASS (W220, V220) S 350, S 350 L (220.067, 220.167) 1998 – 2005 3724 180 245
MERCEDES-BENZ S-CLASS (W220, V220) S 500 (220.075, 220.175, 220.875) 1998 – 2005 4966 220 299
MERCEDES-BENZ S-CLASS (W220, V220) S 55 AMG 1998 – 2005 5439 349 475
MERCEDES-BENZ S-CLASS (W220, V220) S 65 AMG, S 65 AMG L (220.179) 1998 – 2005 5980 450 612
MERCEDES-BENZ S-CLASS (W220, V220) S 400 CDI (220.028, 220.128) 1998 – 2005 3996 191 260
MERCEDES-BENZ S-CLASS (W220, V220) S 350 4-matic (220.087, 220.187) 1998 – 2005 3724 180 245
MERCEDES-BENZ S-CLASS (W220, V220) S 320 CDI (220.025, 220.125) 1998 – 2005 3222 150 204
MERCEDES-BENZ S-CLASS (W220, V220) S 500 4-matic (220.084, 220.184) 1998 – 2005 4966 225 306
MERCEDES-BENZ S-CLASS (W220, V220) S 430 4-matic (220.083, 220.183) 1998 – 2005 4266 205 279
MERCEDES-BENZ S-CLASS (W220, V220) S 55 AMG Kompressor (220.074, 220.174) 1998 – 2005 5439 368 500
MERCEDES-BENZ S-CLASS (W220, V220) S 320 (220.065, 220.165) 1998 – 2005 3199 165 224
MERCEDES-BENZ S-CLASS (W220, V220) S 600, S 600 L (220.176) 1998 – 2005 5513 368 500
MERCEDES-BENZ S-CLASS (W220, V220) S 63 AMG 1998 – 2005 6258 326 444
MERCEDES-BENZ S-CLASS (W220, V220) S 430, S 430 L (220.070, 220.170) 1998 – 2005 4266 205 279
MERCEDES-BENZ S-CLASS (W220, V220) S 500, S 500 L (220.075, 220.175, 220.875) 1998 – 2005 4966 225 306
MERCEDES-BENZ S-CLASS (W220, V220) S 280 (220.063, 220.163) 1998 – 2005 2799 150 204
MERCEDES-BENZ S-CLASS (W220, V220) S 55 AMG (220.073, 220.173) 1998 – 2005 5439 265 360
MERCEDES-BENZ S-CLASS (W220, V220) S 320 CDI (220.026, 220.126) 1998 – 2005 3222 145 197
MERCEDES-BENZ S-CLASS (W220, V220) S 600, S 600 L (220.878, 220.178) 1998 – 2005 5786 270 367
MERCEDES-BENZ S-CLASS (W220, V220) S 400 CDI (220.028, 220.128) 1998 – 2005 3996 184 250
MERCEDES-BENZ S-CLASS Coupe (C215) CL 55 AMG Kompressor (215.374) 1999 – 2006 5439 368 500
MERCEDES-BENZ S-CLASS Coupe (C215) CL 55 AMG (215.373) 1999 – 2006 5439 265 360
MERCEDES-BENZ S-CLASS Coupe (C215) CL 65 AMG (215.379) 1999 – 2006 5980 450 612
MERCEDES-BENZ S-CLASS Coupe (C215) CL 600 (215.378) 1999 – 2006 5786 270 367
MERCEDES-BENZ S-CLASS Coupe (C215) CL 500 (215.375) 1999 – 2006 4966 225 306
MERCEDES-BENZ S-CLASS Coupe (C215) CL 55 AMG 1999 – 2006 5439 255 347
MERCEDES-BENZ S-CLASS Coupe (C215) CL 600 (215.376) 1999 – 2006 5513 368 500
MERCEDES-BENZ S-CLASS Coupe (C215) CL 55 AMG 1999 – 2006 5439 349 475
MERCEDES-BENZ S-CLASS Coupe (C215) CL 55 AMG 1999 – 2006 5439 367 499
MERCEDES-BENZ S-CLASS Coupe (C215) CL 500 (215.375) 1999 – 2006 4966 215 292
MERCEDES-BENZ S-CLASS Coupe (C215) CL 63 AMG 1999 – 2006 6258 326 444
