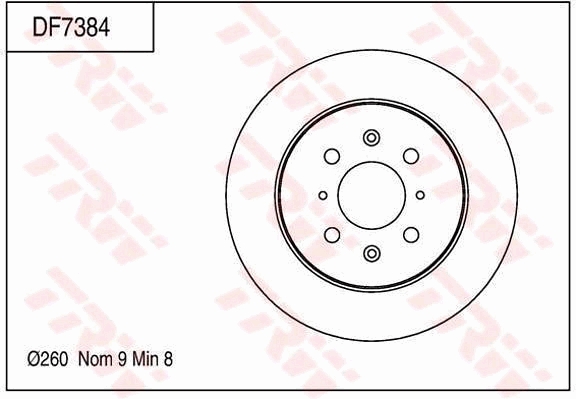

Specifications
| Bolt Hole Circle Ø (mm) | 104 |
| Brake Disc Thickness (mm) | 9 |
| Brake Disc Type solid | |
| Centering Diameter (mm) | 61.1 |
| Height (mm) | 48.1 |
| Minimum thickness (mm) | 8 |
| Number of Holes 4 | |
| Outer Diameter (mm) | 260 |
| Thread Size 12.8 | |
Bolt Hole Circle Ø [mm] 104, Brake Disc Thickness [mm] 9, Brake Disc Type solid, Centering Diameter [mm] 61,1, Height [mm] 48,1, Minimum thickness [mm] 8, Number of Holes 4, Outer Diameter [mm] 260, Thread Size 12.8
