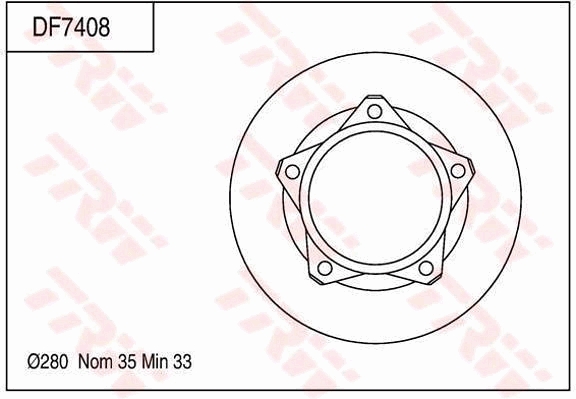

Specifications
| Bolt Hole Circle Ø (mm) | 167 |
| Brake Disc Thickness (mm) | 35 |
| Brake Disc Type Vented | |
| Centering Diameter (mm) | 126 |
| Height (mm) | 90 |
| Minimum thickness (mm) | 33 |
| Number of Holes 5 | |
| Outer Diameter (mm) | 280 |
| Thread Size M14X1.5 | |
Bolt Hole Circle Ø [mm] 167, Brake Disc Thickness [mm] 35, Brake Disc Type Vented, Centering Diameter [mm] 126, Height [mm] 90, Minimum thickness [mm] 33, Number of Holes 5, Outer Diameter [mm] 280, Thread Size M14X1.5
