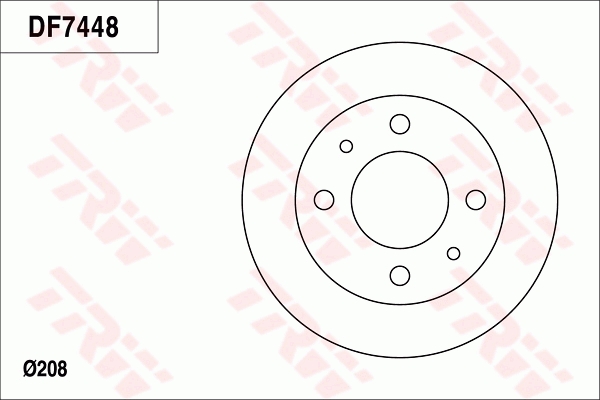

Specifications
| Bolt Hole Circle Ø (mm) | 100 |
| Brake Disc Thickness (mm) | 11 |
| Brake Disc Type solid | |
| Centering Diameter (mm) | 64 |
| Height (mm) | 41.5 |
| Minimum thickness (mm) | 10 |
| Number of Holes 4 | |
| Outer Diameter (mm) | 208 |
| Thread Size 12.7 | |
Bolt Hole Circle Ø [mm] 100, Brake Disc Thickness [mm] 11, Brake Disc Type solid, Centering Diameter [mm] 64, Height [mm] 41,5, Minimum thickness [mm] 10, Number of Holes 4, Outer Diameter [mm] 208, Thread Size 12.7
