TRW
Braking System

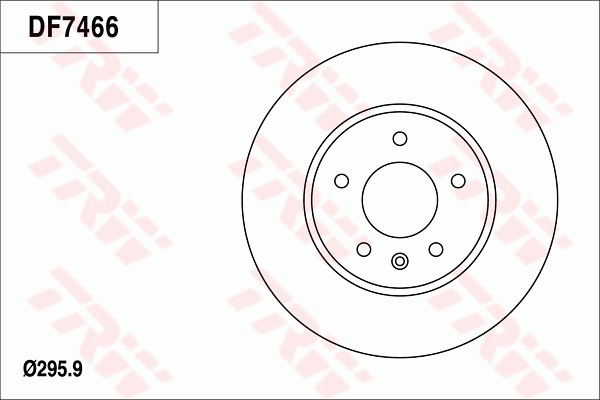

Brake Disc
Part No.
DF7466
·
SKU
DF7466-TRW
Price on request
Currently out of stock
Get notified when this part is back in stock:
Genuine & OEM parts
Nationwide delivery
Easy returns
Specifications
| Bolt Hole Circle Ø (mm) | 115 |
| Brake Disc Thickness (mm) | 29 |
| Brake Disc Type Vented |
| Centering Diameter (mm) | 70.7 |
| Height (mm) | 51.6 |
| Minimum thickness (mm) | 27.4 |
| Number of Holes 5 |
| Outer Diameter (mm) | 296 |
| Thread Size 12.6 |
Bolt Hole Circle Ø [mm] 115, Brake Disc Thickness [mm] 29, Brake Disc Type Vented, Centering Diameter [mm] 70,7, Height [mm] 51,6, Minimum thickness [mm] 27,4, Number of Holes 5, Outer Diameter [mm] 296, Thread Size 12.6
Interchangeable Part Numbers
ICER78BD9048-2
MAGNETI MARELLI600000086300
OPTIMALBS-8490HC
OPTIMALBS-8490
QUINTON HAZELLBDC5786
