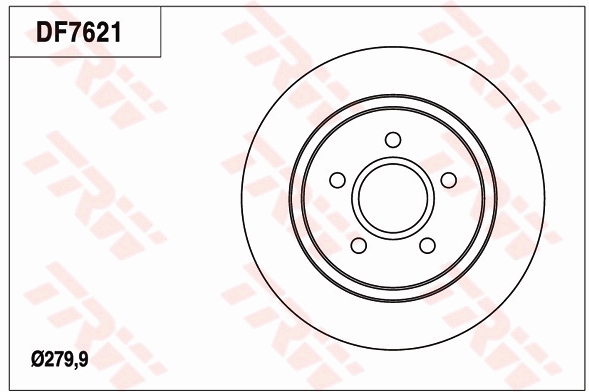

Specifications
| Bolt Hole Circle Ø (mm) | 108 |
| Brake Disc Thickness (mm) | 10.9 |
| Brake Disc Type solid | |
| Centering Diameter (mm) | 63.6 |
| Height (mm) | 40.8 |
| Minimum thickness (mm) | 9 |
| Number of Holes 5 | |
| Outer Diameter (mm) | 280 |
| Thread Size 13.8 | |
Bolt Hole Circle Ø [mm] 108, Brake Disc Thickness [mm] 10,9, Brake Disc Type solid, Centering Diameter [mm] 63,6, Height [mm] 40,8, Minimum thickness [mm] 9, Number of Holes 5, Outer Diameter [mm] 280, Thread Size 13.8
