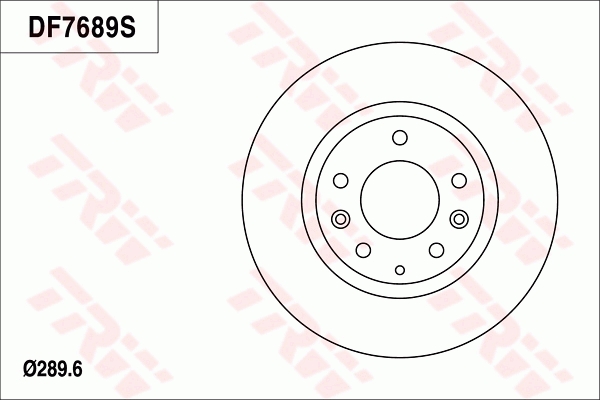

Specifications
| Bolt Hole Circle Ø (mm) | 114.3 |
| Brake Disc Thickness (mm) | 22 |
| Brake Disc Type Vented | |
| Centering Diameter (mm) | 72 |
| Height (mm) | 45.1 |
| Minimum thickness (mm) | 20 |
| Number of Holes 5 | |
| Outer Diameter (mm) | 290 |
| Thread Size 13.1 | |
Bolt Hole Circle Ø [mm] 114,3, Brake Disc Thickness [mm] 22, Brake Disc Type Vented, Centering Diameter [mm] 72, Height [mm] 45,1, Minimum thickness [mm] 20, Number of Holes 5, Outer Diameter [mm] 290, Thread Size 13.1
