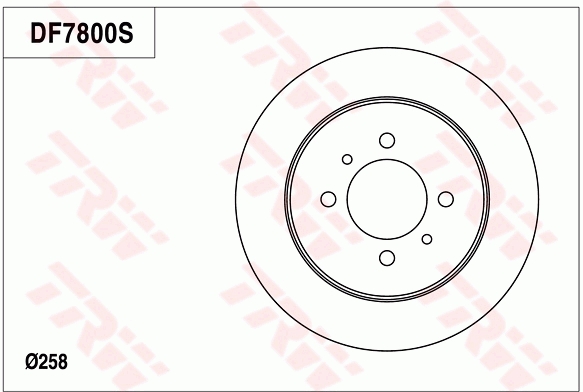

Specifications
| Bolt Hole Circle Ø (mm) | 100 |
| Brake Disc Thickness (mm) | 9 |
| Brake Disc Type solid | |
| Centering Diameter (mm) | 68 |
| Height (mm) | 45 |
| Minimum thickness (mm) | 8 |
| Number of Holes 4 | |
| Outer Diameter (mm) | 258 |
| Thread Size 12.6 | |
Bolt Hole Circle Ø [mm] 100, Brake Disc Thickness [mm] 9, Brake Disc Type solid, Centering Diameter [mm] 68, Height [mm] 45, Minimum thickness [mm] 8, Number of Holes 4, Outer Diameter [mm] 258, Thread Size 12.6
