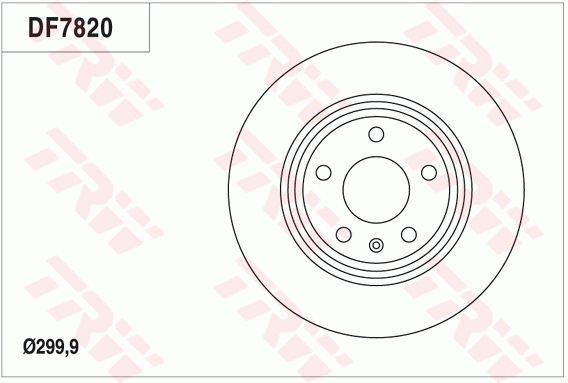

Brake Disc
Braking System

Brake Disc

Part No. DF7820 · SKU DF7820-TRW
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)12
Brake Disc Type solid
Centering Diameter (mm)68
Height (mm)36.2
Minimum thickness (mm)10
Number of Holes 5
Outer Diameter (mm)300
Thread Size 15.3
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 12, Brake Disc Type solid, Centering Diameter [mm] 68, Height [mm] 36,2, Minimum thickness [mm] 10, Number of Holes 5, Outer Diameter [mm] 300, Thread Size 15.3
Fits: AUDI

Interchangeable Part Numbers

A.B.S.08.A759.11 A.P.14980 A.P.14980 V A.P.14980 X AISINT6R650S AKEBONOBN-0027E AKEBONOBN-0027 ATE24.0312-0178.1 ATE24011201781 BOSCH0 986 T16 712 BREMBO08.A759.1X DBA AustraliaDBA2823E FTE9072049 FTE9082036 FTE9082608 FTEBS7304 FTEBS7304B FTEBS7304HB ICER78BD6075-2 KAWE61112 00 MAGNETI MARELLI360406095000 MAGNETI MARELLI360406095001 MAGNETI MARELLI360406095002 MAGNETI MARELLI361302040349 MAPCO25881C Omnicraft2134668 OPTIMALBS-8510C RAICAMRD01132 SWAG30221211 WOKINGD61112.00

OE Numbers — AUDI

8K0 615 601 B
MakeModelType / Engine YearsCCkWHP
AUDI A5 (8T3) 45 TFSI quattro 2007 – 2017 1984 165 224
AUDI A5 (8T3) 2.0 TFSI Flexfuel quattro 2007 – 2017 1984 162 220
AUDI A5 (8T3) S5 quattro 2007 – 2017 2995 249 339
AUDI A5 (8T3) 2.0 TFSI Flexfuel quattro 2007 – 2017 1984 155 211
AUDI A5 (8T3) 1.8 35 TFSI 2007 – 2017 1798 130 177
AUDI A5 (8T3) 2.0 TFSI 2007 – 2017 1984 169 230
AUDI A5 (8T3) 2.0 TFSI quattro 2007 – 2017 1984 169 230
AUDI A5 (8T3) 45 TFSI quattro 2007 – 2017 1984 169 230
AUDI A5 (8T3) 45 TFSI 2007 – 2017 1984 169 230
AUDI A5 (8T3) 45 TFSI 2007 – 2017 1984 165 224
AUDI A5 (8T3) RS5 quattro 2007 – 2017 4163 331 450
AUDI A5 (8T3) 2.0 TDI 2007 – 2017 1968 130 177
AUDI A5 (8T3) 3.0 TDI 2007 – 2017 2967 150 204
AUDI A5 (8T3) 3.0 TDI quattro 2007 – 2017 2967 180 245
AUDI A5 (8T3) S5 quattro 2007 – 2017 2995 245 333
AUDI A5 (8T3) 1.8 TFSI 2007 – 2017 1798 125 170
AUDI A5 (8T3) 3.2 FSI 2007 – 2017 3197 195 265
AUDI A5 (8T3) S5 quattro 2007 – 2017 4163 260 354
AUDI A5 (8T3) 2.7 TDI 2007 – 2017 2698 140 190
AUDI A5 (8T3) 3.0 TDI quattro 2007 – 2017 2967 176 240
AUDI A5 (8T3) 2.0 TDI quattro 2007 – 2017 1968 130 177
AUDI A5 (8T3) 3.0 TFSI quattro 2007 – 2017 2995 200 272
AUDI A5 (8T3) 3.2 FSI quattro 2007 – 2017 3197 195 265
AUDI A5 (8T3) 2.0 TFSI 2007 – 2017 1984 132 180
AUDI A5 (8T3) 2.0 TFSI 2007 – 2017 1984 155 211
AUDI A5 (8T3) 2.0 TFSI quattro 2007 – 2017 1984 155 211
AUDI A5 (8T3) 2.7 TDI 2007 – 2017 2698 120 163
AUDI A5 (8T3) 3.0 TDI quattro 2007 – 2017 2967 155 211
AUDI A5 (8T3) 2.0 TDI 2007 – 2017 1968 125 170
AUDI A5 (8T3) 2.0 TDI quattro 2007 – 2017 1968 125 170
AUDI A5 (8T3) 1.8 TFSI 2007 – 2017 1798 118 160
AUDI A5 (8T3) 2.0 TDI 2007 – 2017 1968 120 163
AUDI A5 (8T3) 2.0 TFSI 2007 – 2017 1984 165 224
AUDI A5 (8T3) 2.0 TFSI quattro 2007 – 2017 1984 165 224
AUDI A5 (8T3) 2.0 TDI 2007 – 2017 1968 140 190
AUDI A5 (8T3) 2.0 TDI quattro 2007 – 2017 1968 140 190
AUDI A5 (8T3) 2.0 TFSI quattro 2007 – 2017 1984 162 220
AUDI A5 (8T3) 1.8 TFSI 2007 – 2017 1798 130 177
AUDI A5 (8T3) 3.0 TDI quattro 2007 – 2017 2967 160 218
AUDI A5 Convertible (8F7) 2.0 TDI 2009 – 2017 1968 130 177
AUDI A5 Convertible (8F7) 3.0 TDI 2009 – 2017 2967 150 204
AUDI A5 Convertible (8F7) 3.0 TDI quattro 2009 – 2017 2967 180 245
AUDI A5 Convertible (8F7) 1.8 TFSI 2009 – 2017 1798 125 170
AUDI A5 Convertible (8F7) 2.0 TDI 2009 – 2017 1968 105 143
AUDI A5 Convertible (8F7) 2.0 TDI quattro 2009 – 2017 1968 130 177
AUDI A5 Convertible (8F7) 3.0 TFSI quattro 2009 – 2017 2995 200 272
AUDI A5 Convertible (8F7) 2.0 TFSI 2009 – 2017 1984 132 180
AUDI A5 Convertible (8F7) 2.0 TFSI 2009 – 2017 1984 155 211
AUDI A5 Convertible (8F7) 2.0 TFSI quattro 2009 – 2017 1984 155 211
AUDI A5 Convertible (8F7) 3.2 FSI 2009 – 2017 3197 195 265
AUDI A5 Convertible (8F7) 3.2 FSI quattro 2009 – 2017 3197 195 265
AUDI A5 Convertible (8F7) 2.7 TDI 2009 – 2017 2698 140 190
AUDI A5 Convertible (8F7) 3.0 TDI quattro 2009 – 2017 2967 176 240
AUDI A5 Convertible (8F7) 2.0 TDI 2009 – 2017 1968 125 170
AUDI A5 Convertible (8F7) S5 quattro 2009 – 2017 2995 245 333
AUDI A5 Convertible (8F7) 2.0 TDI 2009 – 2017 1968 120 163
AUDI A5 Convertible (8F7) 2.7 TDI 2009 – 2017 2698 120 163
AUDI A5 Convertible (8F7) 1.8 TFSI 2009 – 2017 1798 118 160
AUDI A5 Convertible (8F7) RS5 quattro 2009 – 2017 4163 331 450
AUDI A5 Convertible (8F7) 2.0 TDI 2009 – 2017 1968 110 150
AUDI A5 Convertible (8F7) 2.0 TFSI 2009 – 2017 1984 165 224
AUDI A5 Convertible (8F7) 2.0 TFSI quattro 2009 – 2017 1984 165 224
AUDI A5 Convertible (8F7) 2.0 TDI 2009 – 2017 1968 140 190
AUDI A5 Convertible (8F7) 2.0 TDI quattro 2009 – 2017 1968 140 190
AUDI A5 Convertible (8F7) 2.0 TFSI 2009 – 2017 1984 162 220
AUDI A5 Convertible (8F7) 2.0 TFSI quattro 2009 – 2017 1984 162 220
AUDI A5 Convertible (8F7) 2.0 45 TFSI quattro 2009 – 2017 1984 169 230
AUDI A5 Convertible (8F7) 2.0 45 TFSI 2009 – 2017 1984 169 230
AUDI A5 Convertible (8F7) 2.0 45 TFSI 2009 – 2017 1984 165 224
AUDI A5 Convertible (8F7) 2.0 45 TFSI quattro 2009 – 2017 1984 165 224
AUDI A5 Convertible (8F7) 2.0 TFSI Flexfuel quattro 2009 – 2017 1984 155 211
AUDI A5 Convertible (8F7) 1.8 TFSI 2009 – 2017 1798 130 177
AUDI A5 Convertible (8F7) 2.0 TFSI quattro 2009 – 2017 1984 162 220
AUDI A5 Convertible (8F7) 3.0 TDI quattro 2009 – 2017 2967 160 218
AUDI A5 Convertible (8F7) 2.0 TFSI Flexfuel quattro 2009 – 2017 1984 162 220
AUDI A5 Convertible (8F7) 2.0 TFSI quattro 2009 – 2017 1984 169 230
AUDI A5 Convertible (8F7) 2.0 TFSI 2009 – 2017 1984 169 230
AUDI A5 Sportback (8TA) 1.8 TFSI 2007 – 2017 1798 130 177
AUDI A5 Sportback (8TA) 45 TFSI quattro 2007 – 2017 1984 165 224
AUDI A5 Sportback (8TA) 45 TFSI 2007 – 2017 1984 165 224
AUDI A5 Sportback (8TA) 3.0 TDI quattro 2007 – 2017 2967 160 218
AUDI A5 Sportback (8TA) 2.0 TFSI quattro 2007 – 2017 1984 169 230
AUDI A5 Sportback (8TA) 45 TFSI quattro 2007 – 2017 1984 169 230
AUDI A5 Sportback (8TA) 45 TFSI 2007 – 2017 1984 169 230
AUDI A5 Sportback (8TA) 2.0 TFSI 2007 – 2017 1984 169 230
AUDI A5 Sportback (8TA) 1.8 35 TFSI 2007 – 2017 1798 130 177
AUDI A5 Sportback (8TA) 2.0 TDI 2007 – 2017 1968 130 177
AUDI A5 Sportback (8TA) 3.0 TDI 2007 – 2017 2967 150 204
AUDI A5 Sportback (8TA) 3.0 TDI quattro 2007 – 2017 2967 180 245
AUDI A5 Sportback (8TA) 1.8 TFSI 2007 – 2017 1798 125 170
AUDI A5 Sportback (8TA) 3.0 TFSI quattro 2007 – 2017 2995 200 272
AUDI A5 Sportback (8TA) 2.0 TDI quattro 2007 – 2017 1968 130 177
AUDI A5 Sportback (8TA) 2.0 TFSI 2007 – 2017 1984 132 180
AUDI A5 Sportback (8TA) 2.0 TFSI quattro 2007 – 2017 1984 155 211
AUDI A5 Sportback (8TA) 3.2 FSI quattro 2007 – 2017 3197 195 265
AUDI A5 Sportback (8TA) 2.0 TDI 2007 – 2017 1968 125 170
AUDI A5 Sportback (8TA) 2.7 TDI 2007 – 2017 2698 140 190
AUDI A5 Sportback (8TA) 3.0 TDI quattro 2007 – 2017 2967 176 240
AUDI A5 Sportback (8TA) 2.0 TDI 2007 – 2017 1968 120 163
AUDI A5 Sportback (8TA) 1.8 TFSI 2007 – 2017 1798 118 160
AUDI A5 Sportback (8TA) 2.0 TFSI 2007 – 2017 1984 155 211
AUDI A5 Sportback (8TA) S5 quattro 2007 – 2017 2995 245 333
AUDI A5 Sportback (8TA) 2.0 TDI 2007 – 2017 1968 100 136
AUDI A5 Sportback (8TA) 2.0 TDI 2007 – 2017 1968 105 143
AUDI A5 Sportback (8TA) 2.7 TDI 2007 – 2017 2698 120 163
AUDI A5 Sportback (8TA) 2.0 TDI quattro 2007 – 2017 1968 125 170
AUDI A5 Sportback (8TA) 2.0 TFSI 2007 – 2017 1984 165 224
AUDI A5 Sportback (8TA) 2.0 TFSI quattro 2007 – 2017 1984 165 224
AUDI A5 Sportback (8TA) 2.0 TDI 2007 – 2017 1968 110 150
AUDI A5 Sportback (8TA) 2.0 TDI 2007 – 2017 1968 140 190
AUDI A5 Sportback (8TA) 2.0 TDI quattro 2007 – 2017 1968 140 190
AUDI A5 Sportback (8TA) 1.8 TFSI 2007 – 2017 1798 106 144
AUDI A7 Sportback (4GA, 4GF) 3.0 TDI 2010 – 2019 2967 150 204
AUDI A7 Sportback (4GA, 4GF) 3.0 TDI quattro 2010 – 2019 2967 150 204
AUDI A7 Sportback (4GA, 4GF) 2.8 FSI 2010 – 2019 2773 150 204
AUDI A7 Sportback (4GA, 4GF) 3.0 TFSI quattro 2010 – 2019 2995 228 310
AUDI A7 Sportback (4GA, 4GF) S7 quattro 2010 – 2019 3993 309 420
AUDI A7 Sportback (4GA, 4GF) 3.0 TDI quattro 2010 – 2019 2967 230 313
AUDI A7 Sportback (4GA, 4GF) 2.8 FSI quattro 2010 – 2019 2773 150 204
AUDI A7 Sportback (4GA, 4GF) 3.0 TFSI quattro 2010 – 2019 2995 220 300
AUDI A7 Sportback (4GA, 4GF) 3.0 TDI quattro 2010 – 2019 2967 180 245
AUDI A7 Sportback (4GA, 4GF) 3.0 TDI quattro 2010 – 2019 2967 176 239
AUDI A7 Sportback (4GA, 4GF) RS7 quattro 2010 – 2019 3993 412 560
AUDI A7 Sportback (4GA, 4GF) 2.5 FSI 2010 – 2019 2498 150 204
AUDI A7 Sportback (4GA, 4GF) 3.0 TDI quattro 2010 – 2019 2967 160 218
AUDI A7 Sportback (4GA, 4GF) 3.0 TDI 2010 – 2019 2967 160 218
AUDI A7 Sportback (4GA, 4GF) 3.0 TFSI quattro 2010 – 2019 2995 245 333
AUDI A7 Sportback (4GA, 4GF) 3.0 TDI quattro 2010 – 2019 2967 200 272
AUDI A7 Sportback (4GA, 4GF) 3.0 TDI quattro 2010 – 2019 2967 235 320
AUDI A7 Sportback (4GA, 4GF) S7 quattro 2010 – 2019 3993 331 450
AUDI A7 Sportback (4GA, 4GF) 3.0 TDI quattro 2010 – 2019 2967 155 211
AUDI A7 Sportback (4GA, 4GF) 2.0 TFSI 2010 – 2019 1984 185 252
AUDI A7 Sportback (4GA, 4GF) 3.0 TDI quattro 2010 – 2019 2967 240 326
AUDI A7 Sportback (4GA, 4GF) 2.0 40 TFSI quattro 2010 – 2019 1984 185 252
AUDI A7 Sportback (4GA, 4GF) 1.8 TFSI 2010 – 2019 1798 140 190
AUDI A7 Sportback (4GA, 4GF) 2.0 TFSI quattro 2010 – 2019 1984 183 249
AUDI A7 Sportback (4GA, 4GF) 2.0 TFSI quattro 2010 – 2019 1984 185 252
AUDI A7 Sportback (4GA, 4GF) 1.8 35 TFSI 2010 – 2019 1798 140 190
AUDI A7 Sportback (4GA, 4GF) 2.0 40 TFSI 2010 – 2019 1984 185 252
AUDI A7 Sportback (4GA, 4GF) 3.0 50 TFSI quattro 2010 – 2019 2995 245 333
AUDI A7 Sportback (4GA, 4GF) 3.0 TFSI QUATTRO 2010 – 2019 2995 250 340
AUDI A7 Sportback (4GA, 4GF) 3.0 TDI 2010 – 2019 2967 140 190
AUDI A7 Sportback (4GA, 4GF) 3.0 TDI quattro 2010 – 2019 2967 140 190
AUDI A7 Sportback (4GA, 4GF) RS7 performance quattro 2010 – 2019 3993 445 605
AUDI A7 Sportback (4GA, 4GF) 2.8 FSI quattro 2010 – 2019 2773 162 220
AUDI A7 Sportback (4GA, 4GF) 3.0 TDI 2010 – 2019 2967 155 211
