Brake Disc
Braking System

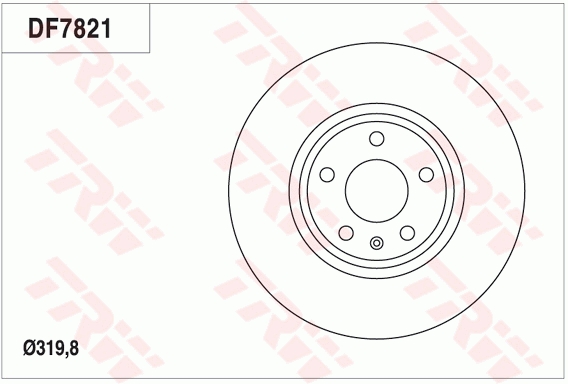

Brake Disc

Part No. DF7821 · SKU DF7821-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)29.8
Brake Disc Type Vented
Centering Diameter (mm)68
Height (mm)52.1
Minimum thickness (mm)28
Number of Holes 5
Outer Diameter (mm)320
Thread Size 15.3
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 29,8, Brake Disc Type Vented, Centering Diameter [mm] 68, Height [mm] 52,1, Minimum thickness [mm] 28, Number of Holes 5, Outer Diameter [mm] 320, Thread Size 15.3
Fits: AUDI

Interchangeable Part Numbers

A.B.S.09.A758.11 A.P.25213 A.P. 25213V A.P.25213V A.P. 25213X A.P.25213X AKEBONOBN-0076E AKEBONOBN-0076 AKRON-MALÒ1110130 APECDSK2539 ATE24.0330-0193.1 ATE24013001931 BOSCH 0 986 T16755 BOSCH0986T16755 BREMBO09.A758.1X BREMBO09A75810 DELPHIBG4080 DELPHIBG4080C DONPCD11021 FEBI BILSTEIN36231 FERODODDF1664 FERODODDF1664C FERODODDF1664C-D FERODODDF1664DLC-1-D FERODODDF1664DRC-1-D FERODODDF1664X FIRST LINEFBD1773 FTE9071019 FTE9081068 FTEBS7699 FTEBS7699B HELLA 8DD 355113-911 HELLA8DD355113911 HELLA 8DD 355113-912 HELLA8DD355113912 HELLA 8DD 355128-721 HELLA8DD355128721 JURID562511JC-1 KAWE 6111010 KAWE6111010 LPRA1033V LPRA1033VR MAGNETI MARELLI360204000124 MAGNETI MARELLI360406081500 MAGNETI MARELLI360406081501 MAGNETI MARELLI360406081502 MAGNETI MARELLI361302040576 METELLI231031C METZGER6110425 MEYLE1155211117 MEYLE1835211117PD MGAD1745 MINTEXMDC2001C NK2047127 NK3147127 Omnicraft2134496 OPEN PARTSBDR2412.20 OPTIMALBS-8504C OPTIMALBS-8504HC OPTIMALBS-8504 PAGID54600HC RAICAMRD01130 REMYRAD1172C sbs18153147127 SWAG30221208 SWAG30936231 TEXTAR92160000 TEXTAR92160005 VAICOV10-80089 VALEO197824 WOKINGD61110.10

OE Numbers — AUDI 8K0 615 301

A

OE Numbers — AUDI

8K0615301A
MakeModelType / Engine YearsCCkWHP
AUDI A5 (8T3) 45 TFSI 2007 – 2017 1984 165 224
AUDI A5 (8T3) 45 TFSI quattro 2007 – 2017 1984 165 224
AUDI A5 (8T3) RS5 quattro 2007 – 2017 4163 331 450
AUDI A5 (8T3) 2.0 TDI 2007 – 2017 1968 130 177
AUDI A5 (8T3) 3.0 TDI 2007 – 2017 2967 150 204
AUDI A5 (8T3) 3.0 TDI quattro 2007 – 2017 2967 180 245
AUDI A5 (8T3) S5 quattro 2007 – 2017 2995 245 333
AUDI A5 (8T3) 1.8 TFSI 2007 – 2017 1798 125 170
AUDI A5 (8T3) 3.2 FSI 2007 – 2017 3197 195 265
AUDI A5 (8T3) S5 quattro 2007 – 2017 4163 260 354
AUDI A5 (8T3) 2.7 TDI 2007 – 2017 2698 140 190
AUDI A5 (8T3) 3.0 TDI quattro 2007 – 2017 2967 176 240
AUDI A5 (8T3) 2.0 TDI quattro 2007 – 2017 1968 130 177
AUDI A5 (8T3) 3.0 TFSI quattro 2007 – 2017 2995 200 272
AUDI A5 (8T3) 3.2 FSI quattro 2007 – 2017 3197 195 265
AUDI A5 (8T3) 2.0 TFSI 2007 – 2017 1984 132 180
AUDI A5 (8T3) 2.0 TFSI 2007 – 2017 1984 155 211
AUDI A5 (8T3) 2.0 TFSI quattro 2007 – 2017 1984 155 211
AUDI A5 (8T3) 2.7 TDI 2007 – 2017 2698 120 163
AUDI A5 (8T3) 3.0 TDI quattro 2007 – 2017 2967 155 211
AUDI A5 (8T3) 2.0 TDI 2007 – 2017 1968 125 170
AUDI A5 (8T3) 2.0 TDI quattro 2007 – 2017 1968 125 170
AUDI A5 (8T3) 1.8 TFSI 2007 – 2017 1798 118 160
AUDI A5 (8T3) 2.0 TDI 2007 – 2017 1968 120 163
AUDI A5 (8T3) 2.0 TFSI 2007 – 2017 1984 165 224
AUDI A5 (8T3) 2.0 TFSI quattro 2007 – 2017 1984 165 224
AUDI A5 (8T3) 2.0 TDI 2007 – 2017 1968 140 190
AUDI A5 (8T3) 2.0 TDI quattro 2007 – 2017 1968 140 190
AUDI A5 (8T3) 2.0 TFSI quattro 2007 – 2017 1984 162 220
AUDI A5 (8T3) 1.8 TFSI 2007 – 2017 1798 130 177
AUDI A5 (8T3) 3.0 TDI quattro 2007 – 2017 2967 160 218
AUDI A5 (8T3) 2.0 TFSI quattro 2007 – 2017 1984 169 230
AUDI A5 (8T3) 2.0 TFSI 2007 – 2017 1984 169 230
AUDI A5 (8T3) 2.0 TFSI Flexfuel quattro 2007 – 2017 1984 162 220
AUDI A5 (8T3) S5 quattro 2007 – 2017 2995 249 339
AUDI A5 (8T3) 2.0 TFSI Flexfuel quattro 2007 – 2017 1984 155 211
AUDI A5 (8T3) 1.8 35 TFSI 2007 – 2017 1798 130 177
AUDI A5 (8T3) 45 TFSI quattro 2007 – 2017 1984 169 230
AUDI A5 (8T3) 45 TFSI 2007 – 2017 1984 169 230
AUDI A5 Convertible (8F7) 2.0 TDI 2009 – 2017 1968 130 177
AUDI A5 Convertible (8F7) 3.0 TDI 2009 – 2017 2967 150 204
AUDI A5 Convertible (8F7) 3.0 TDI quattro 2009 – 2017 2967 180 245
AUDI A5 Convertible (8F7) 1.8 TFSI 2009 – 2017 1798 125 170
AUDI A5 Convertible (8F7) 2.0 TDI 2009 – 2017 1968 105 143
AUDI A5 Convertible (8F7) 2.0 TDI quattro 2009 – 2017 1968 130 177
AUDI A5 Convertible (8F7) 3.0 TFSI quattro 2009 – 2017 2995 200 272
AUDI A5 Convertible (8F7) 2.0 TFSI 2009 – 2017 1984 132 180
AUDI A5 Convertible (8F7) 2.0 TFSI 2009 – 2017 1984 155 211
AUDI A5 Convertible (8F7) 2.0 TFSI quattro 2009 – 2017 1984 155 211
AUDI A5 Convertible (8F7) 3.2 FSI 2009 – 2017 3197 195 265
AUDI A5 Convertible (8F7) 3.2 FSI quattro 2009 – 2017 3197 195 265
AUDI A5 Convertible (8F7) 2.7 TDI 2009 – 2017 2698 140 190
AUDI A5 Convertible (8F7) 3.0 TDI quattro 2009 – 2017 2967 176 240
AUDI A5 Convertible (8F7) 2.0 TDI 2009 – 2017 1968 125 170
AUDI A5 Convertible (8F7) S5 quattro 2009 – 2017 2995 245 333
AUDI A5 Convertible (8F7) 2.0 TDI 2009 – 2017 1968 120 163
AUDI A5 Convertible (8F7) 2.7 TDI 2009 – 2017 2698 120 163
AUDI A5 Convertible (8F7) 1.8 TFSI 2009 – 2017 1798 118 160
AUDI A5 Convertible (8F7) RS5 quattro 2009 – 2017 4163 331 450
AUDI A5 Convertible (8F7) 2.0 TDI 2009 – 2017 1968 110 150
AUDI A5 Convertible (8F7) 2.0 TFSI 2009 – 2017 1984 165 224
AUDI A5 Convertible (8F7) 2.0 TFSI quattro 2009 – 2017 1984 165 224
AUDI A5 Convertible (8F7) 2.0 TDI 2009 – 2017 1968 140 190
AUDI A5 Convertible (8F7) 2.0 TDI quattro 2009 – 2017 1968 140 190
AUDI A5 Convertible (8F7) 2.0 TFSI 2009 – 2017 1984 162 220
AUDI A5 Convertible (8F7) 2.0 TFSI quattro 2009 – 2017 1984 162 220
AUDI A5 Convertible (8F7) 1.8 TFSI 2009 – 2017 1798 130 177
AUDI A5 Convertible (8F7) 3.0 TDI quattro 2009 – 2017 2967 160 218
AUDI A5 Convertible (8F7) 2.0 TFSI 2009 – 2017 1984 169 230
AUDI A5 Convertible (8F7) 2.0 TFSI quattro 2009 – 2017 1984 169 230
AUDI A5 Convertible (8F7) 2.0 TFSI Flexfuel quattro 2009 – 2017 1984 162 220
AUDI A5 Convertible (8F7) 2.0 TFSI quattro 2009 – 2017 1984 162 220
AUDI A5 Convertible (8F7) 2.0 TFSI Flexfuel quattro 2009 – 2017 1984 155 211
AUDI A5 Convertible (8F7) 2.0 45 TFSI 2009 – 2017 1984 169 230
AUDI A5 Convertible (8F7) 2.0 45 TFSI quattro 2009 – 2017 1984 169 230
AUDI A5 Convertible (8F7) 2.0 45 TFSI 2009 – 2017 1984 165 224
AUDI A5 Convertible (8F7) 2.0 45 TFSI quattro 2009 – 2017 1984 165 224
AUDI A5 Sportback (8TA) 45 TFSI 2007 – 2017 1984 169 230
AUDI A5 Sportback (8TA) 45 TFSI quattro 2007 – 2017 1984 169 230
AUDI A5 Sportback (8TA) 45 TFSI 2007 – 2017 1984 165 224
AUDI A5 Sportback (8TA) 45 TFSI quattro 2007 – 2017 1984 165 224
AUDI A5 Sportback (8TA) 2.0 TDI 2007 – 2017 1968 130 177
AUDI A5 Sportback (8TA) 3.0 TDI 2007 – 2017 2967 150 204
AUDI A5 Sportback (8TA) 3.0 TDI quattro 2007 – 2017 2967 180 245
AUDI A5 Sportback (8TA) 1.8 TFSI 2007 – 2017 1798 125 170
AUDI A5 Sportback (8TA) 3.0 TFSI quattro 2007 – 2017 2995 200 272
AUDI A5 Sportback (8TA) 2.0 TDI quattro 2007 – 2017 1968 130 177
AUDI A5 Sportback (8TA) 2.0 TFSI 2007 – 2017 1984 132 180
AUDI A5 Sportback (8TA) 2.0 TFSI quattro 2007 – 2017 1984 155 211
AUDI A5 Sportback (8TA) 3.2 FSI quattro 2007 – 2017 3197 195 265
AUDI A5 Sportback (8TA) 2.0 TDI 2007 – 2017 1968 125 170
AUDI A5 Sportback (8TA) 2.7 TDI 2007 – 2017 2698 140 190
AUDI A5 Sportback (8TA) 3.0 TDI quattro 2007 – 2017 2967 176 240
AUDI A5 Sportback (8TA) 2.0 TDI 2007 – 2017 1968 120 163
AUDI A5 Sportback (8TA) 1.8 TFSI 2007 – 2017 1798 118 160
AUDI A5 Sportback (8TA) 2.0 TFSI 2007 – 2017 1984 155 211
AUDI A5 Sportback (8TA) S5 quattro 2007 – 2017 2995 245 333
AUDI A5 Sportback (8TA) 2.0 TDI 2007 – 2017 1968 100 136
AUDI A5 Sportback (8TA) 2.0 TDI 2007 – 2017 1968 105 143
AUDI A5 Sportback (8TA) 2.7 TDI 2007 – 2017 2698 120 163
AUDI A5 Sportback (8TA) 2.0 TDI quattro 2007 – 2017 1968 125 170
AUDI A5 Sportback (8TA) 2.0 TFSI 2007 – 2017 1984 165 224
AUDI A5 Sportback (8TA) 2.0 TFSI quattro 2007 – 2017 1984 165 224
AUDI A5 Sportback (8TA) 2.0 TDI 2007 – 2017 1968 110 150
AUDI A5 Sportback (8TA) 2.0 TDI 2007 – 2017 1968 140 190
AUDI A5 Sportback (8TA) 2.0 TDI quattro 2007 – 2017 1968 140 190
AUDI A5 Sportback (8TA) 1.8 TFSI 2007 – 2017 1798 106 144
AUDI A5 Sportback (8TA) 1.8 TFSI 2007 – 2017 1798 130 177
AUDI A5 Sportback (8TA) 3.0 TDI quattro 2007 – 2017 2967 160 218
AUDI A5 Sportback (8TA) 2.0 TFSI 2007 – 2017 1984 169 230
AUDI A5 Sportback (8TA) 2.0 TFSI quattro 2007 – 2017 1984 169 230
AUDI A5 Sportback (8TA) 1.8 35 TFSI 2007 – 2017 1798 130 177
