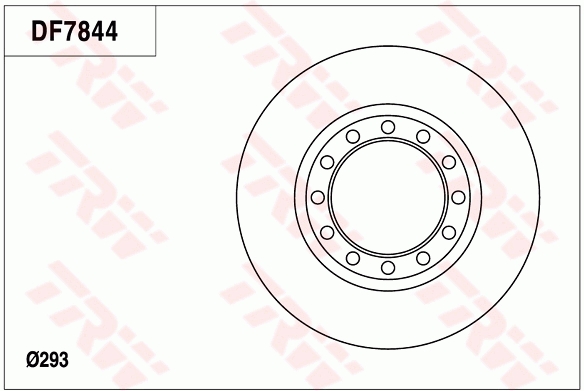

Specifications
| Bolt Hole Circle Ø (mm) | 136 |
| Brake Disc Thickness (mm) | 40 |
| Brake Disc Type Vented | |
| Centering Diameter (mm) | 110 |
| Height (mm) | 57.5 |
| Minimum thickness (mm) | 37 |
| Number of Holes 12 | |
| Outer Diameter (mm) | 293 |
| Thread Size 12.5 | |
Bolt Hole Circle Ø [mm] 136, Brake Disc Thickness [mm] 40, Brake Disc Type Vented, Centering Diameter [mm] 110, Height [mm] 57,5, Minimum thickness [mm] 37, Number of Holes 12, Outer Diameter [mm] 293, Thread Size 12.5
