Brake Disc
Braking System

Brake Disc

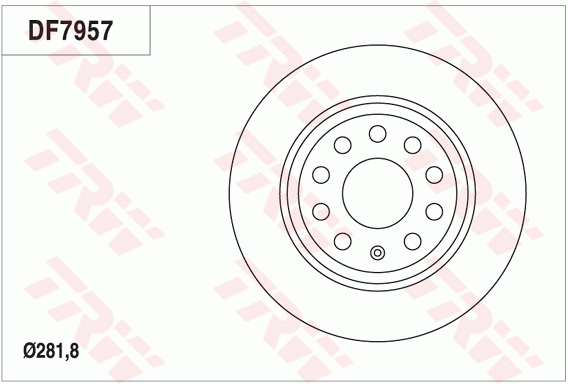

Part No. DF7957 · SKU DF7957-TRW
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)12
Brake Disc Type solid
Centering Diameter (mm)65
Height (mm)48.3
Minimum thickness (mm)10
Number of Holes 9
Outer Diameter (mm)282
Thread Size 15.3
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 12, Brake Disc Type solid, Centering Diameter [mm] 65, Height [mm] 48,3, Minimum thickness [mm] 10, Number of Holes 9, Outer Diameter [mm] 282, Thread Size 15.3
Fits: AUDI, AUDI (FAW), MG (SAIC), ROEWE (SAIC), SKODA (SVW), VW (FAW), VW (SVW)

Interchangeable Part Numbers

DELPHIBG5161C FERODODDF2703C-1-D

OE Numbers — MG (SAIC)

10174828

OE Numbers — VW (FAW) 3CD 615

601

OE Numbers — VW (FAW)

3CD615601
MakeModelType / Engine YearsCCkWHP
AUDI Q3 (8UB, 8UG) 2.0 TDI 2011 – 2020 1968 110 150
AUDI Q3 (8UB, 8UG) 1.4 TFSi Flex 2011 – 2020 1395 110 150
AUDI Q3 (8UB, 8UG) 1.4 TFSI 2011 – 2020 1395 92 125
AUDI Q3 (8UB, 8UG) RS performance 2.5 quattro 2011 – 2020 2480 270 367
AUDI Q3 (8UB, 8UG) 2.0 TDI 2011 – 2020 1968 135 184
AUDI Q3 (8UB, 8UG) 2.0 TFSI 2011 – 2020 1984 132 180
AUDI Q3 (8UB, 8UG) 2.0 TDI 2011 – 2020 1968 88 120
AUDI Q3 (8UB, 8UG) RS 2.5 quattro 2011 – 2020 2480 250 340
AUDI Q3 (8UB, 8UG) 2.0 TFSI quattro 2011 – 2020 1984 132 180
AUDI Q3 (8UB, 8UG) 2.0 TFSI quattro 2011 – 2020 1984 162 220
AUDI Q3 (8UB, 8UG) 2.0 TDI quattro 2011 – 2020 1968 135 184
AUDI Q3 (8UB, 8UG) 2.0 TDI quattro 2011 – 2020 1968 110 150
AUDI Q3 (8UB, 8UG) 2.0 TDI quattro 2011 – 2020 1968 130 177
AUDI Q3 (8UB, 8UG) 2.0 TFSI quattro 2011 – 2020 1984 147 200
AUDI Q3 (8UB, 8UG) 2.0 TFSI 2011 – 2020 1984 147 200
AUDI Q3 (8UB, 8UG) 1.4 TSI 2011 – 2020 1395 110 150
AUDI Q3 (8UB, 8UG) RS 2.5 quattro 2011 – 2020 2480 228 310
AUDI Q3 (8UB, 8UG) 2.0 TDI 2011 – 2020 1968 130 177
AUDI Q3 (8UB, 8UG) 2.0 TDI quattro 2011 – 2020 1968 103 140
AUDI Q3 (8UB, 8UG) 2.0 TDI quattro 2011 – 2020 1968 120 163
AUDI Q3 (8UB, 8UG) 2.0 TDI 2011 – 2020 1968 100 136
AUDI Q3 (8UB, 8UG) 2.0 TFSI quattro 2011 – 2020 1984 125 170
AUDI Q3 (8UB, 8UG) 2.0 TDI 2011 – 2020 1968 103 140
AUDI Q3 (8UB, 8UG) 2.0 TFSI quattro 2011 – 2020 1984 155 211
