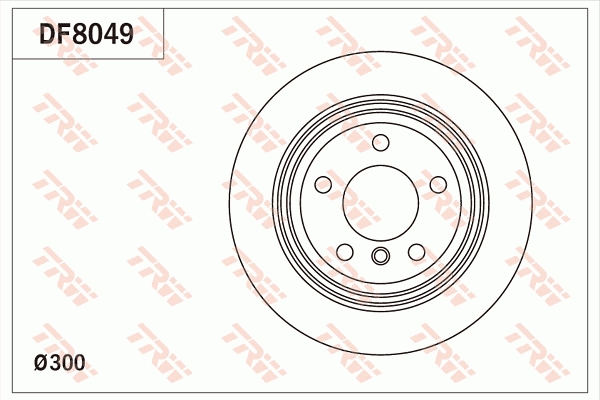

Specifications
| Bolt Hole Circle Ø (mm) | 120 |
| Brake Disc Thickness (mm) | 20.2 |
| Brake Disc Type Vented | |
| Centering Diameter (mm) | 75 |
| Height (mm) | 66.2 |
| Minimum thickness (mm) | 18.4 |
| Number of Holes 5 | |
| Outer Diameter (mm) | 300 |
| Thread Size 16.6 | |
Bolt Hole Circle Ø [mm] 120, Brake Disc Thickness [mm] 20,2, Brake Disc Type Vented, Centering Diameter [mm] 75, Height [mm] 66,2, Minimum thickness [mm] 18,4, Number of Holes 5, Outer Diameter [mm] 300, Thread Size 16.6
Fits: BMW, BMW (BRILLIANCE)
Fits: BMW, BMW (BRILLIANCE)
Interchangeable Part Numbers
OE Numbers — BMW (BRILLIANCE)
OE Numbers — BMW
| Make | Model | Type / Engine | Years | CC | kW | HP |
|---|---|---|---|---|---|---|
| BMW | 3 (F30, F80) | 335 i | 2011 – 2018 | 2979 | 250 | 340 |
| BMW | 3 (F30, F80) | 330 d xDrive | 2011 – 2018 | 2993 | 210 | 286 |
| BMW | 3 (F30, F80) | 325 d | 2011 – 2018 | 1995 | 155 | 211 |
| BMW | 3 (F30, F80) | 320 i xDrive | 2011 – 2018 | 1998 | 135 | 184 |
| BMW | 3 (F30, F80) | 320 i | 2011 – 2018 | 1998 | 135 | 184 |
| BMW | 3 (F30, F80) | M3 | 2011 – 2018 | 2979 | 317 | 431 |
| BMW | 3 (F30, F80) | 330 e | 2011 – 2018 | 1998 | 185 | 252 |
| BMW | 3 (F30, F80) | 320 d xDrive | 2011 – 2018 | 1995 | 140 | 190 |
| BMW | 3 (F30, F80) | 320 d xDrive | 2011 – 2018 | 1995 | 147 | 200 |
| BMW | 3 (F30, F80) | 320 d | 2011 – 2018 | 1995 | 140 | 190 |
| BMW | 3 (F30, F80) | 320 d | 2011 – 2018 | 1995 | 147 | 200 |
| BMW | 3 (F30, F80) | 328 i ActiveFlex | 2011 – 2018 | 1997 | 180 | 245 |
| BMW | 3 (F30, F80) | 335 i | 2011 – 2018 | 2979 | 240 | 326 |
| BMW | 3 (F30, F80) | 335 i xDrive | 2011 – 2018 | 2979 | 240 | 326 |
| BMW | 3 (F30, F80) | 318 d xDrive | 2011 – 2018 | 1995 | 105 | 143 |
| BMW | 3 (F30, F80) | 335 i xDrive | 2011 – 2018 | 2979 | 250 | 340 |
| BMW | 3 (F30, F80) | 320 i ActiveFlex | 2011 – 2018 | 1997 | 135 | 184 |
| BMW | 3 (F30, F80) | M3 Competition | 2011 – 2018 | 2979 | 331 | 450 |
| BMW | 3 (F30, F80) | 325 d | 2011 – 2018 | 1995 | 165 | 224 |
| BMW | 3 (F30, F80) | 340 i | 2011 – 2018 | 2998 | 265 | 360 |
| BMW | 3 (F30, F80) | 340 i xDrive | 2011 – 2018 | 2998 | 265 | 360 |
| BMW | 3 (F30, F80) | 318 i | 2011 – 2018 | 1499 | 100 | 136 |
| BMW | 3 (F30, F80) | 330 i | 2011 – 2018 | 1998 | 185 | 252 |
| BMW | 3 (F30, F80) | 330 i xDrive | 2011 – 2018 | 1998 | 185 | 252 |
| BMW | 3 (F30, F80) | 340 i | 2011 – 2018 | 2998 | 240 | 326 |
| BMW | 3 (F30, F80) | 340 i xDrive | 2011 – 2018 | 2998 | 240 | 326 |
| BMW | 3 (F30, F80) | 318 d | 2011 – 2018 | 1995 | 110 | 150 |
| BMW | 3 (F30, F80) | 318 d xDrive | 2011 – 2018 | 1995 | 110 | 150 |
| BMW | 3 (F30, F80) | 316 i | 2011 – 2018 | 1598 | 100 | 136 |
| BMW | 3 (F30, F80) | 335 i | 2011 – 2018 | 2979 | 225 | 306 |
| BMW | 3 (F30, F80) | 320 d | 2011 – 2018 | 1995 | 135 | 184 |
| BMW | 3 (F30, F80) | 320 d | 2011 – 2018 | 1995 | 120 | 163 |
| BMW | 3 (F30, F80) | 320 i | 2011 – 2018 | 1997 | 135 | 184 |
| BMW | 3 (F30, F80) | 316 d | 2011 – 2018 | 1995 | 85 | 116 |
| BMW | 3 (F30, F80) | 318 d | 2011 – 2018 | 1995 | 105 | 143 |
| BMW | 3 (F30, F80) | 335 d xDrive | 2011 – 2018 | 2993 | 230 | 313 |
| BMW | 3 (F30, F80) | 318 d | 2011 – 2018 | 1995 | 100 | 136 |
| BMW | 3 (F30, F80) | 320 d xDrive | 2011 – 2018 | 1995 | 120 | 163 |
| BMW | 3 (F30, F80) | 328 i | 2011 – 2018 | 1997 | 180 | 245 |
| BMW | 3 (F30, F80) | 320 i xDrive | 2011 – 2018 | 1997 | 135 | 184 |
| BMW | 3 (F30, F80) | 320 d xDrive | 2011 – 2018 | 1995 | 135 | 184 |
| BMW | 3 (F30, F80) | 328 i xDrive | 2011 – 2018 | 1997 | 180 | 245 |
| BMW | 3 (F30, F80) | 335 i xDrive | 2011 – 2018 | 2979 | 225 | 306 |
| BMW | 3 (F30, F80) | 320 i | 2011 – 2018 | 1598 | 125 | 170 |
| BMW | 3 (F30, F80) | ActiveHybrid | 2011 – 2018 | 2979 | 250 | 340 |
| BMW | 3 (F30, F80) | 330 d | 2011 – 2018 | 2993 | 210 | 286 |
| BMW | 3 (F30, F80) | 328i | 2011 – 2018 | 1997 | 160 | 218 |
| BMW | 3 (F30, F80) | M3 CS | 2011 – 2018 | 2979 | 338 | 460 |
| BMW | 3 (F30, F80) | 335 i | 2011 – 2018 | 2979 | 224 | 305 |
| BMW | 3 (F30, F80) | 328 i xDrive | 2011 – 2018 | 1997 | 179 | 243 |
| BMW | 3 (F30, F80) | 330 d | 2011 – 2018 | 2993 | 190 | 258 |
| BMW | 3 (F30, F80) | 320 i | 2011 – 2018 | 1997 | 134 | 182 |
| BMW | 3 (F30, F80) | 320 i xDrive | 2011 – 2018 | 1997 | 134 | 182 |
| BMW | 3 (F30, F80) | 330 d xDrive | 2011 – 2018 | 2993 | 190 | 258 |
| BMW | 3 (F30, F80) | 325 d | 2011 – 2018 | 1995 | 160 | 218 |
| BMW | 3 Gran Turismo (F34) | 330 i xDrive | 2012 – present | 1998 | 183 | 249 |
| BMW | 3 Gran Turismo (F34) | 330 d xDrive | 2012 – present | 2993 | 210 | 286 |
| BMW | 3 Gran Turismo (F34) | 330 d | 2012 – present | 2993 | 210 | 286 |
| BMW | 3 Gran Turismo (F34) | 320 d xDrive | 2012 – present | 1995 | 120 | 163 |
| BMW | 3 Gran Turismo (F34) | 330 i | 2012 – present | 1998 | 185 | 252 |
| BMW | 3 Gran Turismo (F34) | 330 i xDrive | 2012 – present | 1998 | 185 | 252 |
| BMW | 3 Gran Turismo (F34) | 340 i | 2012 – present | 2998 | 240 | 326 |
| BMW | 3 Gran Turismo (F34) | 340 i xDrive | 2012 – present | 2998 | 240 | 326 |
| BMW | 3 Gran Turismo (F34) | 320 i | 2012 – present | 1998 | 135 | 184 |
| BMW | 3 Gran Turismo (F34) | 320 i xDrive | 2012 – present | 1998 | 135 | 184 |
| BMW | 3 Gran Turismo (F34) | 325 d | 2012 – present | 1995 | 165 | 224 |
| BMW | 3 Gran Turismo (F34) | 340 i | 2012 – present | 2998 | 265 | 360 |
| BMW | 3 Gran Turismo (F34) | 340 i xDrive | 2012 – present | 2998 | 265 | 360 |
| BMW | 3 Gran Turismo (F34) | 320 i | 2012 – present | 1998 | 120 | 163 |
| BMW | 3 Gran Turismo (F34) | 320 i xDrive | 2012 – present | 1998 | 120 | 163 |
| BMW | 3 Gran Turismo (F34) | 330 d | 2012 – present | 2993 | 190 | 258 |
| BMW | 3 Gran Turismo (F34) | 325 d | 2012 – present | 1995 | 155 | 211 |
| BMW | 3 Gran Turismo (F34) | 320 d | 2012 – present | 1995 | 120 | 163 |
| BMW | 3 Gran Turismo (F34) | 320 i | 2012 – present | 1997 | 135 | 184 |
| BMW | 3 Gran Turismo (F34) | 328 i | 2012 – present | 1997 | 180 | 245 |
| BMW | 3 Gran Turismo (F34) | 335 i | 2012 – present | 2979 | 225 | 306 |
| BMW | 3 Gran Turismo (F34) | 318 d | 2012 – present | 1995 | 105 | 143 |
| BMW | 3 Gran Turismo (F34) | 320 d | 2012 – present | 1995 | 135 | 184 |
| BMW | 3 Gran Turismo (F34) | 320 i xDrive | 2012 – present | 1997 | 135 | 184 |
| BMW | 3 Gran Turismo (F34) | 328 i xDrive | 2012 – present | 1997 | 180 | 245 |
| BMW | 3 Gran Turismo (F34) | 335 i xDrive | 2012 – present | 2979 | 225 | 306 |
| BMW | 3 Gran Turismo (F34) | 320 d xDrive | 2012 – present | 1995 | 135 | 184 |
| BMW | 3 Gran Turismo (F34) | 325 d | 2012 – present | 1995 | 160 | 218 |
| BMW | 3 Gran Turismo (F34) | 330 d xDrive | 2012 – present | 2993 | 190 | 258 |
| BMW | 3 Gran Turismo (F34) | 318 d | 2012 – present | 1995 | 100 | 136 |
| BMW | 3 Gran Turismo (F34) | 335 d xDrive | 2012 – present | 2993 | 230 | 313 |
| BMW | 3 Gran Turismo (F34) | 320 d xDrive | 2012 – present | 1995 | 147 | 200 |
| BMW | 3 Gran Turismo (F34) | 335 i | 2012 – present | 2979 | 240 | 326 |
| BMW | 3 Gran Turismo (F34) | 335 i xDrive | 2012 – present | 2979 | 240 | 326 |
| BMW | 3 Gran Turismo (F34) | 335 i | 2012 – present | 2979 | 250 | 340 |
| BMW | 3 Gran Turismo (F34) | 335 i xDrive | 2012 – present | 2979 | 250 | 340 |
| BMW | 3 Gran Turismo (F34) | 320 d | 2012 – present | 1995 | 147 | 200 |
| BMW | 3 Gran Turismo (F34) | 318 d | 2012 – present | 1995 | 110 | 150 |
| BMW | 3 Gran Turismo (F34) | 320 d | 2012 – present | 1995 | 140 | 190 |
| BMW | 3 Gran Turismo (F34) | 320 d xDrive | 2012 – present | 1995 | 140 | 190 |
| BMW | 3 Gran Turismo (F34) | 320 i | 2012 – present | 1997 | 120 | 163 |
| BMW | 3 Gran Turismo (F34) | 320 i xDrive | 2012 – present | 1997 | 120 | 163 |
