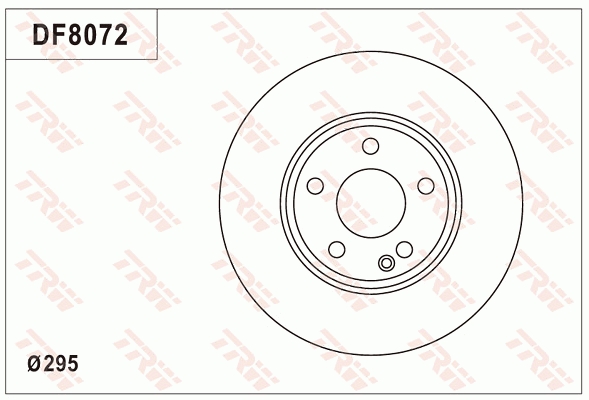

Brake Disc
Braking System

Brake Disc

Part No. DF8072S · SKU DF8072S-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)28
Brake Disc Type Vented
Centering Diameter (mm)67
Height (mm)51.1
Minimum thickness (mm)25.4
Number of Holes 5
Outer Diameter (mm)295
Thread Size 15.3
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 28, Brake Disc Type Vented, Centering Diameter [mm] 67, Height [mm] 51,1, Minimum thickness [mm] 25,4, Number of Holes 5, Outer Diameter [mm] 295, Thread Size 15.3
Fits: MERCEDES-BENZ

Interchangeable Part Numbers

A.B.S.09.B344.41 A.P. 25317V A.P.25317V A.P. 25317X A.P.25317X APECDSK2991 ATE24.0328-0276.1 ATE24012802761 BOSCH 0 986 479A01 BOSCH0986479A01 BREMBO09.B344.4X DELPHIBG4646C DONPCD12232 FEBI BILSTEIN43861 FERODODDF2460C FREMAXBD-0121 FTE9071061 FTE9081305 FTEBS7502 FTEBS7502B HELLA 8DD 355119-591 HELLA8DD355119591 HELLA 8DD 355129-661 HELLA8DD355129661 KAWE 6152210 KAWE6152210 LPRM2083V LPRM2083VR MAGNETI MARELLI360406113201 METELLI23-1439C METZGER6110731 MEYLE0835210011PD OPTIMALBS-9188C OPTIMALBS-9188 SWAG 10 943861 SWAG10943861 TEXTAR92241603 VAICOV30-80096 WOKINGD61522.10

OE Numbers — MERCEDES-BENZ 246 421 01

12

OE Numbers — MERCEDES-BENZ

2464210112 A2464210112
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ A-CLASS (W176) A 200 CDI / d 4-matic (176.002) 2012 – 2018 2143 100 136
MERCEDES-BENZ A-CLASS (W176) A 200 Flex (176.043) 2012 – 2018 1595 115 156
MERCEDES-BENZ A-CLASS (W176) A 180 CDI (176.007) 2012 – 2018 2143 80 109
MERCEDES-BENZ A-CLASS (W176) A 220 d 4-matic (176.005) 2012 – 2018 2143 130 177
MERCEDES-BENZ A-CLASS (W176) A 220 d (176.003) 2012 – 2018 2143 130 177
MERCEDES-BENZ A-CLASS (W176) AMG A 45 4-matic (176.052) 2012 – 2018 1991 280 381
MERCEDES-BENZ A-CLASS (W176) A 250 4-matic (176.051) 2012 – 2018 1991 160 218
MERCEDES-BENZ A-CLASS (W176) A 250 (176.050) 2012 – 2018 1991 160 218
MERCEDES-BENZ A-CLASS (W176) A 160 (176.041) 2012 – 2018 1595 75 102
MERCEDES-BENZ A-CLASS (W176) A 220 4-matic (176.047) 2012 – 2018 1991 135 184
MERCEDES-BENZ A-CLASS (W176) A 220 CDI (176.003) 2012 – 2018 2143 120 163
MERCEDES-BENZ A-CLASS (W176) A 220 CDI 4-matic (176.005) 2012 – 2018 2143 125 170
MERCEDES-BENZ A-CLASS (W176) A 180 (176.042) 2012 – 2018 1595 90 122
MERCEDES-BENZ A-CLASS (W176) A 200 CDI / d (176.008) 2012 – 2018 2143 100 136
MERCEDES-BENZ A-CLASS (W176) A 250 4-matic (176.046) 2012 – 2018 1991 155 211
MERCEDES-BENZ A-CLASS (W176) A 160 CDI / d (176.011) 2012 – 2018 1461 66 90
MERCEDES-BENZ A-CLASS (W176) A 45 AMG 4-matic (176.052) 2012 – 2018 1991 265 360
MERCEDES-BENZ A-CLASS (W176) A 220 CDI (176.003) 2012 – 2018 2143 125 170
MERCEDES-BENZ A-CLASS (W176) A 200 CDI (176.001) 2012 – 2018 1796 100 136
MERCEDES-BENZ A-CLASS (W176) A 180 CDI (176.000) 2012 – 2018 1796 80 109
MERCEDES-BENZ A-CLASS (W176) A 180 CDI / d (176.012) 2012 – 2018 1461 80 109
MERCEDES-BENZ A-CLASS (W176) A 250 (176.044) 2012 – 2018 1991 155 211
MERCEDES-BENZ A-CLASS (W176) A 200 (176.043) 2012 – 2018 1595 115 156
