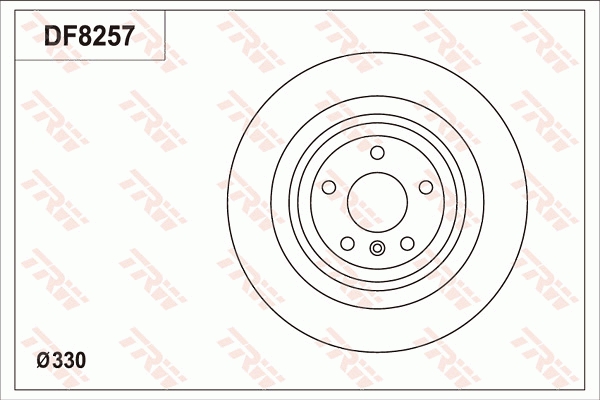

Specifications
| Bolt Hole Circle Ø (mm) | 112 |
| Brake Disc Thickness (mm) | 22 |
| Brake Disc Type Vented | |
| Centering Diameter (mm) | 67 |
| Height (mm) | 54 |
| Minimum thickness (mm) | 19.4 |
| Number of Holes 5 | |
| Outer Diameter (mm) | 330 |
| Thread Size 15.2 | |
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 22, Brake Disc Type Vented, Centering Diameter [mm] 67, Height [mm] 54, Minimum thickness [mm] 19,4, Number of Holes 5, Outer Diameter [mm] 330, Thread Size 15.2
Fits: MERCEDES-BENZ
Fits: MERCEDES-BENZ
Interchangeable Part Numbers
OE Numbers — MERCEDES-BENZ 166 423 01
OE Numbers — MERCEDES-BENZ
OE Numbers — MERCEDES-BENZ 166 423 06
| Make | Model | Type / Engine | Years | CC | kW | HP |
|---|---|---|---|---|---|---|
| MERCEDES-BENZ | M-CLASS (W166) | ML 500 4-matic (166.073) | 2011 – 2015 | 4663 | 300 | 408 |
| MERCEDES-BENZ | M-CLASS (W166) | ML 250 CDI / BlueTEC 4-matic (166.004, 166.003) | 2011 – 2015 | 2143 | 150 | 204 |
| MERCEDES-BENZ | M-CLASS (W166) | ML 350 BlueTEC 4-matic (166.024, 166.023) | 2011 – 2015 | 2987 | 190 | 258 |
| MERCEDES-BENZ | M-CLASS (W166) | ML 350 4-matic (166.057) | 2011 – 2015 | 3498 | 225 | 306 |
| MERCEDES-BENZ | M-CLASS (W166) | ML 63 AMG 4-matic (166.074) | 2011 – 2015 | 5461 | 410 | 558 |
| MERCEDES-BENZ | M-CLASS (W166) | ML 63 AMG 4-matic (166.074) | 2011 – 2015 | 5461 | 386 | 525 |
| MERCEDES-BENZ | M-CLASS (W166) | ML 400 4-matic (166.056) | 2011 – 2015 | 2996 | 245 | 333 |
| MERCEDES-BENZ | M-CLASS (W166) | ML 350 (166.058) | 2011 – 2015 | 3498 | 225 | 306 |
| MERCEDES-BENZ | M-CLASS (W166) | ML 350 CDI 4-matic | 2011 – 2015 | 2987 | 179 | 243 |
| MERCEDES-BENZ | M-CLASS (W166) | ML 320 4-matic (166.062) | 2011 – 2015 | 2996 | 200 | 272 |
| MERCEDES-BENZ | M-CLASS (W166) | ML 300 4-matic (166.055) | 2011 – 2015 | 3498 | 185 | 252 |
| MERCEDES-BENZ | M-CLASS (W166) | ML 300 4-matic (166.055) | 2011 – 2015 | 3498 | 183 | 249 |
