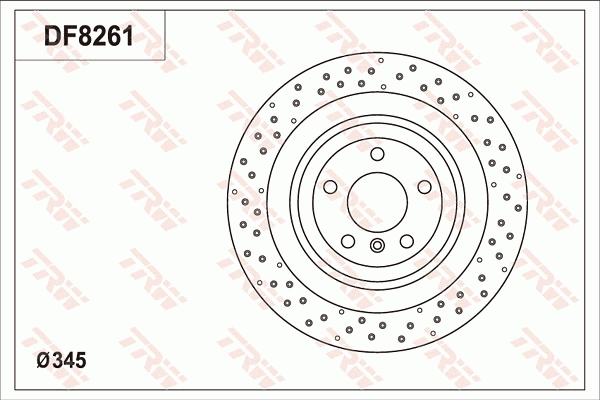

Brake Disc
Braking System

Brake Disc

Part No. DF8261S · SKU DF8261S-TRW
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)22
Brake Disc Type Vented
Centering Diameter (mm)67
Height (mm)54
Minimum thickness (mm)19.4
Number of Holes 5
Outer Diameter (mm)345
Thread Size 15.3
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 22, Brake Disc Type Vented, Centering Diameter [mm] 67, Height [mm] 54, Minimum thickness [mm] 19,4, Number of Holes 5, Outer Diameter [mm] 345, Thread Size 15.3
Fits: MERCEDES-BENZ

Interchangeable Part Numbers

A.B.S.09.A961.21 A.B.S.18255 A.P.25305 V APECDSK3021 ATE24.0122-0297.1 BLUE PRINTADU174385 BOSCH0 986 479 D62 BOSCH0 986 AB5 957 DELPHIBG4699C DELPHIBG5207C FEBI BILSTEIN106606 FERODODDF2209C FERODODDF2209DC-D FREMAXBD-3613 FTE9081347 HELLA8DD 355 126-281 MAGNETI MARELLI360406122801 MINTEXMDC2778C NK3133142 OPEN PARTSBDR2700.20 PAGID55837 SWAG10 10 6606 TEXTAR92283703 TEXTAR92283705 TRISCAN8120 231050C

OE Numbers — MERCEDES-BENZ

166 423 03 12 A1664230312
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ M-CLASS (W166) ML 500 4-matic (166.073) 2011 – 2015 4663 300 408
MERCEDES-BENZ M-CLASS (W166) ML 250 CDI / BlueTEC 4-matic (166.004, 166.003) 2011 – 2015 2143 150 204
MERCEDES-BENZ M-CLASS (W166) ML 350 BlueTEC 4-matic (166.024, 166.023) 2011 – 2015 2987 190 258
MERCEDES-BENZ M-CLASS (W166) ML 350 4-matic (166.057) 2011 – 2015 3498 225 306
MERCEDES-BENZ M-CLASS (W166) ML 63 AMG 4-matic (166.074) 2011 – 2015 5461 410 558
MERCEDES-BENZ M-CLASS (W166) ML 63 AMG 4-matic (166.074) 2011 – 2015 5461 386 525
MERCEDES-BENZ M-CLASS (W166) ML 400 4-matic (166.056) 2011 – 2015 2996 245 333
MERCEDES-BENZ M-CLASS (W166) ML 350 (166.058) 2011 – 2015 3498 225 306
MERCEDES-BENZ M-CLASS (W166) ML 350 CDI 4-matic 2011 – 2015 2987 179 243
MERCEDES-BENZ M-CLASS (W166) ML 320 4-matic (166.062) 2011 – 2015 2996 200 272
MERCEDES-BENZ M-CLASS (W166) ML 300 4-matic (166.055) 2011 – 2015 3498 185 252
MERCEDES-BENZ M-CLASS (W166) ML 300 4-matic (166.055) 2011 – 2015 3498 183 249
