Brake Disc
Braking System

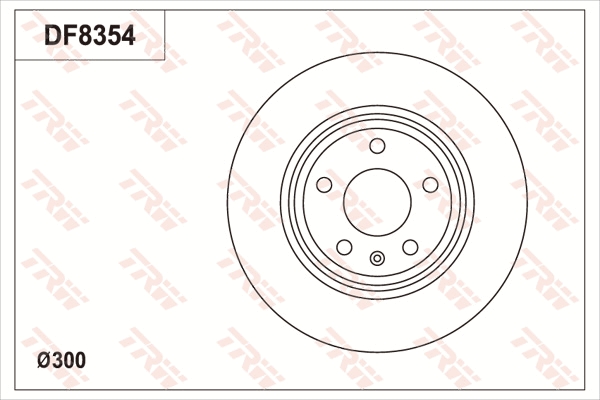

Brake Disc

Part No. DF8354S · SKU DF8354S-TRW
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)12
Brake Disc Type solid
Centering Diameter (mm)68
Height (mm)36.2
Minimum thickness (mm)10
Number of Holes 5
Outer Diameter (mm)300
Thread Size 15.3
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 12, Brake Disc Type solid, Centering Diameter [mm] 68, Height [mm] 36,2, Minimum thickness [mm] 10, Number of Holes 5, Outer Diameter [mm] 300, Thread Size 15.3
Fits: AUDI, AUDI (FAW)

OE Numbers — AUDI 8W0 615 601

C H

OE Numbers — AUDI

8W0615601C 8W0615601H
MakeModelType / Engine YearsCCkWHP
AUDI A5 Sportback (F5A, F5F) 40 TDI Mild Hybrid quattro 2016 – present 1968 150 204
AUDI A5 Sportback (F5A, F5F) 35 TDI 2016 – present 1968 110 150
AUDI A5 Sportback (F5A, F5F) 40 TDI 2016 – present 1968 140 190
AUDI A5 Sportback (F5A, F5F) 40 TDI quattro 2016 – present 1968 140 190
AUDI A5 Sportback (F5A, F5F) 50 TDI quattro 2016 – present 2967 210 286
AUDI A5 Sportback (F5A, F5F) 40 TFSI g-tron 2016 – present 1984 125 170
AUDI A5 Sportback (F5A, F5F) S5 TDI Mild Hybrid quattro 2016 – present 2967 255 347
AUDI A5 Sportback (F5A, F5F) 35 TDI 2016 – present 1968 120 163
AUDI A5 Sportback (F5A, F5F) 30 TDI Mild Hybrid 2016 – present 1968 100 136
AUDI A5 Sportback (F5A, F5F) 40 TFSI Mild Hybrid quattro 2016 – present 1984 150 204
AUDI A5 Sportback (F5A, F5F) 40 TFSI Mild Hybrid 2016 – present 1984 150 204
AUDI A5 Sportback (F5A, F5F) 45 TFSI Mild Hybrid quattro 2016 – present 1984 195 265
AUDI A5 Sportback (F5A, F5F) 45 TDI quattro 2016 – present 2967 170 231
AUDI A5 Sportback (F5A, F5F) 50 TDI Mild Hybrid quattro 2016 – present 2967 210 286
AUDI A5 Sportback (F5A, F5F) 40 TFSI 2016 – present 1984 150 204
AUDI A5 Sportback (F5A, F5F) 40 TFSI quattro 2016 – present 1984 150 204
AUDI A5 Sportback (F5A, F5F) S5 TDI Mild Hybrid quattro 2016 – present 2967 251 341
AUDI A5 Sportback (F5A, F5F) 40 TDI Mild Hybrid 2016 – present 1968 150 204
AUDI A5 Sportback (F5A, F5F) 45 TFSI Mild Hybrid quattro 2016 – present 1984 183 249
AUDI A5 Sportback (F5A, F5F) 45 TFSI quattro 2016 – present 1984 195 265
AUDI A5 Sportback (F5A, F5F) 45 TFSI 2016 – present 1984 185 252
AUDI A5 Sportback (F5A, F5F) 45 TFSI quattro 2016 – present 1984 185 252
AUDI A5 Sportback (F5A, F5F) 40 TFSI 2016 – present 1984 140 190
AUDI A5 Sportback (F5A, F5F) RS5 TFSI quattro 2016 – present 2894 346 470
AUDI A5 Sportback (F5A, F5F) 3.0 TDI quattro 2016 – present 2967 210 286
AUDI A5 Sportback (F5A, F5F) 2.0 TFSI quattro 2016 – present 1984 185 252
AUDI A5 Sportback (F5A, F5F) S5 quattro 2016 – present 2995 260 354
AUDI A5 Sportback (F5A, F5F) 2.0 TDI 2016 – present 1968 140 190
AUDI A5 Sportback (F5A, F5F) 2.0 TDI quattro 2016 – present 1968 140 190
AUDI A5 Sportback (F5A, F5F) 3.0 TDI quattro 2016 – present 2967 160 218
AUDI A5 Sportback (F5A, F5F) 2.0 TFSI quattro 2016 – present 1984 183 249
AUDI A5 Sportback (F5A, F5F) 1.4 TFSI 2016 – present 1395 110 150
AUDI A5 Sportback (F5A, F5F) 3.0 TDI quattro 2016 – present 2967 200 272
AUDI A5 Sportback (F5A, F5F) 3.0 TDI 2016 – present 2967 160 218
AUDI A5 Sportback (F5A, F5F) 2.0 TFSI 2016 – present 1984 140 190
AUDI A5 Sportback (F5A, F5F) 2.0 TFSI g-tron 2016 – present 1984 125 170
AUDI A5 Sportback (F5A, F5F) 2.0 TFSI 2016 – present 1984 185 252
AUDI A5 Sportback (F5A, F5F) 2.0 TDI 2016 – present 1968 110 150
AUDI A5 Sportback (F5A, F5F) 2.0 TDI quattro 2016 – present 1968 110 150
AUDI A5 Sportback (F5A, F5F) 2.0 TDI 2016 – present 1968 100 136
AUDI A5 Sportback (F5A, F5F) 40 TFSI Mild Hybrid 2016 – present 1984 140 190
AUDI A5 Sportback (F5A, F5F) 2.0 TFSI Mild Hybrid 2016 – present 1984 185 252
AUDI A5 Sportback (F5A, F5F) 2.0 TFSI Mild Hybrid quattro 2016 – present 1984 185 252
AUDI A5 Sportback (F5A, F5F) 35 TFSI Mild Hybrid 2016 – present 1984 110 150
AUDI A5 Sportback (F5A, F5F) 45 TFSI Mild Hybrid 2016 – present 1984 180 245
AUDI A5 Sportback (F5A, F5F) RS5 quattro 2016 – present 2894 331 450
AUDI A5 Sportback (F5A, F5F) 45 TFSI Mild Hybrid quattro 2016 – present 1984 180 245
